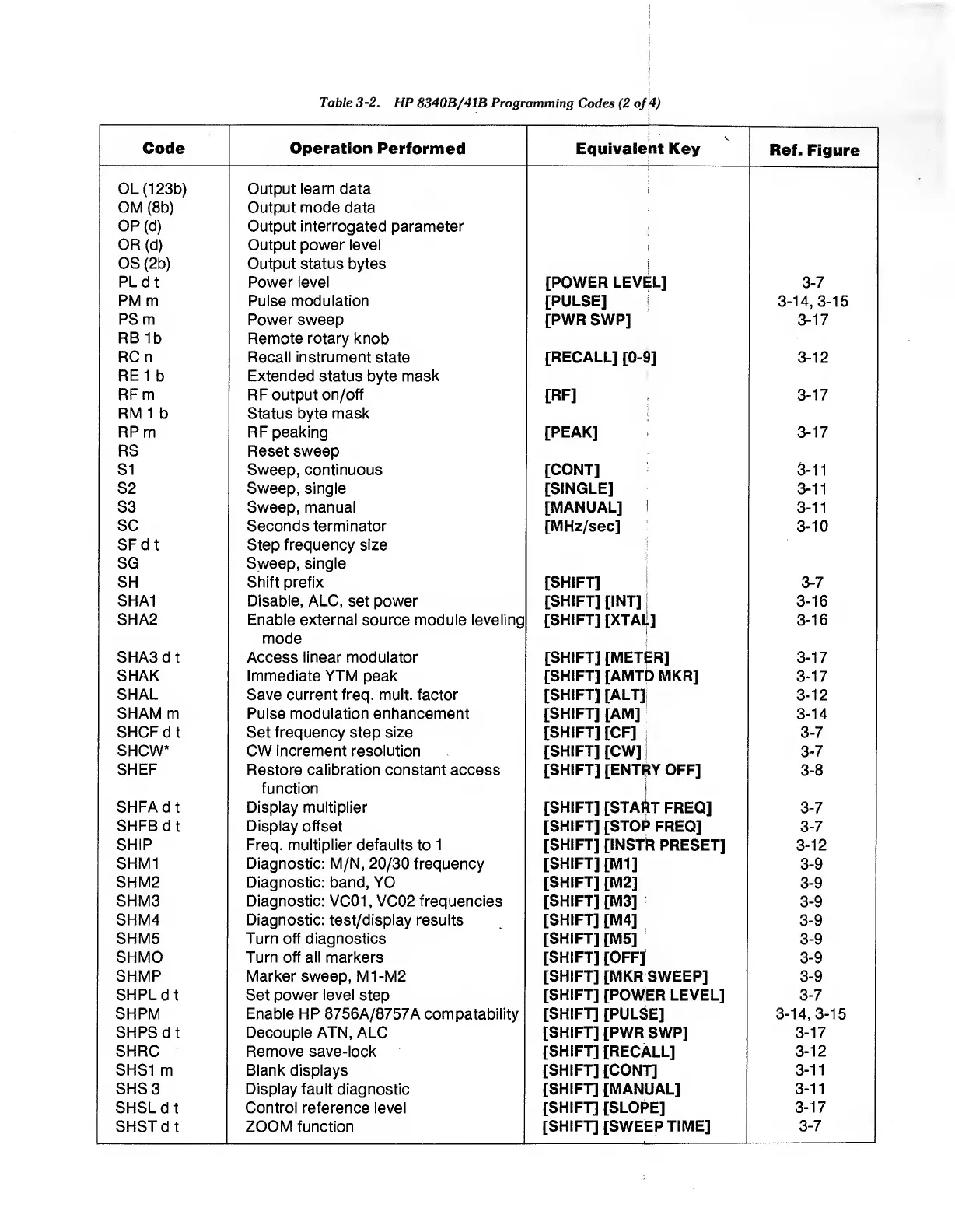

Table 3-2. HP 8340B/41B Programming Codes (2 of 4)
Code Operation Performed
V
Equivalent Key
Ref. Figure
OL (123b) Output learn data
OM (8b) Output mode data
OP (d)
Output interrogated parameter
OR (d) Output power level
OS (2b) Output status bytes
PL d t
Power level
[POWER LEVEL] 3-7
PM m Pulse modulation
[PULSE] 3-14, 3-15
PS m
Power sweep
[PWR SWP] 3-17
RB 1b
Remote rotary knob
RCn
Recall instrument state [RECALL] [0-9] 3-12
RE 1 b
Extended status byte mask
RF m
RF output on/off [RF] 3-17
RM 1 b
Status byte mask
RP m RF peaking [PEAK] 3-17
RS Reset sweep
SI Sweep, continuous [CONT]
3-11
S2
Sweep, single [SINGLE]
3-11
S3 Sweep, manual [MANUAL]
3-11
SC Seconds terminator
[MHz/sec]
3-10
SFdt
Step frequency size
SG Sweep, single
SH Shift prefix [SHIFT] 3-7
SHA1 Disable, ALC, set power [SHIFT] [INT]
3-16
SHA2
Enable external source module leveling
[SHIFT] [XTAli]
3-16
mode
!
SHA3d t Access linear modulator
[SHIFT] [METER]
3-17
SHAK Immediate YTM peak [SHIFT] [AMTD MKR]
3-17
SHAL Save current freq. mult, factor
[SHIFT] [ALT]
3-12
SHAM m Pulse modulation enhancement rSHIFTl TAM1 3-14
SHCFdt Set frequency step size
[SHIFT] [CF]
3-7
SHOW*
CW increment resolution [SHIFT] [CW]
3-7
SHEF
Restore calibration constant access
[SHIFT] [ENTRY OFF]
3-8
function
|
SHFAdt Display multiplier [SHIFT] [START FREQ] 3-7
SHFBdt Display offset
[SHIFT] [STOf^ FREQ] 3-7
SHIP
Freq. multiplier defaults to 1 [SHIFT] [INSTR PRESET] 3-12
SHM1
Diagnostic: M/N, 20/30 frequency
[SHIFT] [Ml]
3-9
SHM2
Diagnostic: band, YO
TSHIFT] [M2]
3-9
SHM3
Diagnostic: VC01, VC02 frequencies
[SHIFT] [M3]
3-9
SHM4
Diagnostic: test/display results
[SHIFT] [M4]
3-9
SHM5 Turn off diagnostics
[SHIFT] [M5j
3-9
SHMO Turn off all markers
[SHIFT] [OFF]
3-9
SHMP Marker sweep, Ml-M2 [SHIFT] [MKR SWEEP]
3-9
SHPLdt Set power level step
[SHIFT] [POWER LEVEL] 3-7
SHPM Enable HP 8756A/8757A compatability [SHIFT] [PULSE]
3-14, 3-15
SHPSdt Decouple ATN, ALC
[SHIFT] [PWR SWP] 3-17
SHRC Remove save-lock [SHIFT] [RECALL]
3-12
SHS1 m
Blank displays
[SHIFT] [CONT] 3-11
SHS 3 Display fault diagnostic
[SHIFT] [MANUAL] 3-11
SHSLdt
Control reference level
[SHIFT] [SLOPE]
3-17
SHSTdt
ZOOM function
[SHIFT] [SWEEP TIME]
3-7
