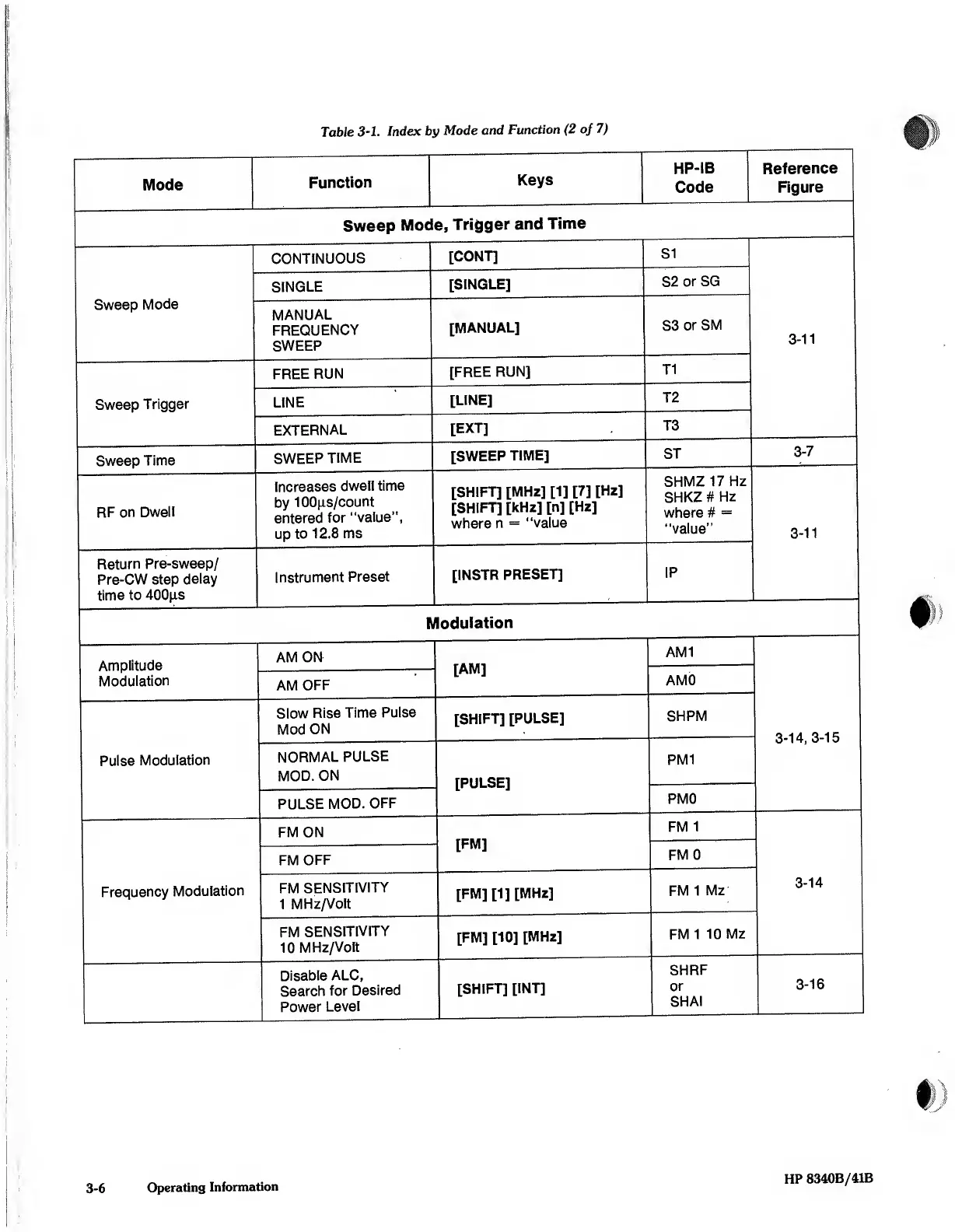

Table 3-1. Index by Mode and Function (2 of 7)
Mode
Function
Keys
HP-IB
Code
Reference
Figure
Sweep Mode, Trigger and Time
CONTINUOUS
[CONT]
si
SINGLE
[SINGLE]
S2 or SG
Sweep Mode
MANUAL
FREQUENCY
SWEEP
[MANUAL]
S3 or SM
3-11
FREE RUN
[FREE RUN]
T1
Sweep Trigger
LINE
[LINE]
T2
EXTERNAL
[EXT]
T3
Sweep Time
SWEEP TIME
[SWEEP TIME]
ST
3-7
RF on Dwell
Increases dwell time
by lOOps/count
entered for “value",
up to 12.8 ms
[SHIFT] [MHz] [1] [7] [Hz]
[SHIFT] [kHz] [n] [Hz]
where n = “value
SHMZ 17 Hz
SHKZ# Hz
where # =
“value”
3-11
Return Pre-sweep/
Pre-CW step delay
time to 400ps
Instrument Preset
[INSTR PRESET]
IP
Modulation
Amplitude
Modulation
AM ON
[AM]
AMI
AM OFF
AMO
Slow Rise Time Pulse
Mod ON
[SHIFT] [PULSE]
SHPM
3-14, 3-15
Pulse Modulation
NORMAL PULSE
MOD. ON
[PULSE]
PM1
PULSE MOD. OFF
PMO
FM ON
FM 1
FM OFF
[FM]
FM 0
Frequency Modulation
FM SENSITIVITY
1 MHz/Volt
[FM] [1] [MHz]
FM 1 Mz
3-14
FM SENSITIVITY
10 MHz/Volt
[FM] [10] [MHz]
FM 1 10 Mz
Disable ALC,
Search for Desired
Power Level
[SHIFT] [INT]
SHRF
or
SHAI
3-16
3-6
Operating Information
HP 8340B/41B
