DRAFT 49
Operation and Service Manual
Parts and Service

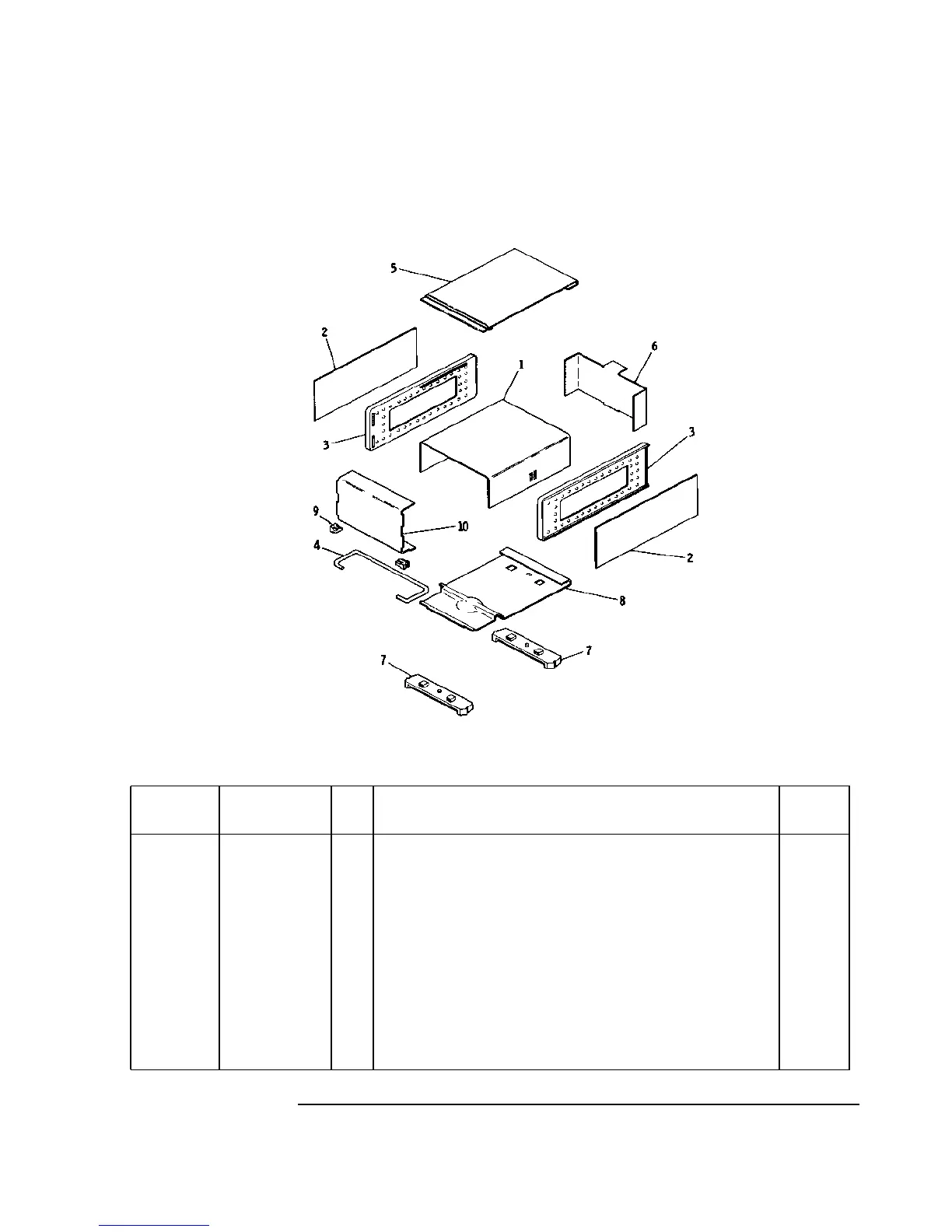

Figure 11 HP 8447D/E/F Cabinet Parts
Index
Number
Part Number CD Description Qty
1 08447-0029 4 Deck, main 1
2 5000-7891 8 Side cover, blue gray
2 5000-8766 8 Side cover, olive gray 2
3 5060-0247 0 Frame assembly 2
4 1490-0031 7 Stand, tilt 1
5 5060-0708 8 Top cover, blue gray
5 5060-8553 7 Top cover, olive gray 1
6 08447-00050 0 Panel, rear 1
7 5060-0727 1 Foot assembly 2
8 5000-0710 6 Bottom Cover, blue gray
