3.

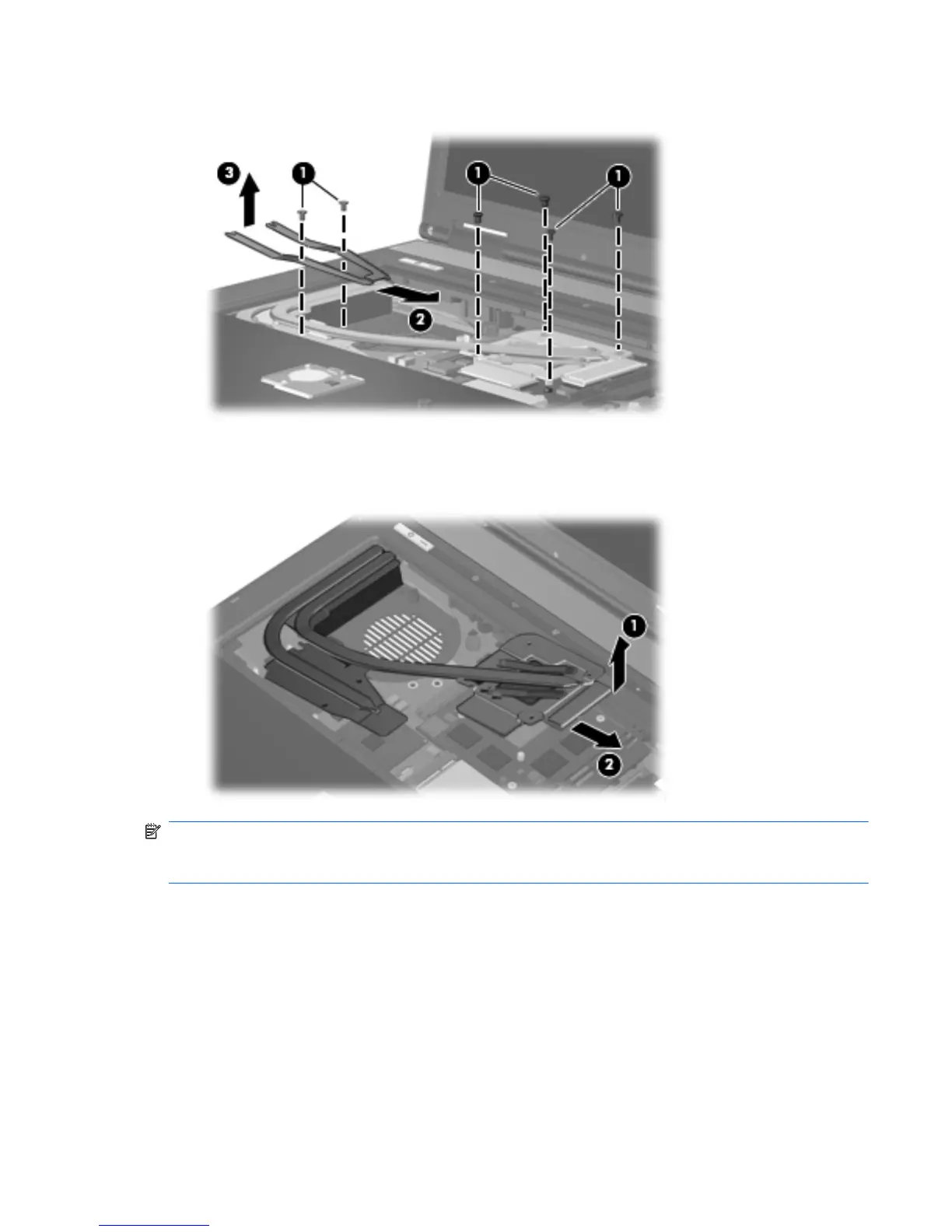

Remove the heat sink retention clip (3).
4. Lift the right side of the heat sink (1) to disengage it from the graphics card.
5. Remove the heat sink (2) by sliding it to the right.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1) and
(3), the processor (2), and graphics system component (4) each time the heat sink is removed.
Thermal material is included with all heat sink and processor spare part kits.
Component replacement procedures
65
