h. Heat sink (see Heat sink on page 81)
i. Modem module (see
Modem module on page 63)
j. System board (see
System board on page 88)

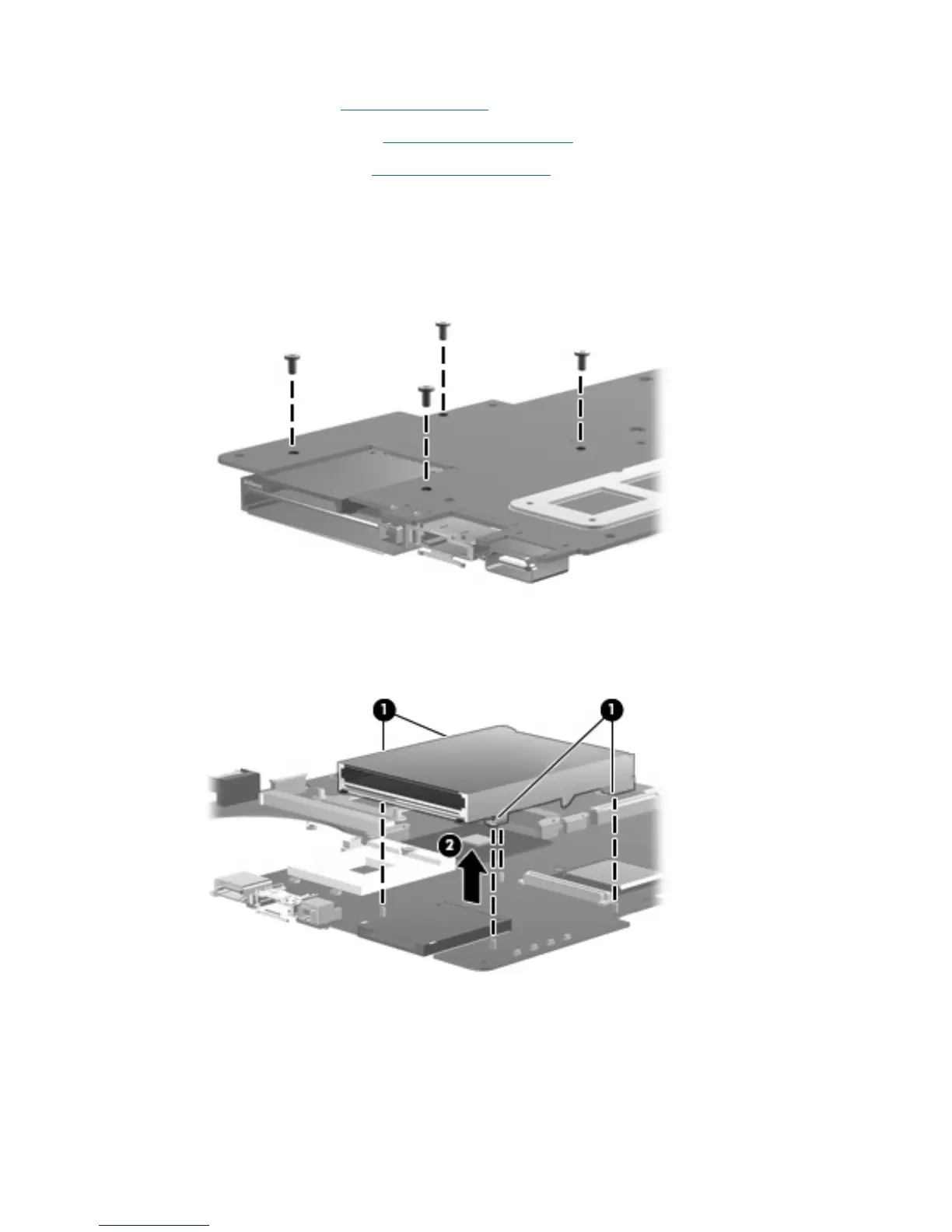

Remove the ExpressCard assembly:
1. Turn the system board upside-down, with the front toward you.
2. Remove the four Phillips PM2.0×5.0 screws that secure the ExpressCard assembly to the system
board.
3. Detach the slots on the ExpressCard assembly from the tabs on the ExpressCard connector (1).
4. Remove the ExpressCard assembly (2).
Reverse this procedure to install the ExpressCard assembly.
Component replacement procedures 93
