HP 8642A Operation And Calibration Manual

Model 8642A/B
Operation

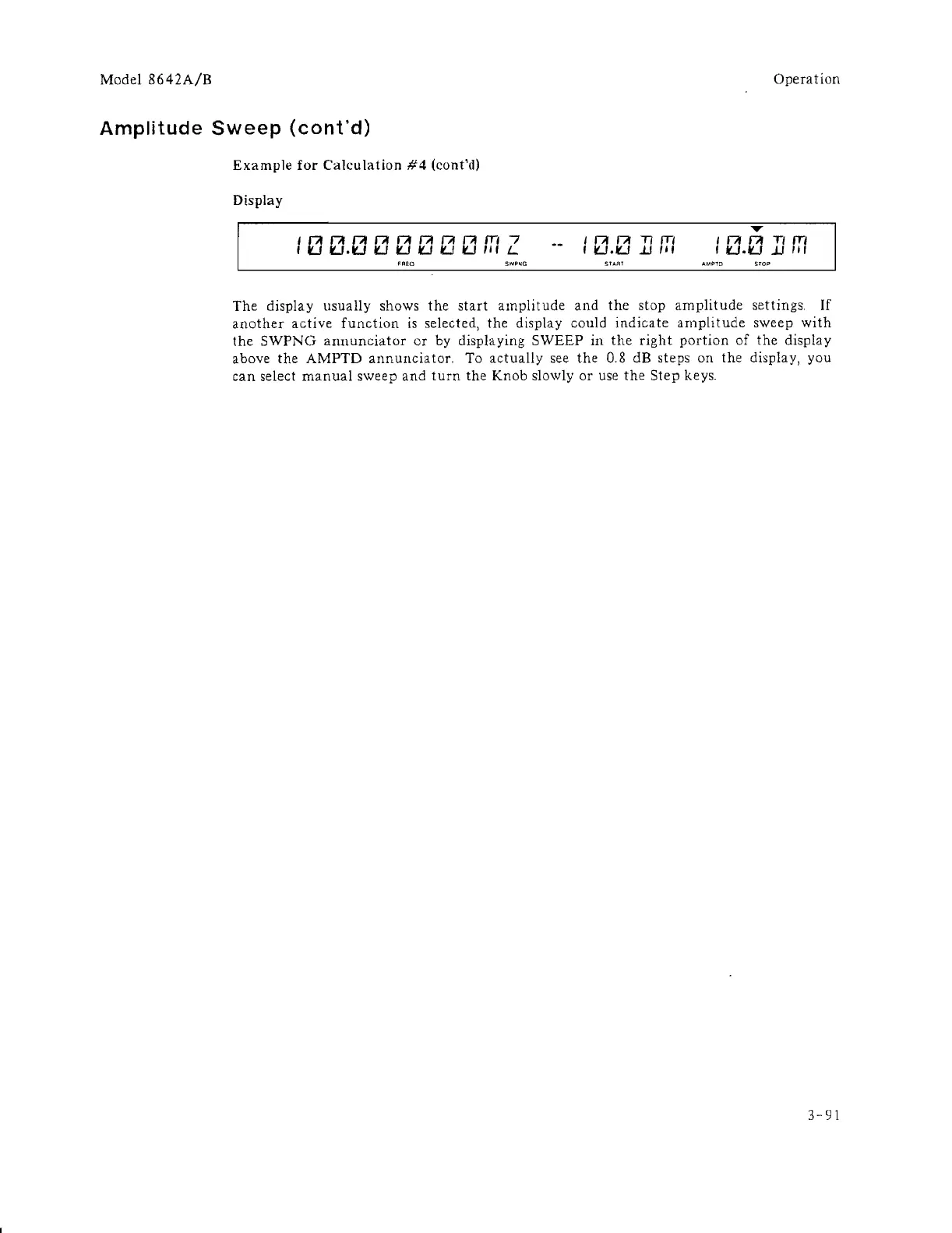

Amplitude Sweep (cont'd)
Example for Calculation #4 (cant'll)
Display
/ '" '" '" '" '" '" '" '" m 7
, tJ tJ. tJ tJ tJ tJ tJ tJ , I, L.
FREO SWP~G
/ '" '" TI m
, tJ.tJ jJ ,I,
SlMH
.....
/ '" '" T/ m
, tJ.tJ jJ III
AMPTD STOP
The display usually shows the start amplitude and the stop amplitude settings If
another active function is selected, the display could indicate amplitude sweep with
the SWPNG anllunciator or by displaying SWEEP in the right portion of the display
above
the AMPTD annunciator. To actually see the 0.8 dB steps on the display, you
can select manual sweep and turn the Knob slowly or use the Step keys.
3-91
