HP 8642A Operation And Calibration Manual

r
Model 8642A/B
Description
Procedures
INCR SET
Operation

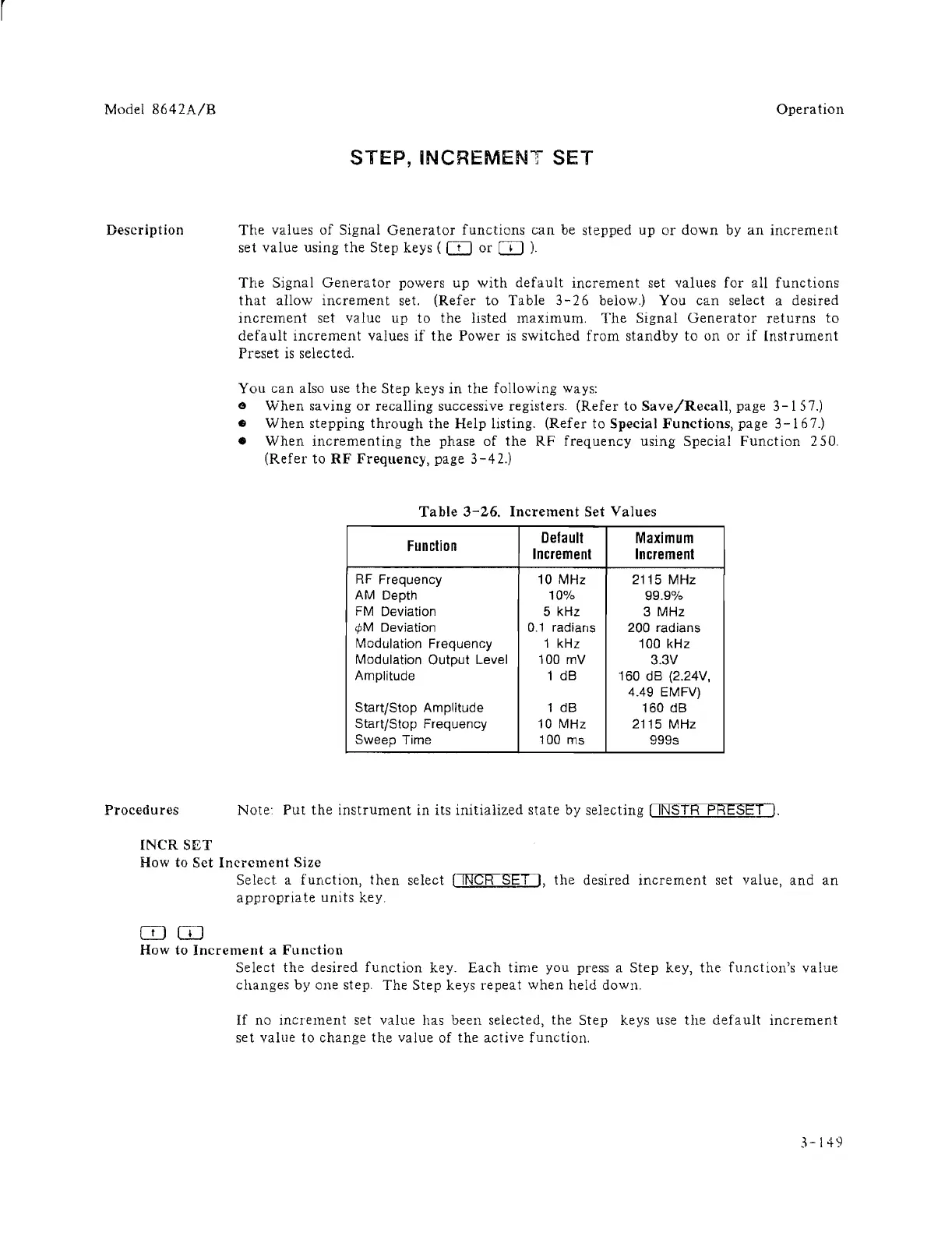

STEP, iNCREMENT SET
The values of Signal Generator functions can be stepped up or down by an increment
set value using the Step keys ( OJ or CO ).
The Signal Generator powers up with default increment set values for all functions
that allow increment set. (Refer to Table 3-26 below.) You can select a desired
increment set value up to the listed maximum. The Signal Generator returns to
default increment values if the Power is switched from standby to on or if Instrument
Preset is selected.
You can also use the Step keys in the following ways:
G When saving or recalling successive registers. (Refer to Save/Recall, page 3 -157.)
• When stepping through the Help listing. (Refer to Special Functions, page 3 -16 7.)
• When incrementing the phase of the RF frequency using Special Function 250.
(Refer to RF Frequency, page 3-42.)
Table 3-26. Increment Set Values
Function
Default
Maximum
Increment Increment
RF Frequency
10 MHz 2115 MHz
AM Depth 10%
99.9%
FM Deviation
5 kHz
3 MHz
¢M Deviation
0.1 radians
200 radians
Modulation Frequency 1 kHz
100 kHz
Modulation Output Level 100
rnV
3.3V
Arnplitude 1 dB
160
dB (2.24V,
4.49 EMFV)
Start/Stop Amplitude 1 dB
160 dB
Start/Stop Frequency 10 MHz 2115 MHz
Sweep Time 100 ms
999s
Note: Put the instrument in its initialized state by selecting [ INSTR PRESEI ).
How to Set Increment Size
CD CD
Select a function, then select ( INcR SET J, the desired increment set value, and an
appropria te units key
How to Increment a Function
Select the desired function key. Each time you press a Step key, the function's value
changes by one step. The Step keys repeat when held down.
If no increment set value has been selected, the Step keys use the default increment
set value to change the value of the active function.
3-149
