Model 8642A/B
Operation
Modulation, AM (cont'd)

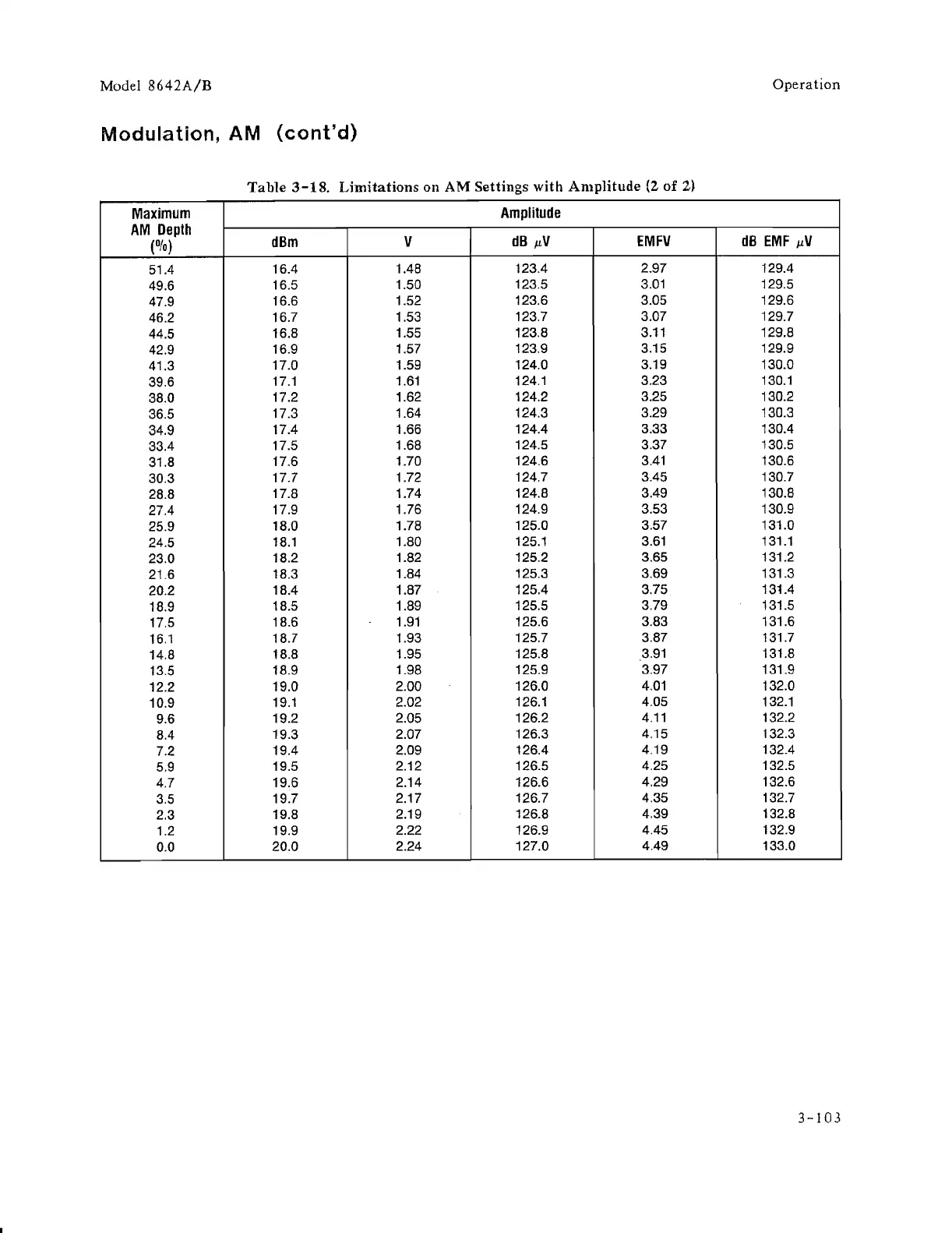

Table 3-18. Limitations on AM Settings with Amplitude {2 of 2)
Maximum
Amplitude
AM Depth
dBm
V dB /-LV
EMFV dB EMF /-LV
(Ufo)
51.4
16.4 1.48
123.4 2.97 129.4
49.6
16.5
1.50
123.5
3.01 129.5
47.9
16.6
1.52
123.6
3.05 129.6
46.2
16.7 1.53
123.7
3.07
129.7
44.5
16.8
1.55
123.8 3.11 129.8
42.9
16.9 1.57
123.9
3.15 129.9
41.3
17.0 1.59
124.0
3.19 130.0
39.6
17.1
1.61
124.1
3.23
130.1
38.0
17.2
1.62 124.2
3.25 130.2
36.5
17.3
1.64
124.3
3.29 130.3
34.9
17.4 1.66
124.4
3.33 130.4
33.4
17.5
1.68
124.5 3.37
130.5
31.8
17.6
1.70
124.6
3.41 130.6
30.3
17.7 1.72
124.7
3.45 130.7
28.8
17.8 1.74
124.8 3.49 130.8
27.4
17.9
1.76
124.9 3.53 130.9
25.9
18.0
1.78
125.0
3.57 131.0
24.5
18.1
1.80
125.1 3.61
131.1
23.0
18.2
1.82 125.2
3.65 131.2
21.6
18.3
1.84
125.3 3.69 131.3
20.2
18.4 1.87
125.4
3.75 131.4
18.9
18.5 1.89
125.5
3.79 131.5
17.5
18.6
1.91
125.6 3.83 131.6
16.1
18.7 1.93
125.7
3.87 131.7
14.8
18.8
1.95
125.8
3.91 131.8
13.5
18.9
1.98 125.9
3.97 131.9
12.2
19.0
2.00
126.0 4.01 132.0
10.9
19.1
2.02 126.1
4.05 132.1
9.6
19.2
2.05
126.2
4.11 132.2
8.4
19.3 2.07
126.3
4.15 132.3
7.2
19.4 2.09
126.4
4.19 132.4
5.9
19.5
2.12
126.5 4.25 132.5
4.7
19.6 2.14
126.6
4.29 132.6
3.5
19.7
2.17 126.7
4.35 132.7
2.3
19.8
2.19
126.8 4.39 132.8
1.2
19.9 2.22
126.9
4.45 132.9
0.0
20.0
2.24
127.0
4.49
133.0
3-103
