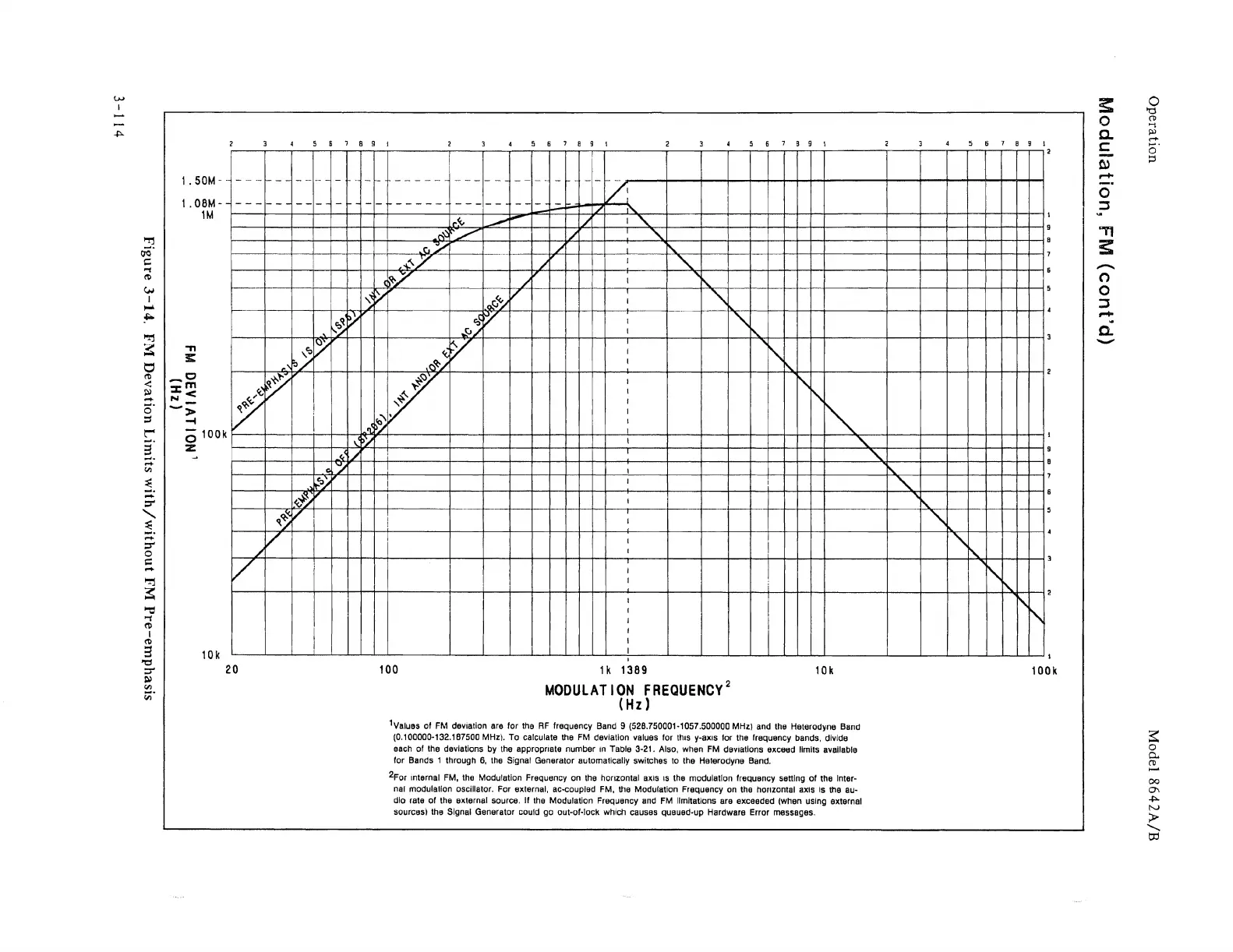

MODULATION FREQUENCy2
(Hz)
10k
lValuB. of FM deviation are for the RF frequency Sand 9 (526.750001-1057.500000 MHzl and Ih. Heterodyne Sand
(0.100000-132.167500 MHzl. To calculate the FM deviation values for th.s y-ax ••
lor the frequency band •. divide
each of the deviations
by the appropriate number In Table 3-21. Also, when FM deviations exceed limits available
for Bands 1 through
6, the Signal Generator automatically switches to the Heterodyne Band.
2For mternal FM. the Modulation Frequency on the honzontal
aXiS 15 the modulation frequency setting of the Inter-
nal modulation oscillator. For external, ae-couplad FM. the Moduiatlon Frequency on the hOrizontal
aXIS IS the au~
dlo rate of the Bxternal source. If the Modulatlon Frequency and FM limitations are exceeded (when uSing external
sources) the Signal Generator could go
out-of~lock which causes queued-up Hardware Error messages.
