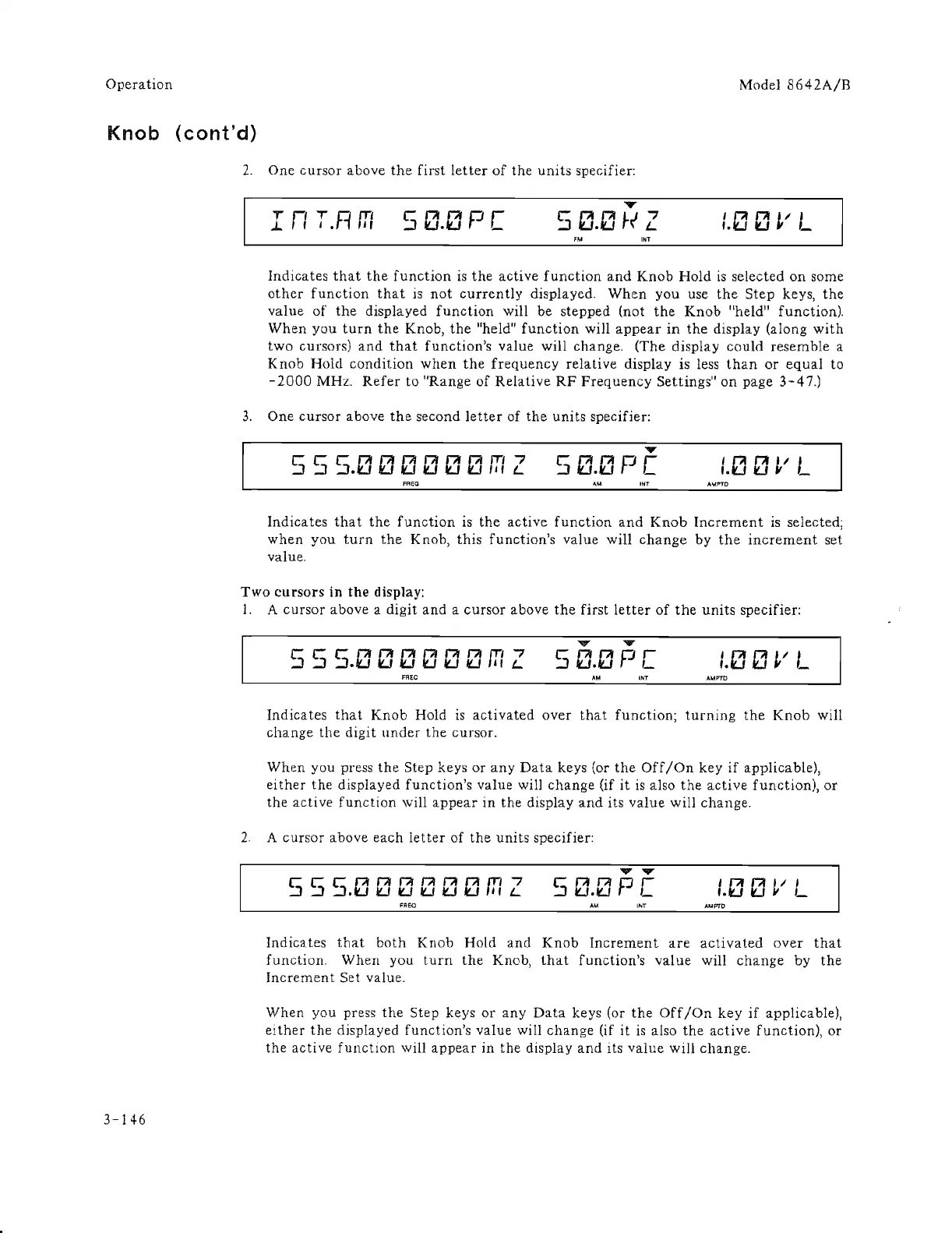

Operation
Model
8642A/B
Knob
(cont'd)
3-146
2.
One
cursor
above
the
first
letter
of
the
units
specifier:
.....
In
LR
m
50.0
P [
50.0
hi
Z
1.00 V l
FM
INT
Indicates
that
the
function
is
the
active
function
and
Knob
Hold
is
selected
on
some
other
function
that
is
not
currently
displayed.
When
you
use
the
Step
keys,
the
value
of
the
displayed
function
will be stepped (not
the
Knob
"held" function).
When
you
turn
the
Knob,
the
"held"
function
will
appear
in
the
display (along
with
two
cursors)
and
that
function's
value will change. (The display
could
resemble
a
Knob
Hold
condition
when
the
frequency
relative
display is less
than
or
equal
to
-2000
MHz.
Refer
to
"Range
of
Relative
RF
Frequency
Settings"
on
page
3-47.)
3.
One
cursor
above
the
second
letter
of
the
units
specifier:
.....
5 5 5.0 0 0 0 0 0 m z
50.0
P [
1.00 V l
FREQ
,.
INT
AYPTD
Indicates
that
the
function
is
the
active
function
and
Knob
Increment
is
selected;
when
you
turn
the
Knob,
this
function's
value
will
change
by
the
increment
set
value.
Two
cursors
in the display:
1.
A
cursor
above
a
digit
and
a
cursor
above
the
first
letter
of
the
units
specifier:
...,..
.....
5 5 5.0 0 0 0 0 0 m Z
50.0
P [
1.00 V L
FREe
,.
'"1'1'0
Indicates
that
Knob
Hold
is
activated
over
that
function;
turning
the
Knob
will
change
the
digit
under
the
cursor.
When
you press
the
Step keys
or
any
Data
keys (or
the
Off
IOn
key
if
applicable),
either
the
displayed
function's
value will
change
(if
it
is
also
the
active
function),
or
the
active
function
will
appear
in
the
display
and
its
value
will
change.
2.
A
cursor
above
each
letter
of
the
units
specifier:
..........
5 5 5.0 0 0 0 0 0 m z
50.0P[
1.00 V L
FREO
INT
AMPTO
Indicat.es
that
both
Knob
Hold
and
Knob
Increment
are
activated
over
that
function.
When
you
turn
the
Knob,
that
function's
value
will
change
by
the
Increment
Set value.
When you press
the
Step keys
or
any
Data
keys (or
the
Off
IOn
key
if
applicable),
either
the
displayed
function's
value
will
change
(if
it
is
also
the
active
function),
or
the
active
function
will
appear
in
the display
and
its
value
will
change.
