Model 8642A/B
Operation
Special Functions (cont'd)

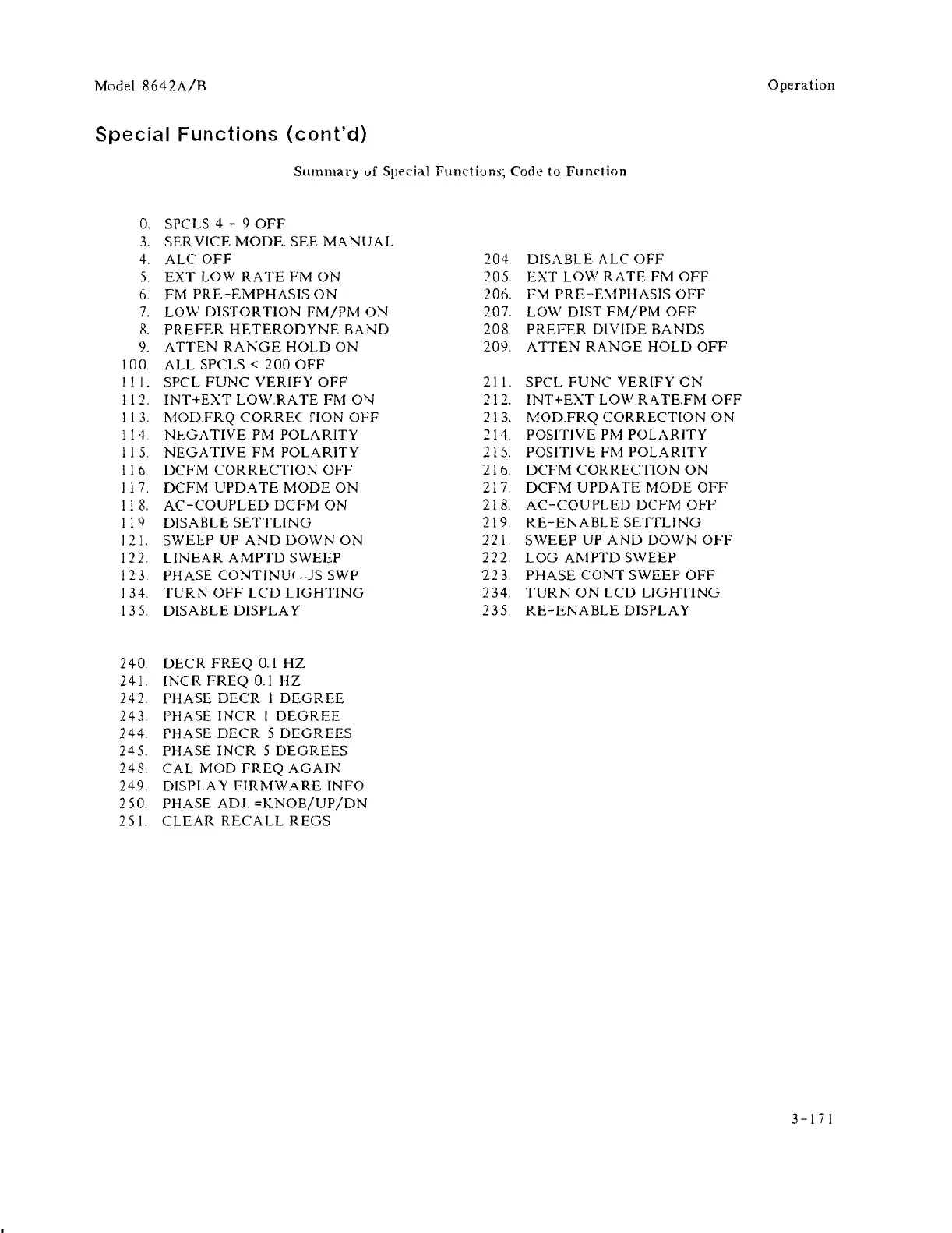

Summary uf Special Flinctiun,,; Code tu Function
O.
SPCLS 4 - 9 OFF
3.
SERVICE MODE. SEE MANUAL
4. ALC OFF 204
DISABLE ALC OFF
5. EXT LOW RATE FM ON
205. EXT LOW RATE FM OFF
6.
FM PRE-EMPHASIS ON 206. FM PRE-El\tPHASIS OFF
7. LOW DISTORTION PM/PM ON
207. LOW DIST FM/PM OFF
8. PREFER HETERODYNE BAND
208 PREFER DIVIDE BANDS
9. ATTEN RANGE HOLD ON 209. A TTEN RANGE HOLD OFF
100. ALL SPCLS <: 200 OFF
1 I I.
SPCL FUNC VERIFY OFF 211. SPCL FUNC VERIFY ON
112. INT+EXT LOW.RA TE FM O'l 212.
INT+EXT LOW.RATE.FM OFF
1 I 3.
MOD.FRQ CORR£( nON OfF 213.
MOD.FRQ CORRECTION ON
114 Nt:GATIVE PM POLARITY 214. POSITIVE PM POLARITY
1 J 5. NEGATIVE FM POLARITY
215.
POSITIVE
FM POLARITY
116
DCFM CORRECTION OFF 216. DCFM CORRECTION ON
J 17. DCFM UPDATE MODE ON
217.
DCFM UPDATE MODE OFF
11 S.
AC-COUPLED DCFM ON 218.
AC-COUPLED DCFM OFF
11 t)
DISABLE SETTLING 219
RE-ENABLE SETTLING
121.
SWEEP UP
AND DOWN ON 221. SWEEP UP AND DOWN OFF
J 22. LINEAR AMPTD SWEEP 222. LOG AMPTD SWEEP
123
PHASE CONTINU( .. JS SWP 223.
PHASE CONT SWEEP OFF
J 34. TURN OFF LCD LIGHTING
234.
TURN ON LCD LIGHTING
135. DISABLE DISPLAY 235
RE-ENABLE DISPLAY
240.
DECR FREQ 0.1 HZ
241.
[NCR f"REQ 0.1 HZ
242. PHASE DECR 1 DEGREE
243. PHASE INCR I DEGREE
244. PHASE DECR 5 DEGREES
245. PHASE INCR 5 DEGREES
248. CAL MOD FREQ AGAIN
249. DISPLA Y FIRMWARE INFO
250. PHASE ADJ. =KNOB/UP/DN
251.
CLEAR RECALL REGS
