Model
8642A/B
General
Information

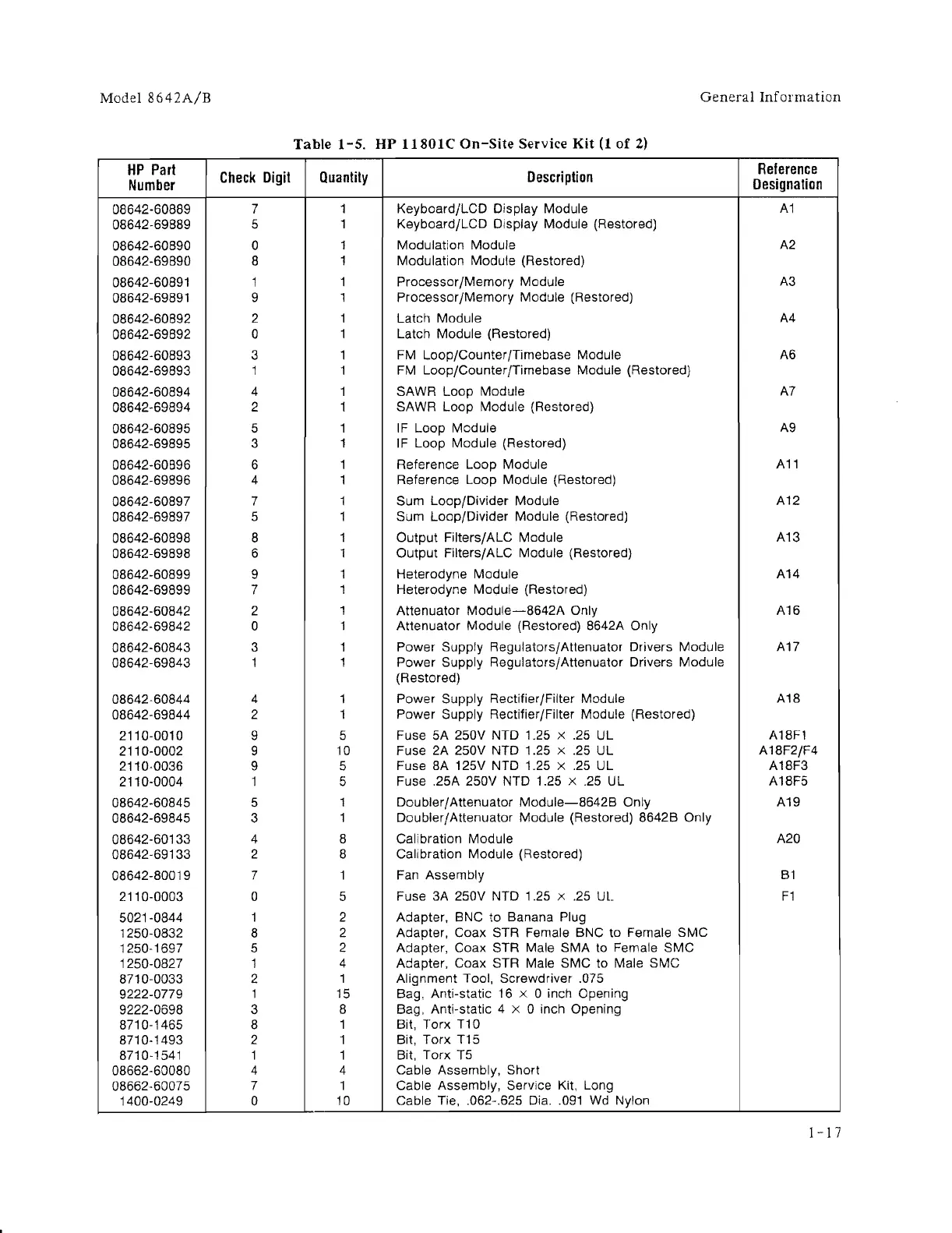

Table
1-5.
HP
11801C
On-Site
Service
Kit
(1
of
2)
HP
Part
Check
Digit
Quantitv
Description
Reference
Number
Designation
08642-60889
7
1 Keyboard/LCD Display Module
A1
08642-69889
5
1 Keyboard/LCD Display Module (Restored)
08642-60890 0
1 Modulation Module
A2
08642-69890 8
1 Modulation Module (Restored)
08642-60891 1
1
Processor/Memory Module
A3
08642-69891
9
1
Processor/Memory Module (Restored)
08642-60892
2 1
Latch Module
A4
08642-69892
0
1 Latch Module (Restored)
08642-60893
3 1
FM
Loop/Counter/Tirnebase Module A6
08642-69893
1 1
FM
Loop/Counter/Tirnebase Module (Restored)
08642-60894
4 1
SAWR Loop Module
A7
08642-69894
2 1
SAWR Loop Module (Restored)
08642-60895 5
1
IF
Loop Module
A9
08642-69895 3
1
IF
Loop Module (Restored)
08642-60896
6
1
Reference
Loop
Module
A11
08642-69896
4
1
Reference
Loop
Module (Restored)
08642-60897
7 1
Sum Loop/Divider Module
A12
08642-69897
5 1
Sum Loop/Divider Module (Restored)
08642-60898 8
1 Output Filters/ALC Module
A13
08642-69898
6
1
Output Filters/ALC Module (Restored)
08642-60899 9
1 Heterodyne Module
A14
08642-69899 7
1 Heterodyne Module (Restored)
08642-60842
2
1 Attenuator
Module-8642A
Only A16
08642-69842 0
1
Attenuator Module (Restored) 8642A Only
08642-60843 3
1
Power Supply RegulatorsjAttenuator Drivers Module A17
08642-69843 1
1
Power Supply RegulatorsjAttenuator Drivers Module
(Restored)
08642-60844
4
1
Power Supply Rectifier/Filter Module
A18
08642-69844 2 1
Power Supply Rectifier/Filter Module (Restored)
2110-0010 9
5
Fuse 5A
250V NTD 1.25 x
.25
UL
A18F1
2110-0002 9
10
Fuse 2A 250V NTD 1.25 x .25 UL A18F2/F4
2110·0036
9 5
Fuse 8A 125V NTD 1.25 x
.25
UL A18F3
2110-0004 1 5
Fuse .25A 250V NTD 1.25 x .25 U L A18F5
08642-60845 5
1 Doubler/Attenuator
Module-8642B
Only A19
08642-69845 3
1
Doubler/Attenuator Module (Restored) 8642B
Only
08642-60133 4 8
Calibration Module
A20
08642-69133
2 8
Calibration Module (Restored)
08642-80019
7
1
Fan
Assembly
B1
2110-0003 0 5
Fuse 3A 250V NTD 1.25 x .25 UL
F1
5021-0844 1
2 Adapter. BNC
to
Banana Plug
1250-0832 8
2
Adapter, Coax
STR Female BNC to Female SMC
1250-1697 5
2 Adapter, Coax STR Male SMA to Female SMC
1250-0827 1
4 Adapter, Coax STR Male SMC to Male SMC
8710-0033 2
1 Alignment Tool. Screwdriver .075
9222-0779
1 15
Bag. Anti-static 16 x 0 inch Opening
9222-0698
3
8
Bag, Anti-static 4 x 0 inch Opening
8710-1465 8
1 Bit. Torx T10
8710-1493
2 1
Bit.
Torx
T15
8710-1541 1 1
Bit,
Torx
T5
08662-60080
4 4
Cable Assernbly. Short
08662·60075
7 1
Cable Assembly. Service Kit, Long
1400-0249
0
10
Cable Tie, .062-.625
Dia
..
091
Wd
Nylon
1-17
To Next Page
