Model 8642A/B
Performance Tests

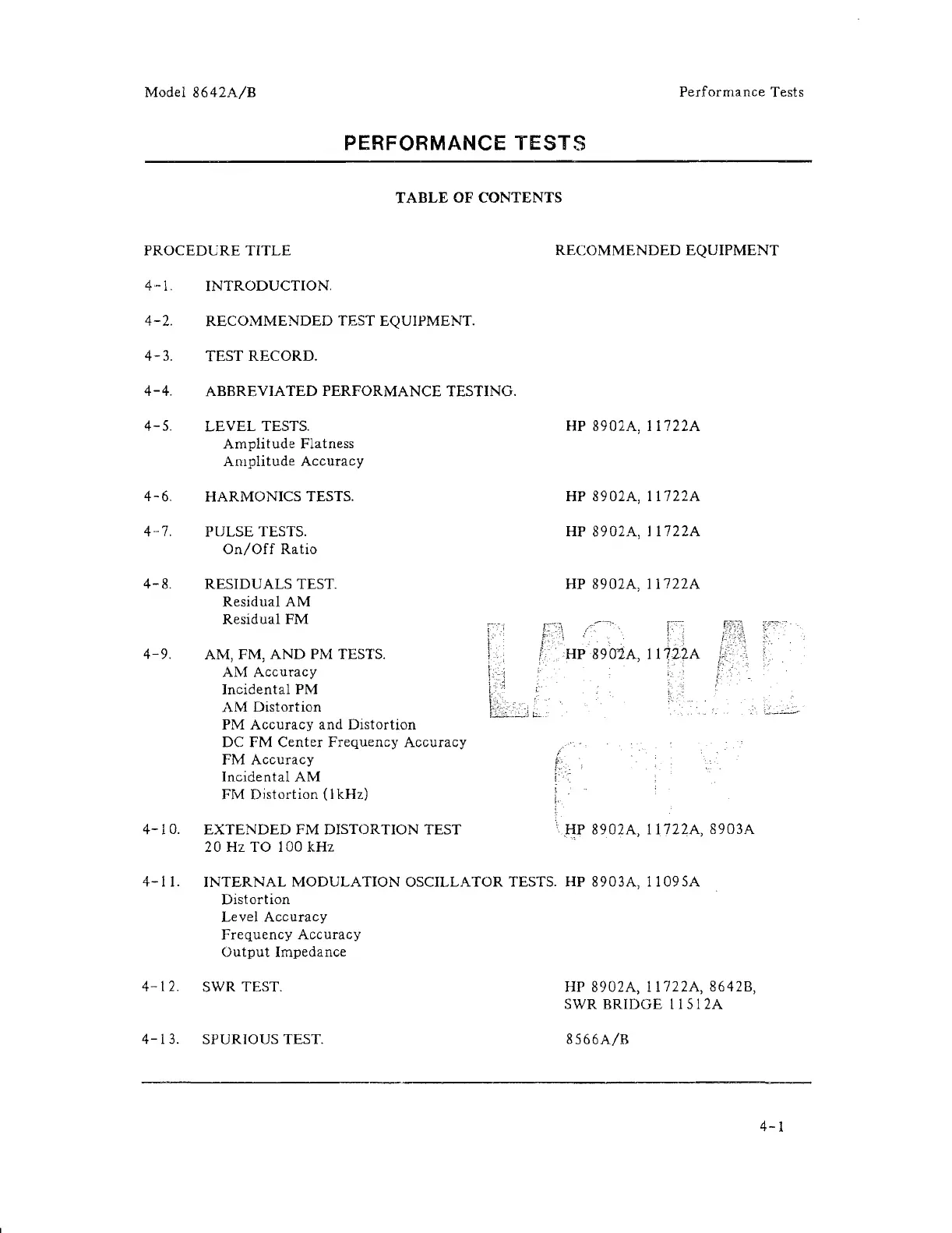

PERFORMANCE TESTS
T ABLE OF CONTENTS
PROCEDCRE TITLE
RECOMMENDED EQUIPMENT
4-1, INTRODUCTION,
4- 2, RECOMMENDED TEST EQUIPMENT.
4- 3. TEST RECORD.
4-4. ABBREVIATED PERFORMANCE TESTING.
4-S.
4-6,
4,·7.
4-8.
4-9.
LE VEL TESTS.
Amplitude Flatness
Amplitude Accuracy
HARMONICS TESTS.
PULSE TESTS.
On/Off Ratio
RESIDUALS TEST.
Residual
AM
Residual FM
AM, FM, AND PM TESTS.
AM Accuracy
Incidental PM
AM Distortion
PM Accuracy and Distortion
DC FM Center Frequency Accuracy
FM Accuracy
Incidental AM
FM Distortion (I kHz)
4-10. EXTENDED PM DISTORTION TEST
20 Hz TO 100 kHz
HP 8902A, I 1722A
HP 8902A, 11722A
HP 8902A, 11722A
HP 8902A, 11722A
[.,c:
'HP8901.A, 11722A
., .H,P 8902A, I 1722A, 8903A
4-11. INTERNAL MODULATION OSCILLATOR TESTS. HP 8903A, 1109SA
Distortion
Level Accuracy
Frequency Accuracy
Output Impedance
4-12. SWR TEST.
4-13. SPURIOUS TEST.
HP 8902A,
ll722A, 8642B,
SWR
BRIDGE 115 12A
8566A/B
