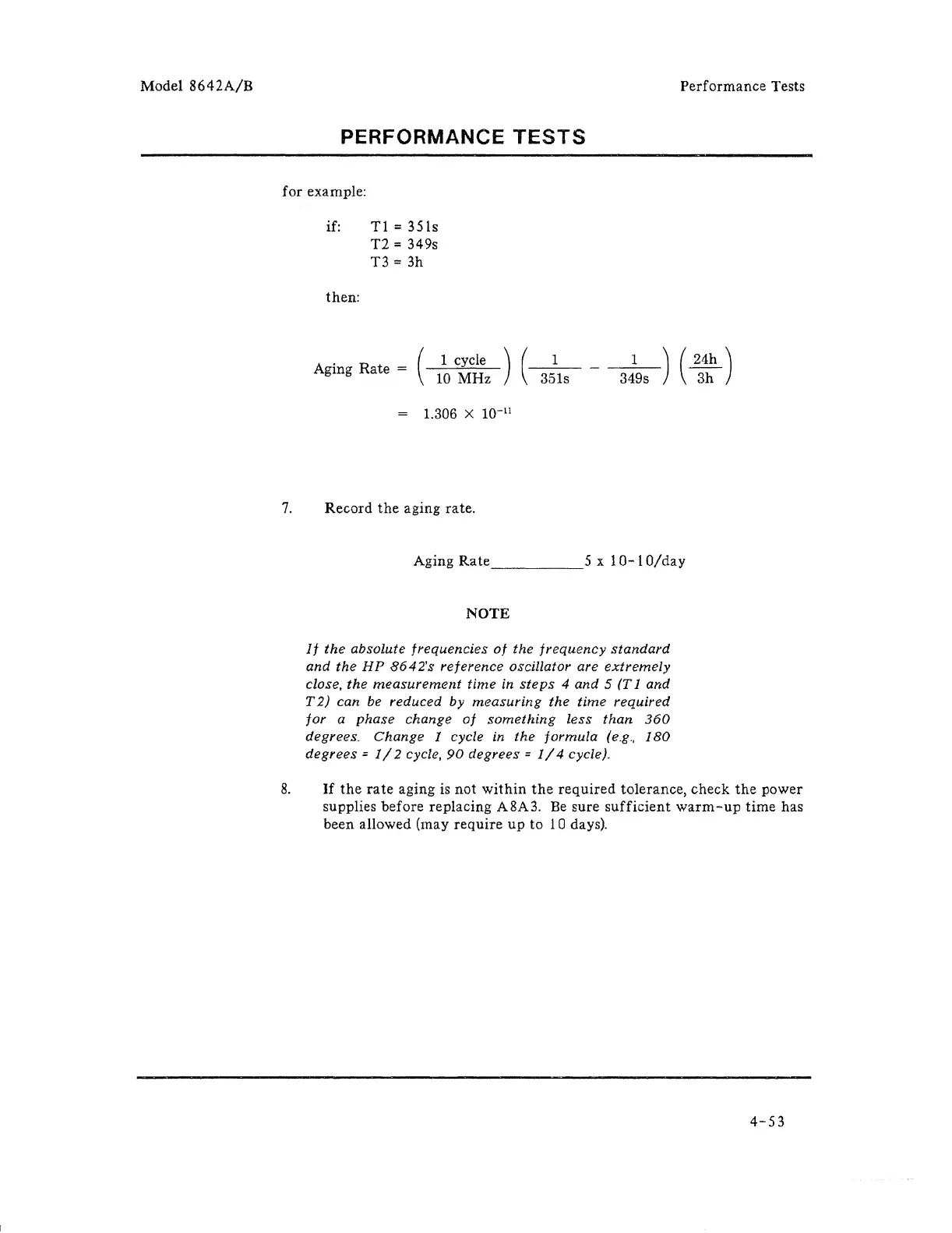

Model 8642A/B Performance Tests
PERFORMANCE TESTS
for example:
if:
T1 = 351s
T2 = 349s
T3 = 3h
then:
Aging Rate =
(
1
cycle
10 MHz
) (
_1
351s
1.306 X 10-
11
7. Record the aging rate.
-34-=-~-S-) ( 234~1 )
Aging Rate _____ 5 x la-la/day
NOTE
]j the absolute frequencies of the frequency standard
and the HP 8642's reference oscillator are extremely
close, the measurement time in steps 4 and 5 (T I and
T 2) can be reduced by measuring the time required
for a phase change of something less than 360
degrees. Change I cycle in the formula (e.g., 180
degrees:: 1/2 cycle, 90 degrees:: 1/4 cycle).
8. If the rate aging is not within the required tolerance, check the power
supplies before replacing A8A3. Be sure sufficient warm-up time has
been allowed (may require up to 10 days).
4-53
