Adjustments
Model 8642A/B
5-6

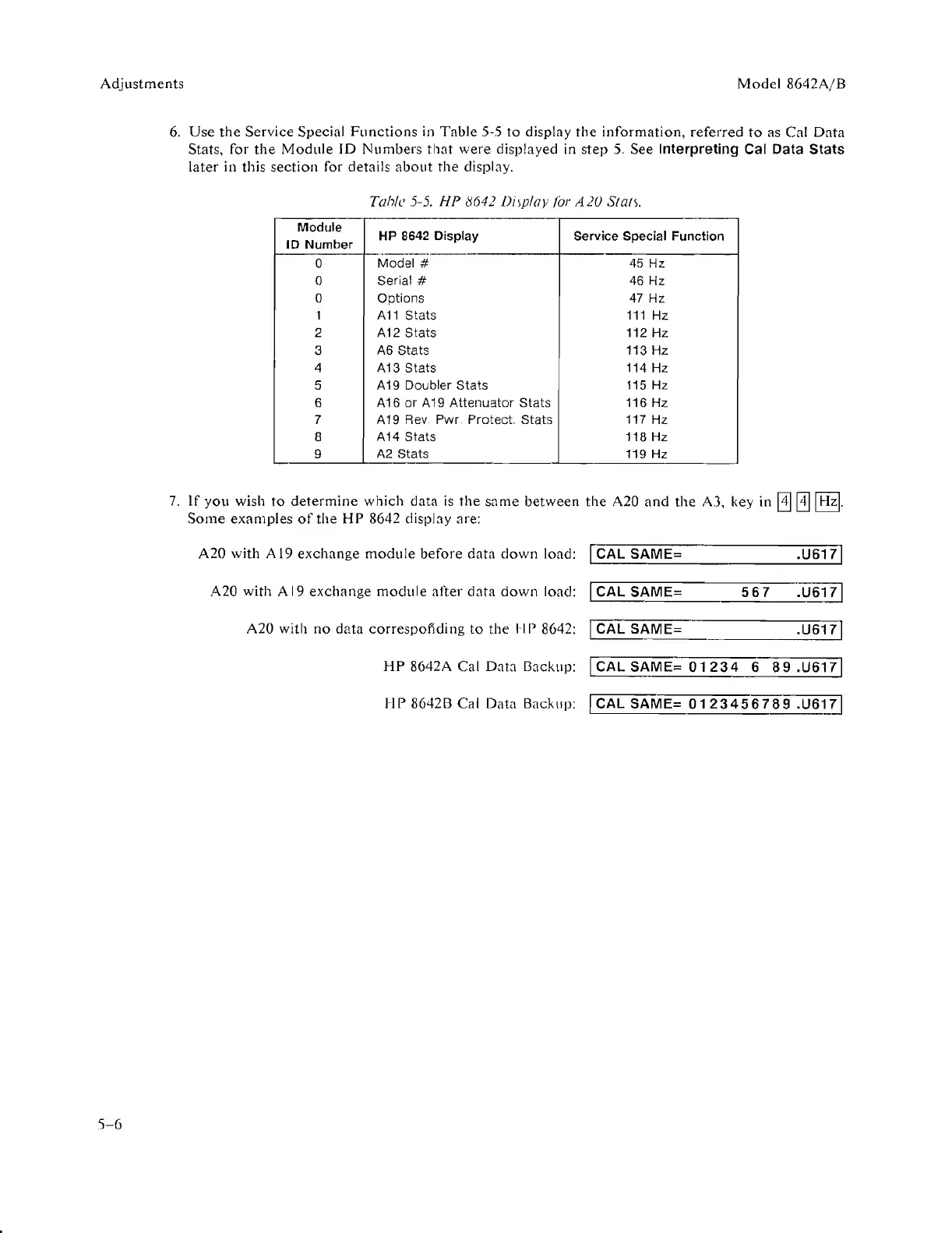

6. Use the Service Special Functions in Table 5-5 to display the information, referred to as Cal Dnta
Stats, for the Module ID Numbers that were displayed in step 5" See Interpreting Cal Data Stats
later in this section for details about the display.
Tahle 5-5. HP 8642 DisplaJ!/or A2V Stats.
Module
HP 8642 Display
Service Special Function
ID
Number
.. _-_.
0
Model #
45 Hz
0
Serial # 46 Hz
0 Options 47 Hz
1
A11 Stats 111 Hz
2 A12 Stats 112 Hz
3
A6 Stats 113 Hz
4 A13 Stats 114 Hz
5
A 19 Doubler Stats
115 Hz
6 A16
or A19 Attenuator Stats 116 Hz
7 A19
Rev. Pwr Protect Stats
117 Hz
8
A14
Stats 118 Hz
9
A2 Stats
119 Hz
7. If you wish to determine which data is the same between the A2a and the A3, key in @] 8] I Hzl.
Some examples of the HP 8642 display are:
A20 with A 19 exchange module before data down load: r .... C_A_L_S_A_M_E_= ________ .U_S_l_7-J1
A2a with A 19 exchange module after data down load: I CAL SAME", 5 S 7 .USifj
A2a with no data corresponding to the H r 8642: [CA'L'--C_A_L_S_A_M_E_= __ . ______ .U_S_"1_7-.l1
HP 8642A Cal Data I3ackup: I CAL SAME= 01234 6 89 .US171
lIP 8642B Cal Data Backup: I CAL SAME= 0123456789 .U61tJ
