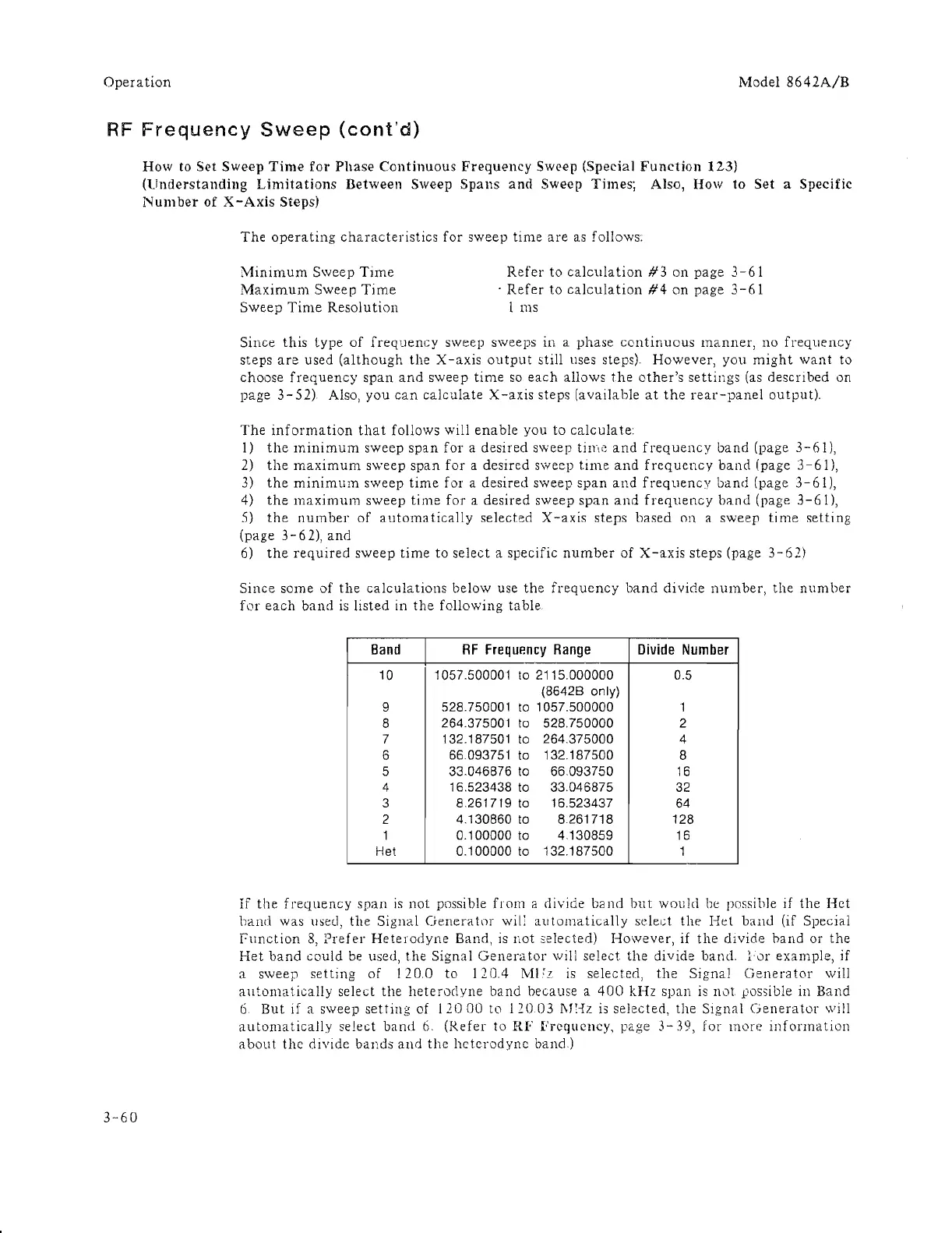

Operation
Model
8642A/B
RF
Frequency
Sweep
(cont'd)
3-60
How to Set Sweep
Time
for
Phase
Continuous
Frequency
Sweep (Special
Function
123)
(llnderstanding
Limitations
Between
Sweep
Spans
and
Sweep
Times;
Also, How
to
Set
a Specific
Number
of
X-Axis
Steps)
The
operating
characteristics
for
sweep
time
are
as follows:
Minimum
Sweep
Time
Maximum
Sweep
Time
Sweep
Time
Resolution
Refer
to
calcula
bon
# 3
on
page 3 -
61
.
Refer
to
calculation
#4
on
page 3 -
61
1
111S
Since
this
lype
of
frequency
sweep sweeps in a
phase
continuous
manner,
no
frequency
steps
are
used
(although
the
X-axis
output
still uses steps).
However,
you
might
want
to
choose
frequency
span
and
sweep
time
so
each
allows
the
other's
settiI~gs
(as descflbed on
page
3 - 5
2)
Also,
you
can
calculate
X
-axis
steps
(a
vaila
hIe
at
the
rear
-panel
output).
The
information
that
follows will
enable
you to
calculate
1)
the
minimum
sweep
span
for
a desired sweep tim"
and
frequency
band
(page
3-61),
2)
the
maximum
sweep
span
for
a desired sweep t.ime
and
frequency
band
(page
3-61),
3)
the
minimum
sweep
time
for a desired sweep
span
and
frequency
band
(page
3-
61),
4)
the
maximum
sweep
time
for
a desired sweep
span
and
frequency
band
(page
3-61),
5)
the
number
of
automatically
selected
X-axis
steps based on a sweep
time
setting
(page
3-62),
and
6)
the
required
sweep
time
to
select a specific
number
of
X-axis
steps (page
3-62)
Since some
of
the
calculations
below use
the
frequency
band
divide
number,
the
number
for
each
band
is
listed
in
the
following
table
Band
RF
Frequp.ncy
Range
Divide
Number
10 1057.500001 to 2115.000000 0.5
(86428 only)
9
528.750001 to 1057.500000
1
8
264.375001
to
528.750000
2
7
132.187501
to
264.375000
4
6
66.093751
to
132.187500
8
5
33.046876 to 66.093750
16
4 16.523438 to 33.046875
32
3
8.261719 to
16.523437 64
2
4.130860 to 8.261718
128
1
0.100000 to 4.130859
16
He!
0.100000 to 132.187500
1
If
the
frequency
span
is
not possible
from
a divide
band
but
WOllld
be
possible if
the
Het
band
was used,
the
Signal
Generator
will
automatically
select
the
Het
band
(if Special
[-"unction
8,
Pref
er
Heterodyne
Band, is
not
selected)
However,
if
the
dIvide
hand
or
the
Het
band
could
be
used,
the
Signal
Generator
will
select
the
divide bane].
lor
example, if
a sweep
setting
of 120.0 to
120.4
ME!
is
selected,
the
Signal
Generator
will
automatically
select
the
heteroc\yne
band
because a
400
kHz
span
is
not
possible in
Band
6.
But
if
a sweep
setting
of
12000
to
12003
l\.lI-fz
is selected,
the
SIgnal
C;enerator
will
automatically
select
band
6.
(Refer
to
Hi'"
Frequency,
page
3-
39, for
more
information
about
the
divide
bands
and
the
heterodyne
band)
