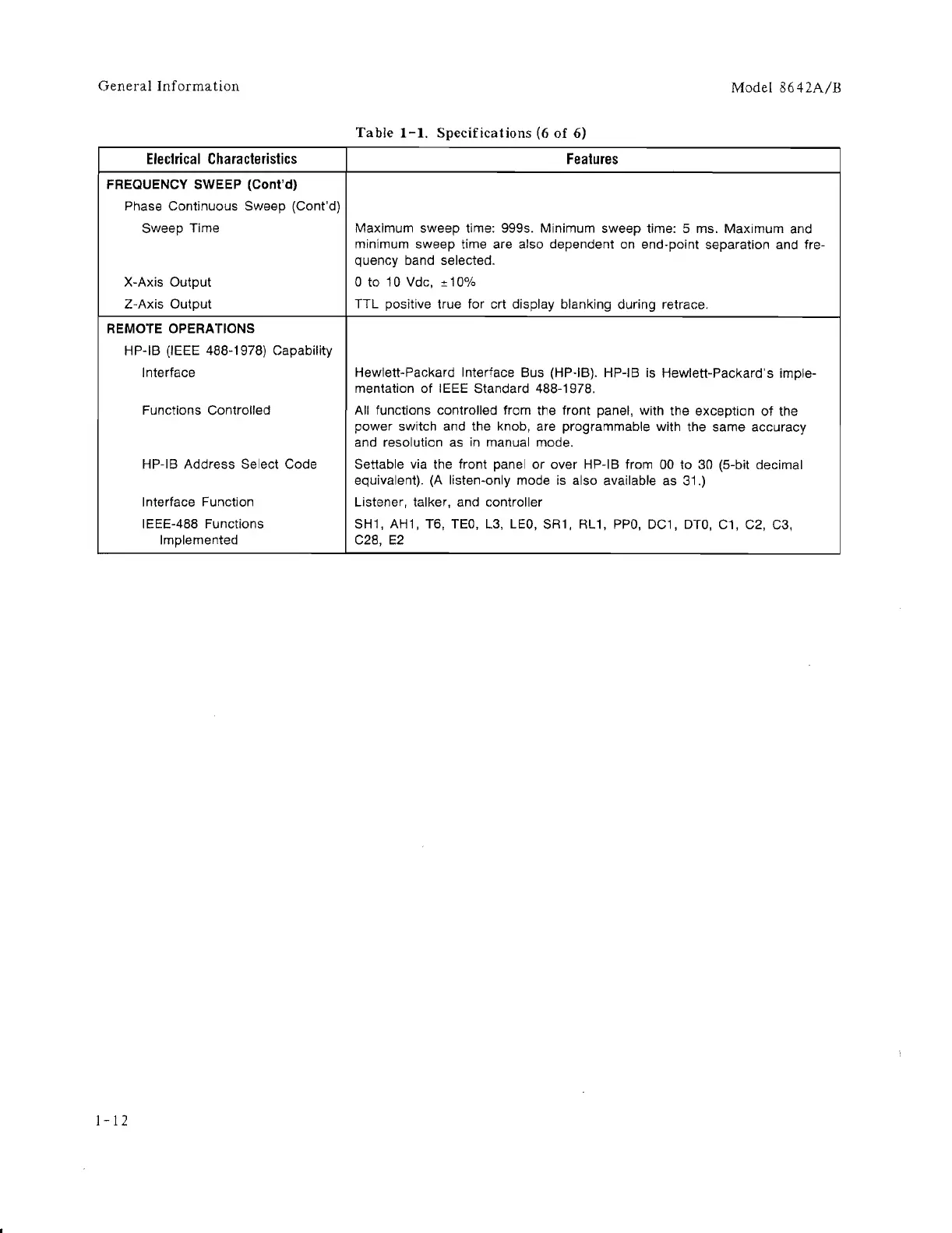

General
Information
Model
8642A/B
Table
1-1.
Specifications
(6
of
6)
Electrical
Characteristics
Features
FREQUENCY SWEEP (Cont'd)
Phase Continuous Sweep (Cont'd)
Sweep Time Maximum sweep time: 9995. Minimum sweep time: 5 ms. Maximum and
minimum sweep time are also dependent on
end-point separation and fre-
quency band selected.
X-Axis Output
a to 10 Vdc, ±10%
Z-Axis Output
TTL positive true for crt display blanking during retrace,
REMOTE OPERATIONS
HP-IB (IEEE 488-1978) Capability
Interface Hewlett-Packard Interface Bus (HP·IB). HP-IB is Hewlett-Packard's imple-
mentation
of
IEEE Standard 488-1978,
Functions Controlled
All functions controlled from the front panel, with the exception
of
the
power switch and the knob, are programmable with the same accuracy
and resolution
as
in manual mode.
HP-IB Address Select Code
Settable via the front panel
or
over HP-IB from
00
to 30 (5-bit decimal
equivalent).
(A
listen-only mode
is
also available as 31.)
Interface Function Listener, talker, and controller
IEEE-488 Functions
SH1,
AH
1,
T6,
TEO,
L3,
LEO,
SR
1,
RL
1,
PPO,
DC1,
DTO,
Cl,
C2,
C3,
Implemented C28,
E2
1-12
