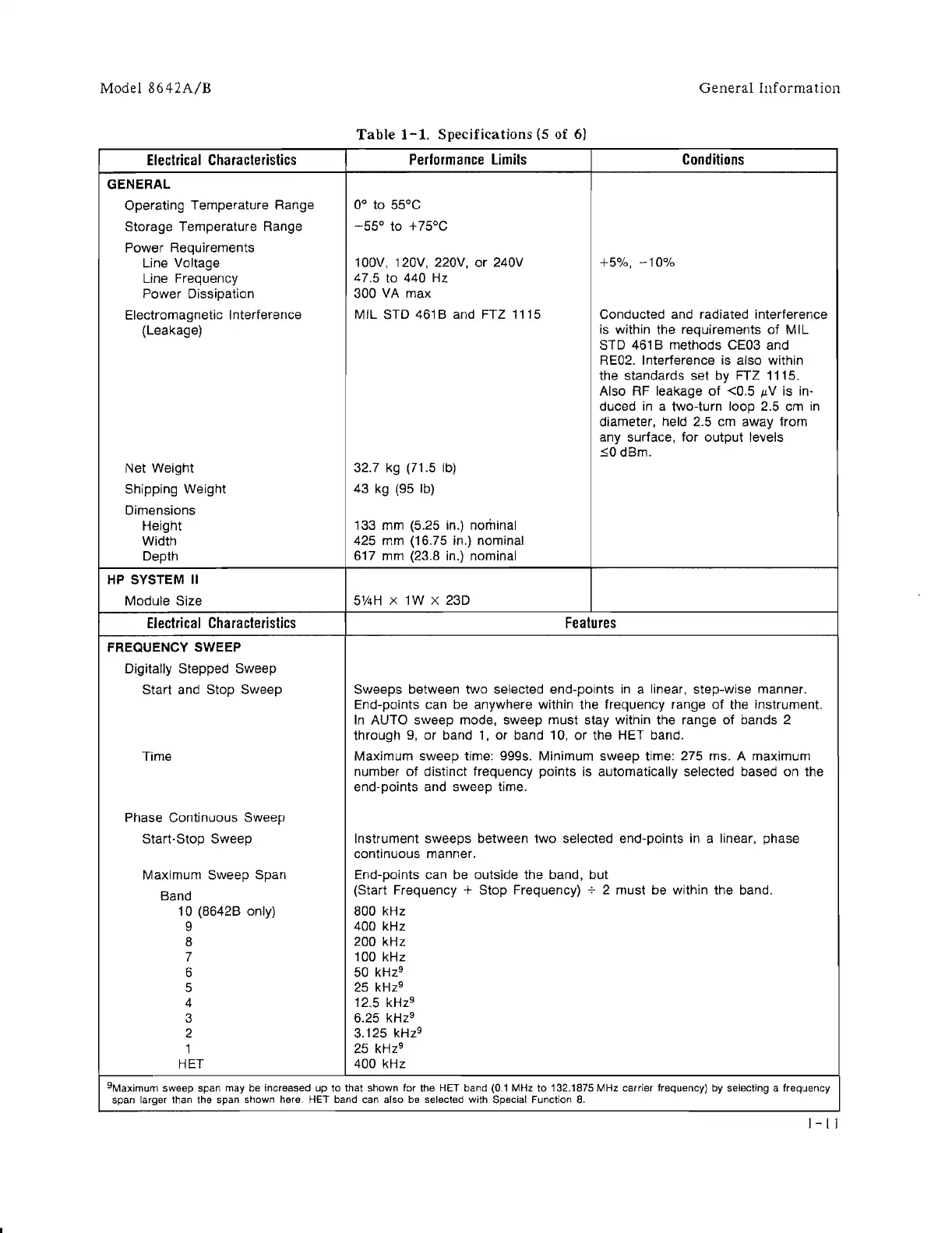

Model
8642A/B
Electrical
Characteristics
GENERAL
Operating Temperature Range
Storage Temperature Range
Power Requirements
Line Voltage
Line Frequency
Power Dissipation
Electromagnetic Interference
(Leakage)
Net Weight
Shipping Weight
Dimensions
Height
Widtrl
Depth
HP
SYSTEM
\I
Module Size
Electrical
Characteristics
FREQUENCY SWEEP
Digitally Stepped Sweep
Start
and Stop Sweep
Time
Phase Continuous Sweep
Start-Stop Sweep
Maximum Sweep Span
Band
10 (8642B only)
9
8
7
6
5
4
3
2
1
HET
General
Information
Table
1-1.
Specifications
(5 of
6)
Performance
Limits
0°
to
55°C
-55°
to + 75°C
100V, 120V, 220V,
or
240V
47.5 to 440 Hz
300 VA max
MIL
STD 461B and FTZ 1115
32.7 kg (71.5
Ib)
43
kg (95
Ib)
133 mm (5.25 in.) nominal
425 mm (16.75 in.) nominal
617 mm (23.8 in.) nominal
51!4H
x 1W x 23D
Conditions
+5%,
-10%
Conducted and radiated interference
is within the requirements
of
MIL
STD
461
Bmethods
CE03 and
RE02. Interference is also within
the standards set by FTZ 1115.
Also RF leakage
of
<0.5
p.V
is in-
duced in a two-turn loop 2.5 cm
in
diameter, held 2.5 cm away from
any surface,
for
output
levels
!SO
dBm.
Features
Sweeps between
two
selected end-points
in
a linear, step-wise manner.
End-paints can be anywhere within the frequency range
of
the instrument.
In
AUTO
sweep
mode, sweep
must
stay within the range
of
bands 2
through
9,
or
band
1,
or
band 10,
or
the HET band.
Maximum sweep time: 999s. Minimum
sweep
time: 275 ms. A maximum
number
of
distinct frequency points is automatically selected based on the
end-points and sweep time.
Instrument sweeps between
two
selected end-points in a linear, phase
continuous manner.
End-points can be outside the band, but
(Start Frequency + Stop Frequency)
+ 2
must
be within the band.
800 kHz
400 kHz
200 kHz
100 kHz
50 kH
z
9
25
kH
z
9
12.5
kH
z
9
6.25
kH
z
9
3.125
kH
z
9
25 kH
z
9
400 kHz
9Maximum sweep span may
be
increased up to that shown for the HET band (01 MHz
to
132.1875 MHz carrier frequency) by selecting a frequency
span larger than the span stlOwn here. HET band can also be selected with Special Function
8.
1-11
