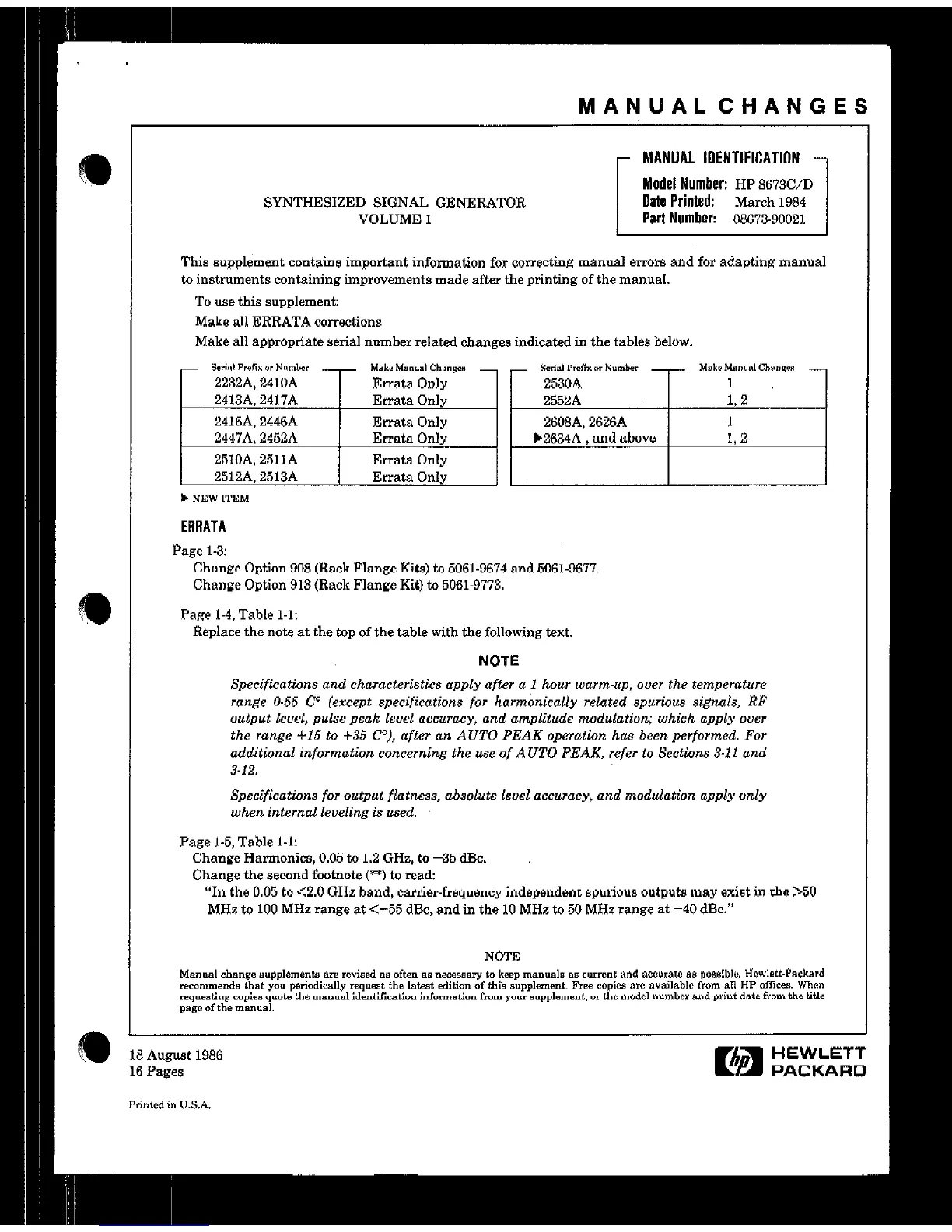

MANUALCHANGES
SYNTHESIZED SIGNAL GENERATOR
VOLUME 1
MANUAL IDENTIFICATION
Model Number:
HP 867X/D
Date Printed:
March 1984
Part Number:
08673-90021
1
This supplement contains important information for correcting manual error8 and for adapting manual
to
instruments
containing improvements made after the printing of the manual.
To use this supplement:
Make all ERRATA corrections
Make all appropriate serial number related changes indicated in the tables below.
- Somd ProfiX “” Nwnk - Make Munu.l Chmcl” - - Srnul ,‘.A* 0. Nvmllcr - Muke Mununl Chll”llCR -
2232A, 2410A
Errata Only 2530A
1
2413A, 2417A Errata Only 2552A
L2
2416A. 2446A
Erratn Only
2603A, 2626A 1
2447A, 2452A Errata Only
)2634A , and above 1,2
2510A, 2511A Errata Only
2512A. 2513A
Errata Only
b NEW ITEM
ERRATA
Pago 1-3:
Change Option 908 (Hack Flangs Kits) to
5061-9674 and 5061-9677.
Change Option 913 (Rack Flange Kit) to 5061-9773.
Page 1-4, Table 1-l:
Replace the note at the top of the table with the following text.
NOTE
Specifications and characteristics apply after a 1 hour warm-up, over the temperature
range 0.55 ‘2 (except specifications for harmonically related spurious signals, RP
output lcuel, puke peak level accuracy, and amplitude modulatimqwhich apply ouer
the range 415 to f35 CO)), after an AUTO PEAK operation has been performed. For
additional information concerning the use of AUTO PEAK, refer to Sections 3.11 and
3-12.
Specifications for output flatness, absolute level accuracy, and modulation apply only
when internal leveling is used.
Page 1-5, Table 1-l:
Change Harmonics, 0.05 to 1.2 GHz, to -35 dBc.
Change the second footnote (**) to read:
“In the 0.05 to <2.0 GHz band, carrier-frequency independent spurious outputs may exist in the >50
MHz to 100 MHz range at <-55 dBc, and in the 10 MHz to 50 MHz range
at
-40 dBc.”
; August
Pages
MCd in I,.
1986
Ea
HEWLETT
PACKARD
