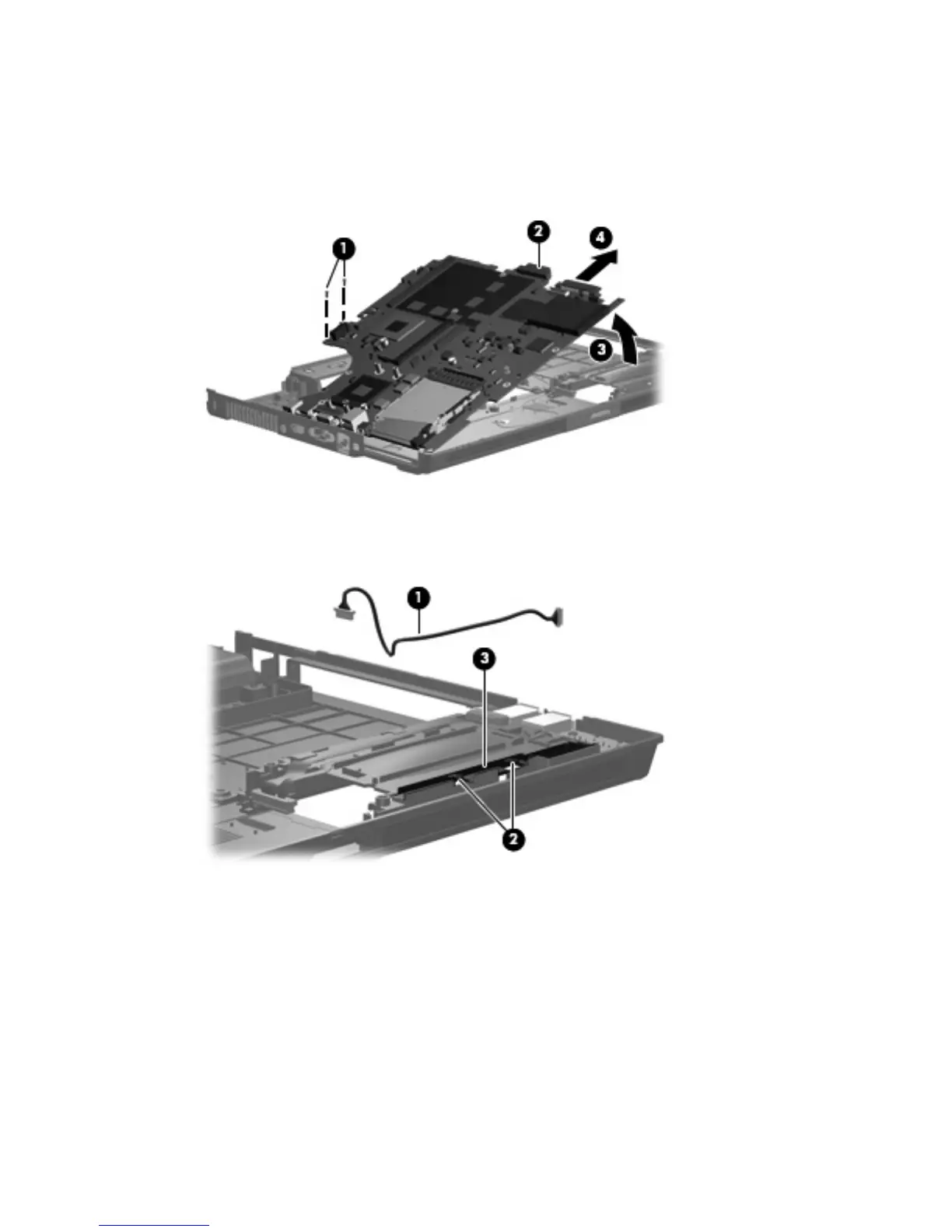

6. Remove the two Torx T8M2.5×7.0 screws (1) that secure the system board to the base enclosure.
7. Use the optical drive connector (2) to lift the right side of the system board (3) until it rests at an
angle.
8. Remove the system board (4) by sliding it away from the base enclosure at an angle.
9. If it is necessary to replace the Bluetooth module cable, remove the cable (1) from the clips (2)
and (3) built into the base enclosure. The Bluetooth module cable is included in the Cable Kit, spare
part number 450486-001.
Component replacement procedures 89
