A7509845-66575
High
Voltage
A7409845-66574
CRT
Analog
A73 09845-66573
Display Logic

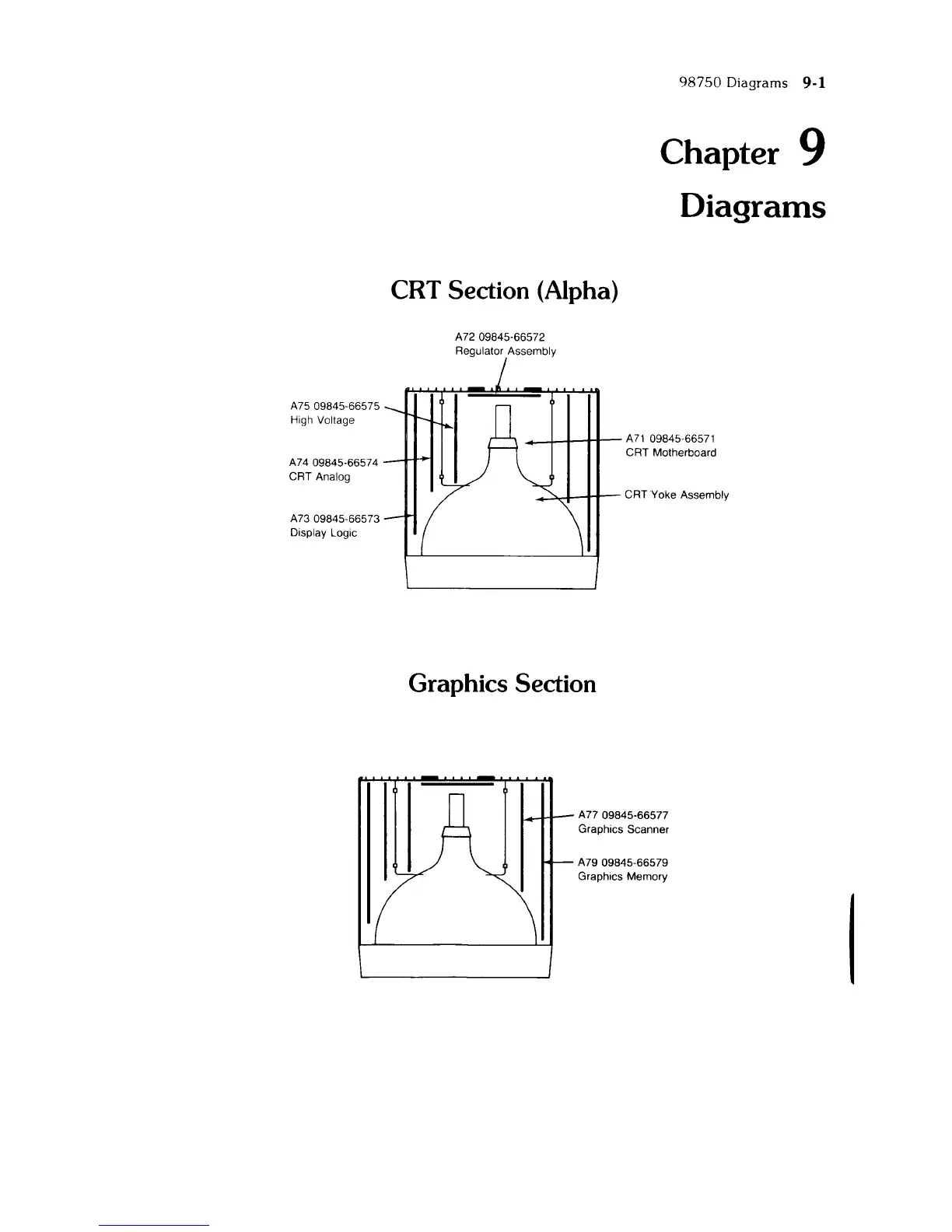

98750 Diagrams 9-1
Chapter 9
CRT Section (Alpha)
A7209845-66572
Regulator Assembly
Diagrams
._---4--+--f"-t-- A71 09845-66571
CRT Motherboard
~~I--~- CRT Yoke Assembly
Graphics Section
A77 09845-66577
Graphics Scanner
A7909845-66579
Graphics Memory
