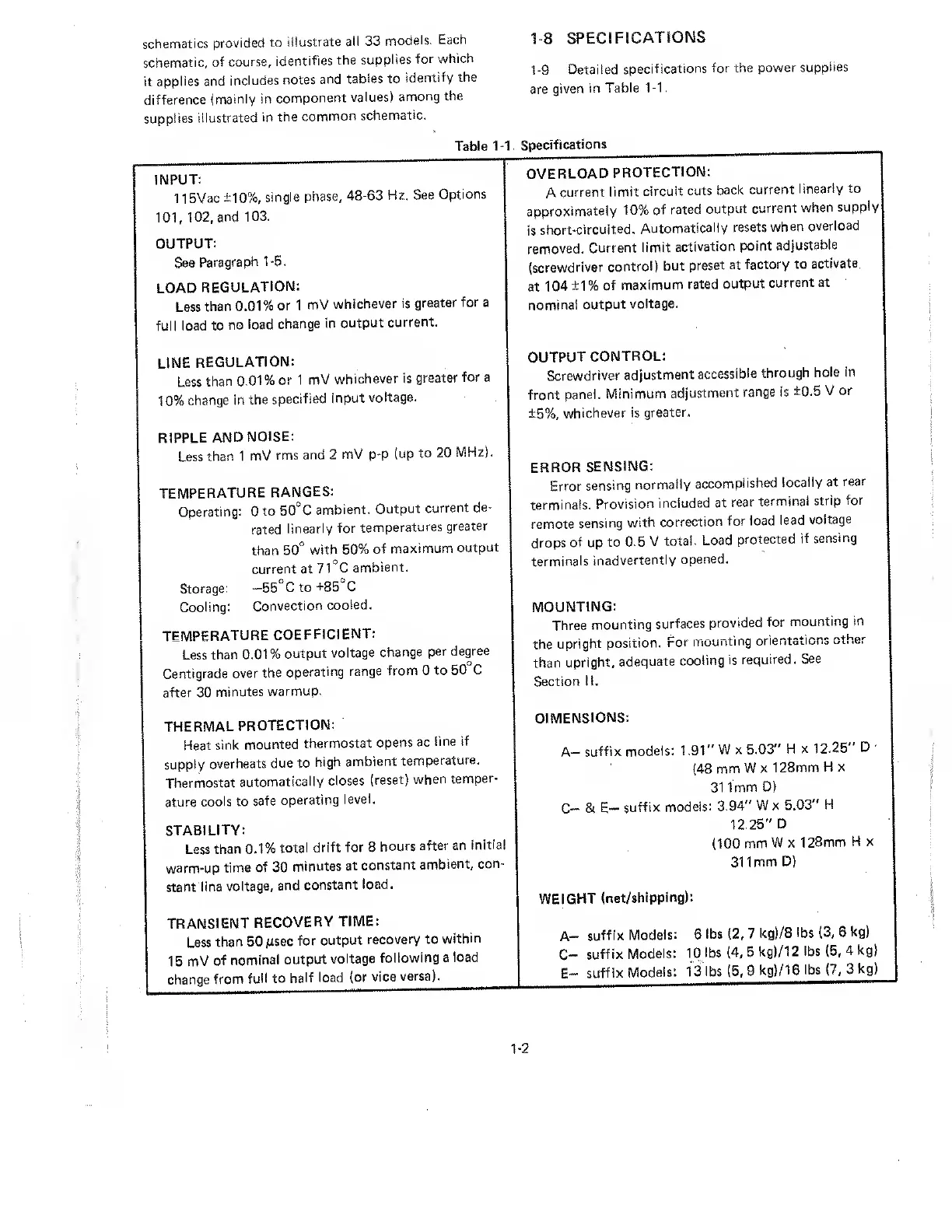

schematics
provided
to
illustrate
all
33
models.
Each
schematic,
of
course,
identifies
the
supplies
for
which
it
applies
and
includes
notes
and
tables
to
identify
the
difference
{mainly
in
component
values)
among
the
supplies
illustrated
in
the
common
schematic.
1-8
SPECIFICATIONS
1-9
Detailed
specifications
for
the
power
supplies
are
given
in
Table
1-1.
Table
T1.
Specifications
INPUT:
115Vac
±10%,
single
phase,
48-63
Hz.
See
Options
101,
102,
and
103.
OUTPUT:
See
Paragraph
1-5.
LOAD
REGULATION;
Less
than
0.01
%
or
1
mV
whichever
is
greater
for
a
full
load
to
no
load
change
in
output
current.
LINE
REGULATION:
Less
than
0.01
%
or
1
mV
whichever
is
greater
for
a
10%
change
in
the
specified
input
voltage.
RIPPLE
AND
NOISE:
Less
than
1
mV
rms
and
2
mV
p-p
(up
to
20
MHz).
TEMPERATURE
RANGES;
Operating:
0
to
50“C
ambient.
Output
current
de¬
rated
linearly
for
temperatures
greater
than
50°
with
50%
of
maximum
output
current
at
71°C
ambient.
Storage:
~55°C
to
+85“C
Cooling:
Convection
cooled.
TEMPERATURE
COEFFICIENT:
Less
than
0.01%
output
voltage
change
per
degree
Centigrade
over
the
operating
range
from
0
to
50
C
after
30
minutes
warmup.
THERMAL
PROTECTION:
Heat
sink
mounted
thermostat
opens
ac
line
if
supply
overheats
due
to
high
ambient
temperature.
Thermostat
automatically
closes
(reset)
when
temper¬
ature
cools
to
safe
operating
level.
STABILITY:
Less
than
0.1%
total
drift
for
8
hours
after
an
initial
warm-up
time
of
30
minutes
at
constant
ambient,
con¬
stant
line
voltage,
and
constant
load.
TRANSIENT
RECOVERY
TIME:
Less
than
50
jusec
for
output
recovery
to
within
15
mV
of
nominal
output
voltage
following
a
load
change
from
full
to
half
load
(or
vice
versa)._
OVERLOAD
PROTECTION:
A
current
limit
circuit
cuts
back
current
linearly
to
approximately
10%
of
rated
output
current
when
supply
is
short-circuited.
Automatically
resets
when
overload
removed.
Current
limit
activation
point
adjustable
(screwdriver
control)
but
preset
at
factory
to
activate
at
104
±1%
of
maximum
rated
output
current
at
nominal
output
voltage.
OUTPUT
CONTROL:
Screwdriver
adjustment
accessible
through
hole
in
front
panel.
Minimum
adjustment
range
is
±0.5
V
or
±5%,
whichever
is
greater.
ERROR
SENSING:
Error
sensing
normally
accomplished
locally
at
rear
terminals.
Provision
included
at
rear
terminal
strip
for
remote
sensing
with
correction
for
load
lead
voltage
drops
of
up
to
0.5
V
total.
Load
protected
if
sensing
terminals
inadvertently
opened.
MOUNTING:
Three
mounting
surfaces
provided
for
mounting
in
the
upright
position.
For
mounting
orientations
other
than
upright,
adequate
cooling
is
required.
See
Section
II.
DIMENSIONS;
A—
suffix
models:
1.91"
W
x
5.03"
H
x
12.25
D
'
(48
mm
W
x
128mm
H
x
311mm
D)
C-
Si
E
suffix
models;
3.94"
W
x
5.03"
H
12.25"
D
(100
mm
W
X
128mm
H
x
311mm
D)
WEIGHT
(net/shipping):
A—
suffix
Models:
6
lbs
(2,
7
kg)/8
lbs
(3,
6
kg)
C-
suffix
Models:
10
lbs
(4,
5
kg)/12
lbs
(5,
4
kg)
E-
suffix
Models:
ii
lbs
(5,9
kg)/16
lbs
(7,
3
kg)
