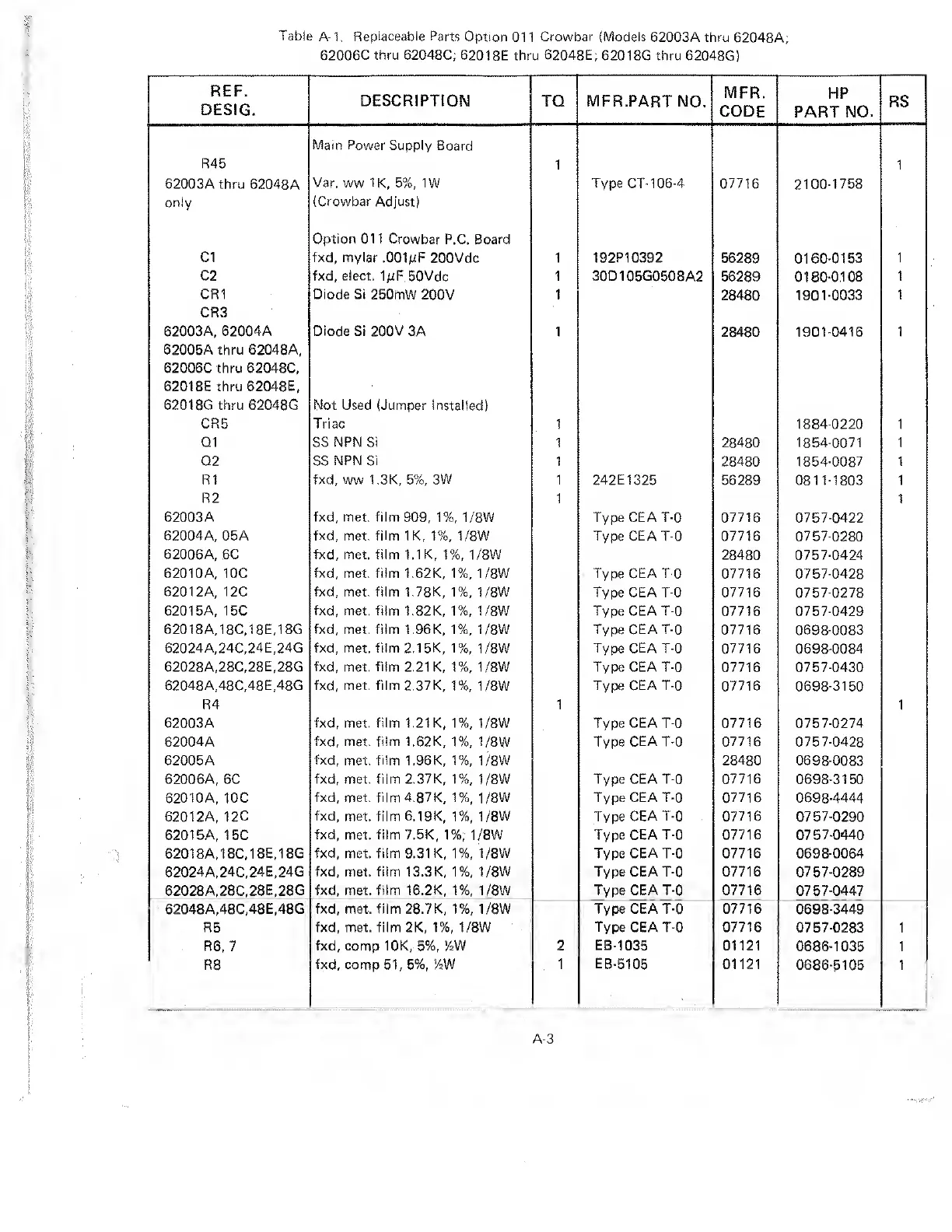

Table A-1. Replaceable Parts Option 011 Crowbar (Models 62003A thru 62048A;
62006C thru 62048C; 62018E thru 62048E; 62018G thru 62048G)
REF.
DESIG.
DESCRIPTION TQ
IV1FR.PARTNO.
MFR.
CODE
HP
PART NO.
RS
Main Power Supply Board
R45
1
1
62003A thru 6204SA
Var. ww IK, 5%, 1W
Type CT106-4
07716 2100-1758
only
(Crowbar Adjust)
Option 011 Crowbar P.C. Board
Cl
fxd, mylar .OOImF 200Vdc 1
192P10392
56289
0160-0153
1
C2 fxd, elect. ^|J.F BOVdc 1
30D105G050BA2
56289
0180-0.108
1
CR1
Diode Si 250mW 200V 1
28480
1901-0033
1
CR3
62003A, 62004A Diode Si 200V 3A
1
28480 1901-0416
1
62005A thru 62048A,
62006C thru 62048C,
62018E thru 62048E,
62018G thru 62048G Not Used (Jumper installed)
CRB
Triac
1 1884-0220 1
Q1 SS NPN Si
1 28480
1854-0071
1
Q2 SS NPN Si 1
28480
1854-0087 1
R1 fxd, ww 1.3K, 5%, 3W 1
242E1325 56289 0811-1803 1
R2
1 1
62003A
fxd, met. film 909, 1%. 1/8W Type CEA T-0
07716 0757-0422
62004A, 05A fxd, met. film IK, 1%, 1/8W
Type CEA T-0 07716
0757-0280
62006A, .6C fxd, met. film 1.1K, 1%, 1/8W
28480
0757-0424
62010A, IOC
fxd, met. film 1.62K, 1%, 1/8W
Type CEA T-0 07716
0757-0428
62012A,12C fxd, met. film 1.78K, 1%, 1/8W
Type CEA T-0 07716
0757-0278
62015A, 15C
fxd, met. film 1.82K, 1%, 1/8W
Type CEA T-0
07716
0757-0429
62018A,1SC,18E,18G fxd, met. film 1.96K, 1%, 1/8W
Type CEA T-0 07716 0698-0083
62024A,24C,24E,24G fxd, met. film 2.15K, 1%, 1/8W
Type CEA T-0 07716 0698-0084
62028A,28C,28E,28G fxd, met. film 2.21 K, 1%, 1/8W Type CEA T-0
07716 0757-0430
62048A,4aC,48E,48G fxd, met. film 2.37K, 1%, 1/8W Type CEA T-0
07716
0698-3150
R4 1
1
62003A fxd, met. film 1.21 K, 1%, 1/8W
Type CEA T-0 07716
0757-0274
62004A fxd, met. film 1.62K, 1%, 1/8W
Type CEA T-0
07716
0757-0428
62005A fxd, met. film 1,96K, 1%, 1/8W
28480 0698-0083
62006A, 6C fxd, met. film 2.37K, 1%, 1/8W Type CEA T-0 07716
0698-3150
62010A, IOC
fxd, met. film4.87K, 1%, 1/8W
Type CEA T-0 07716 0698-4444
62012A, 12C fxd, met. film 6.19K, 1%, 1/SW
Type CEA T-0 07716 0757-0290
62015A, 15C fxd, met. film 7.5K, 1%, 1/8W Type CEA T-0
07716
0757-0440
62018A.18C,18E,18G fxd, met. film 9.31 K, 1%, 1/8W
Type CEA T-0
07716 0698-0064
62024A,24C,24E,24G fxd, met. film 13.3K, 1%, 1/8W
Type CEA T-0
07716
0757-0289
O 00 CM LU CO CM o' GO
CM < CO CM O CM CO
fxd, met. film 16.2K, 1%, 1/8W Type CEA T-0 07716
0757-0447
62048A,48C,48E,48G fxd, met. film 28.7K, 1%, 1/8W
Type CEA T-0
07716
0698-3449
R5
fxd, met. film 2K, 1%, 1/8W Type CEA T-0 07716
0757-0283 1
R6, 7
fxd, comp 10K, 5%, 2 EB-1035 01121
0686-1035
1
R8
fxd, comp 51, 5%, ViW
1
EB-5105
01121
0686-5105
1
A-3
