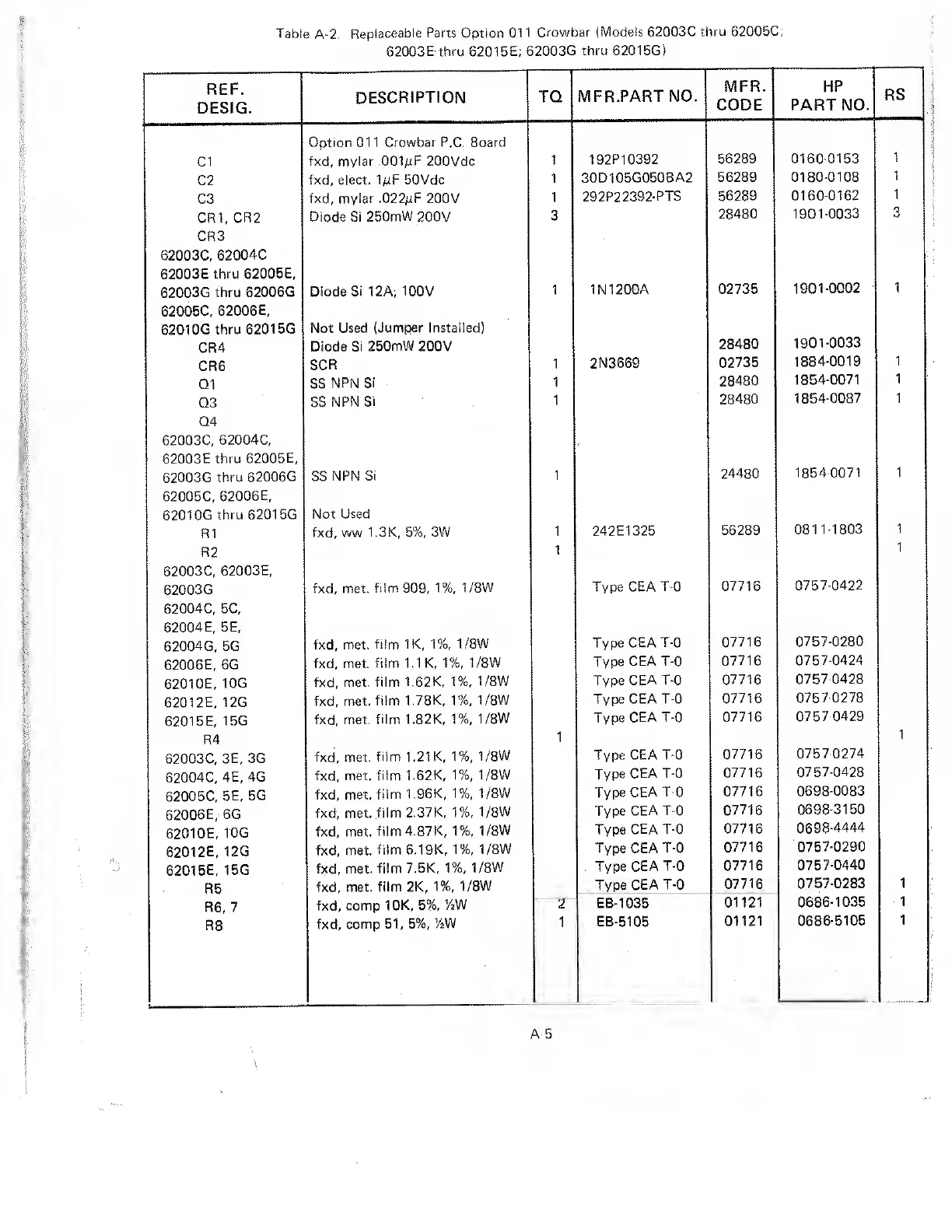

Tabie A-2. Replaceable Parts Option 011 Crowbar (Models 62003C thru 62005C;
62003E thru 62015E; 62003G thru 62015G)
REF.
DESIG.
DESCRIPTION
TQ
IVIFR.PARTNO.
MFR.
CODE
HP
PART NO.
RS ^
Option Oil Crowbar P.C. Board
C1
fxd, mylar .001 mE 200Vdc
1
192P10392
56289 0160-0153
1 ;
C2
fxd, elect. 1 /jF BOVdc
1
30D105G050BA2
56289 0180-0108
1
C3
fxd, mylar .022^6 200V
1
292P22392-PTS
56289 0160-0162
1
CR1, CR2
Diode Si 250mW 200V
3
28480
1901-0033
3
CR3
62003C,62004C
62003E thru 62005E,
62003G thru 62006G
Diode Si 12A, 100V
1
1N1200A 02735
1901-0002
1
62005C, 62006E,
62010G thru 62015G
Not Used (Jumper Installed)
CR4
Diode Si 250mW 200V
28480
1901-0033
CR6
SCR
1 2N3669
02735
1884-0019
1
Q1
SS NPN Si
1
28480
1854-0071
1
Q3
SS NPN Si
1
28480
1854-0087 1
Q4
62003C, 62004C,
62003E thru 62005E,
62003G thru 62006G
SS NPN Si
1
24480
1854-0071 1
62005C, 62006E,
62010Gthru 62015G
Not Used
R1
fxd, ww 1.3K, 5%, 3W
1
242E1325
56289
0811-1803
1
R2
1
1
62003C. 62003E,
62003G
fxd, met. film 909, 1%, 1/8W
Type CEA T-0
07716
0757-0422
62004C, 5C,
62004E, 5E,
62004G, 5G
fxd, met. film IK, 1%, l/SW
Type CEA T-0
07716
0757-0280
62006E,6G
fxd, met. film 1.1 K, 1%, 1/8W
Type CEA T-0
07716
0757-0424
62010E. lOG
fxd, met. film 1.62K, 1%, 1/8V\/
Type CEA T-0 07716
0757-0428
62012E, 12G
fxd, met. film 1.78K, 1%, 1/8W
Type CEA T-O
07716
0757-0278
62015E, 15G
fxd, met. film 1.82K, 1%, 1/8W
Type CEA T-0 07716
0757-0429
R4
1
1
62003C, 3E, 3G
fxd, met. film 1.21 K, 1%, 1/8W
Type CEA T-0
07716
0757-0274
62004C. 4E, 4G
fxd, met. film 1.62K, 1%, 1/8W
Type CEA T-0
07716
0757-0428
62005C, 5E, 5G
fxd, met. film 1.96K, 1%, 1/8W
Type CEA T-0
07716
0698-0083
62006E, 6G
fxd, met. film 2.37K, 1%, 1/8W
Type CEA T-0
07716
0698-3150
62010E, 10G
fxd, met. ftlm4.87K, 1%, 1/8W
Type CEA T-0
07716
0698-4444
62012E, 12G
fxd, met. film 6.19K, 1%, 1/8W
Type CEA T-0
07716
0757-0290
62015E. 15G
fxd, met. film 7.5K, 1%, 1/8W
Type CEA T-0
07716
0757-0440
R5
fxd, met. film 2K, 1%, 1/8W
Type CEA T-0
07716
0757-0283
■■
R6, 7
fxd, comp 10K, 5%, VsW
2 EB-1035
01121
0686-1035
■■
R8
fxd, comp 51, 5%, ’AW
1 EB-5105
01121
0686-5105
1
A-5
