Sensor and Switch Locations
June 1999 Printer and Troubleshooting Overview 1-11
Sensor and Switch Locations
The following pages illustrate the locations of the printer’s sensors and switches. Table 1-
2, “Sensor and Switch List,” on page 1-14, lists them.

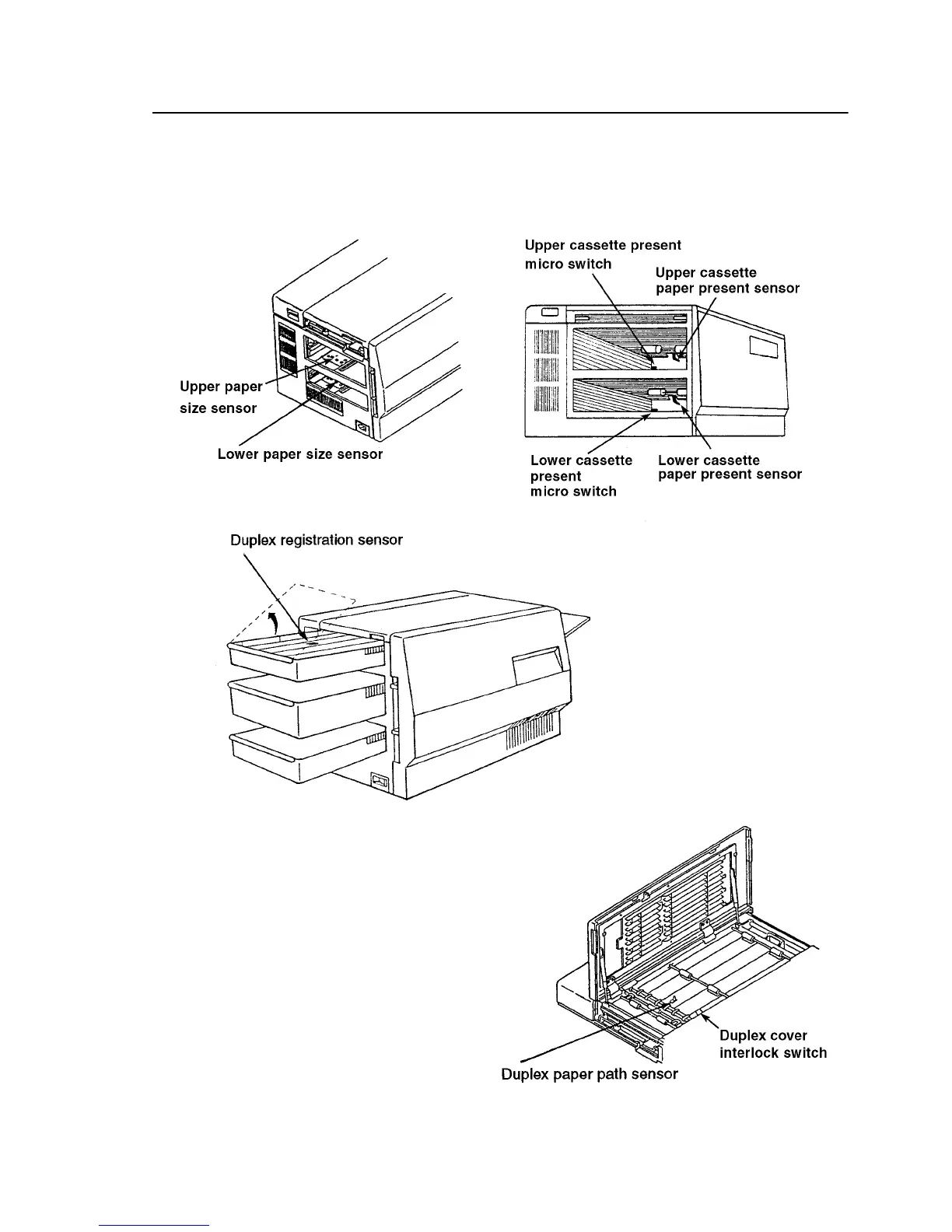

Left end view
Left end view
Front left view
Top view, duplex
