Vacuum Transport Unit Removal (Simplex)
June 1999 Removal/Replacement Procedures 7-11
Vacuum Transport Unit Removal (Simplex)

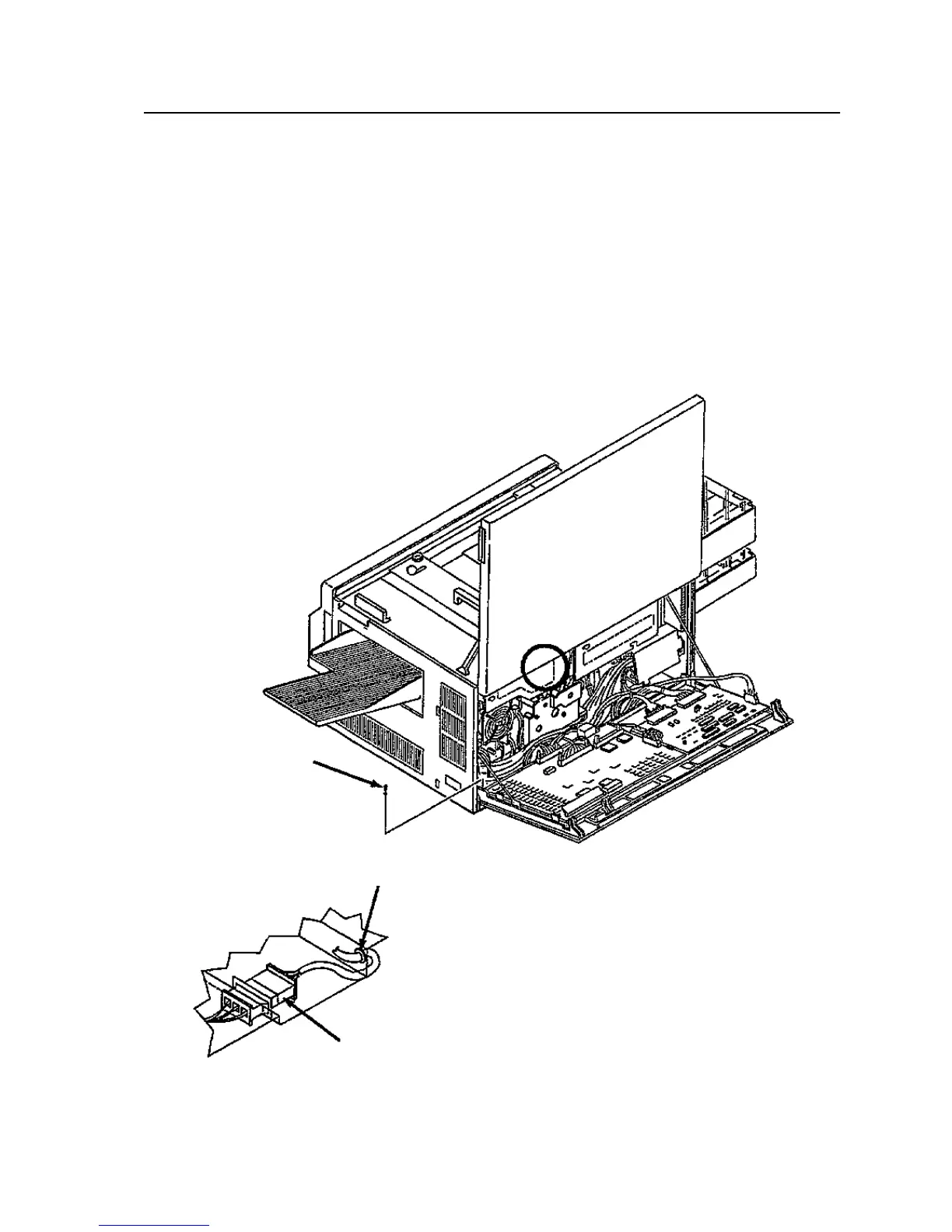

To remove the simplex vacuum transport unit:
1 Open the top and back cover.
2 Disconnect CN22A.
3 Remove the retaining clip holding the cable in place.
4 Remove the ground screw on the left side of the back cover.
5 Remove the harness stays holding the cable in place.
6 Remove the vacuum transport unit (four screws).
Ground Screw
CN22A
Back Detail
Retaining Clip
To Next Page
