Disk Drive Housing Removal
June 1999 Removal/Replacement Procedures 7-25
Disk Drive Housing Removal
To remove the disk drive housing:
1 Open the front and back covers.
2 Remove the diskette(s).
3 Disconnect CN77 and CN79.
4 For the hard drive option, disconnect the drive’s data cable.
5 Loosen the thumbscrew on the back of the disk drive housing.
6 Remove the disk drive housing from the front of the printer. Be careful not to damage
the cables on the sharp edges of the chassis.
Replacement Note:
For A drives, set the jumper on the drive circuit board to 0; for B drives, set the jumper to
1.

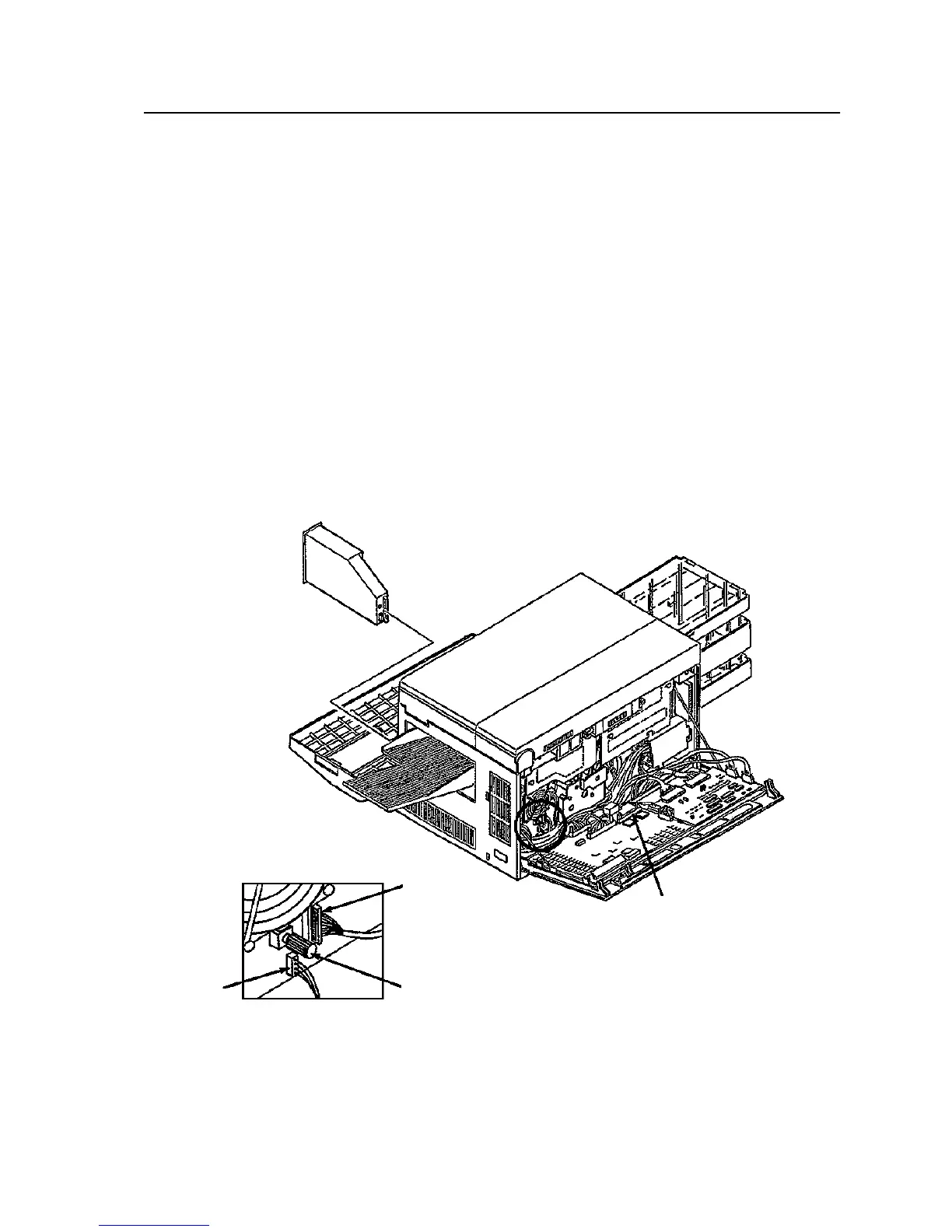

CN79
Back Detail
Thumbscrew
CN77
Hard Disk Drive
Connector
