Duplex Fan Removal
June 1999 Removal/Replacement Procedures 7-27

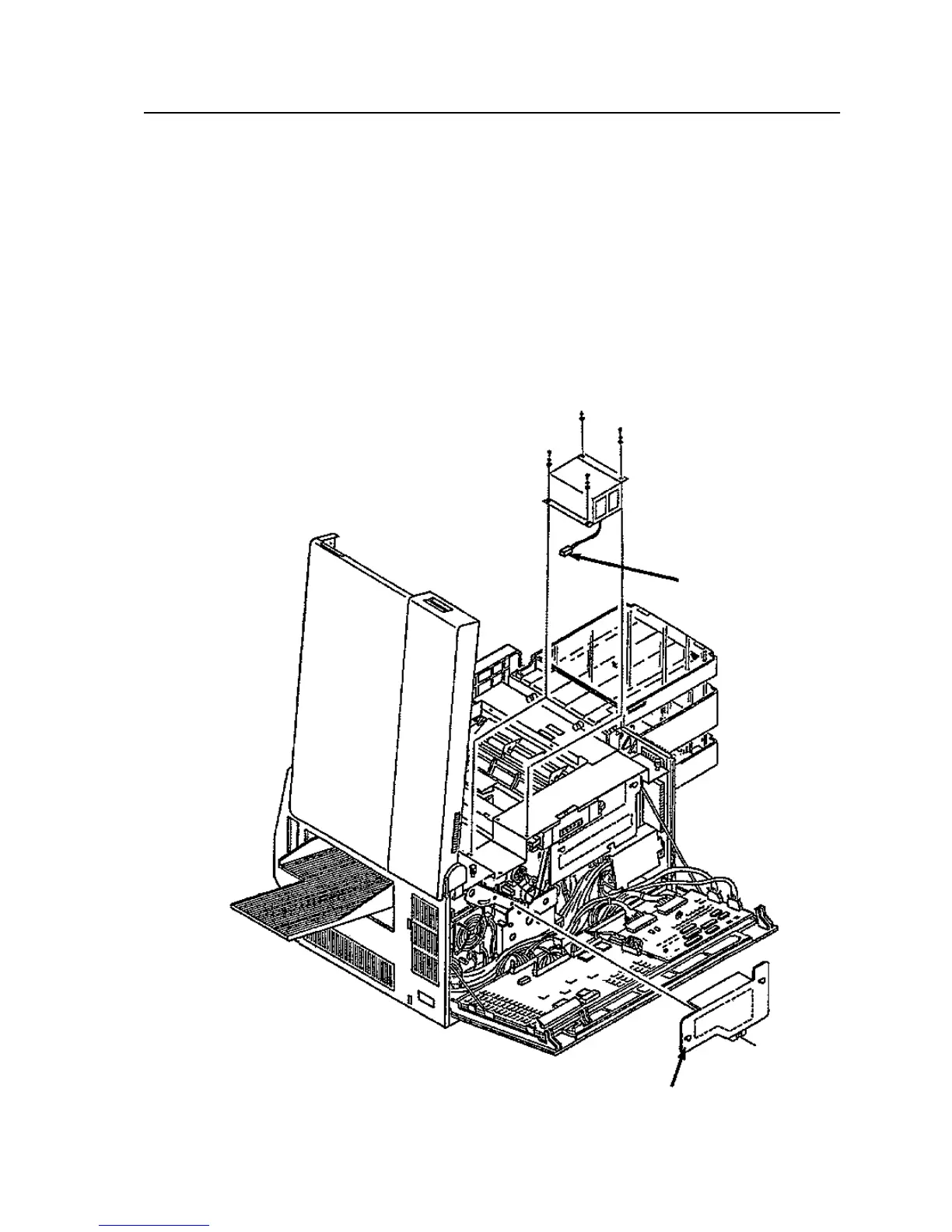

Duplex Fan Removal
To remove the duplex fan:
1 Open the back and top covers.
2 Remove the fuser drive cover (three screws).
3 Remove the EMI grounding plate (if present) from the rear of the printer (four
screws).
4 Remove the four screws holding the duplex fan in place.
5 Disconnect CN326.
6 Lift the duplex fan from the printer.
CN326
Fuser Drive Cover
To Next Page
