Exit Roller Assembly Removal
7-74 Removal/Replacement Procedures June 1999
5 Remove the fuser drive cover (three screws).
6 Remove the exit pinch roller (see page 7-69).
7 Duplex only: Remove the lower duplex drive (three screws).
8 Remove the back screw holding the exit guide in place.
9 Tilt the exit guide toward the center of the printer.
10 Remove the front C-clip and bearing.
11 Slide the exit roller out the back of the printer.
Note: Use caution so as not to damage the paper full or exit sensors.

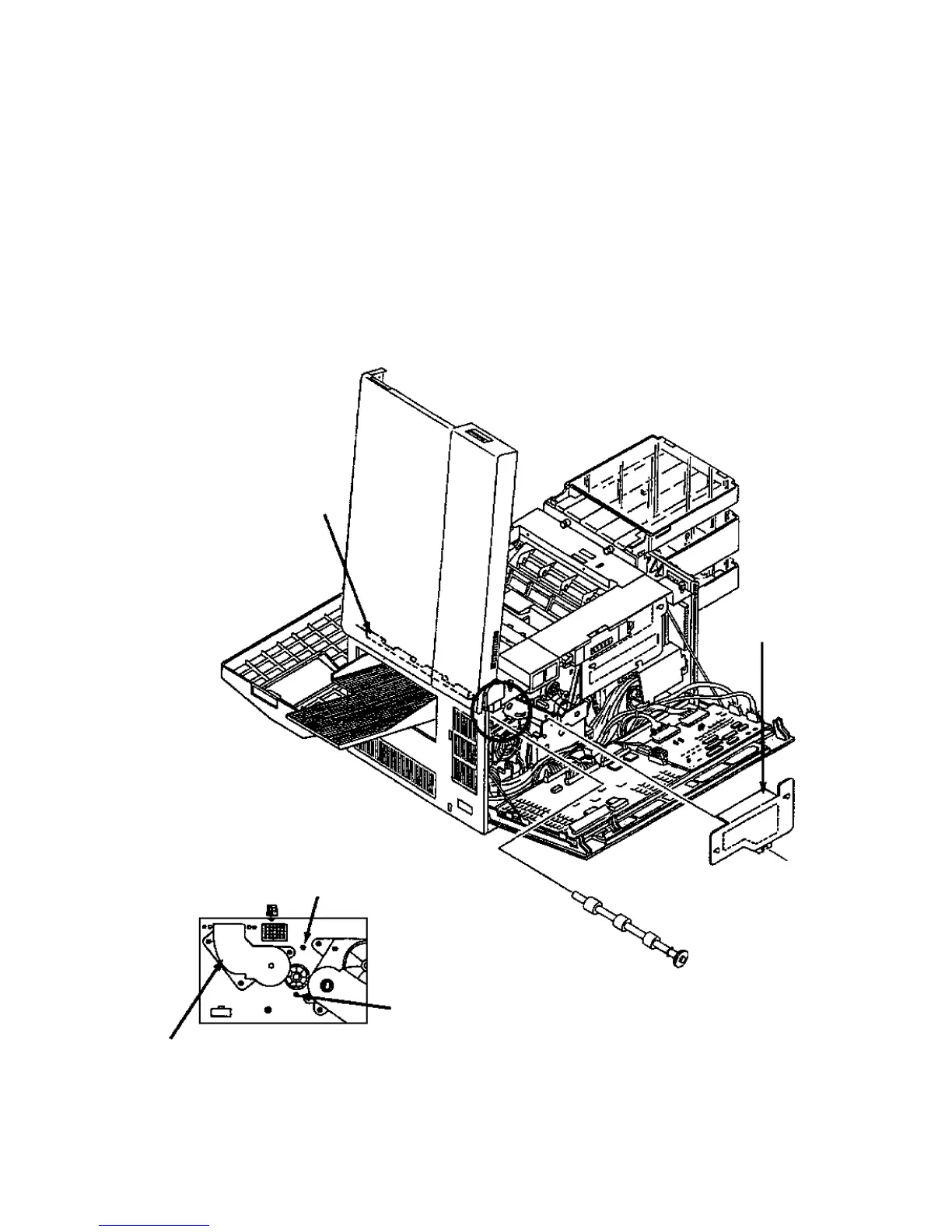

Fuser
Drive
Cover
Exit Guide
Exit Pinch Roller Screw
Exit Guide Screw
Lower Duplex Drive
(C30D only)
Back Detail
