1400-Sheet Stacker
June 1999 Options 8-9
1400-Sheet Stacker

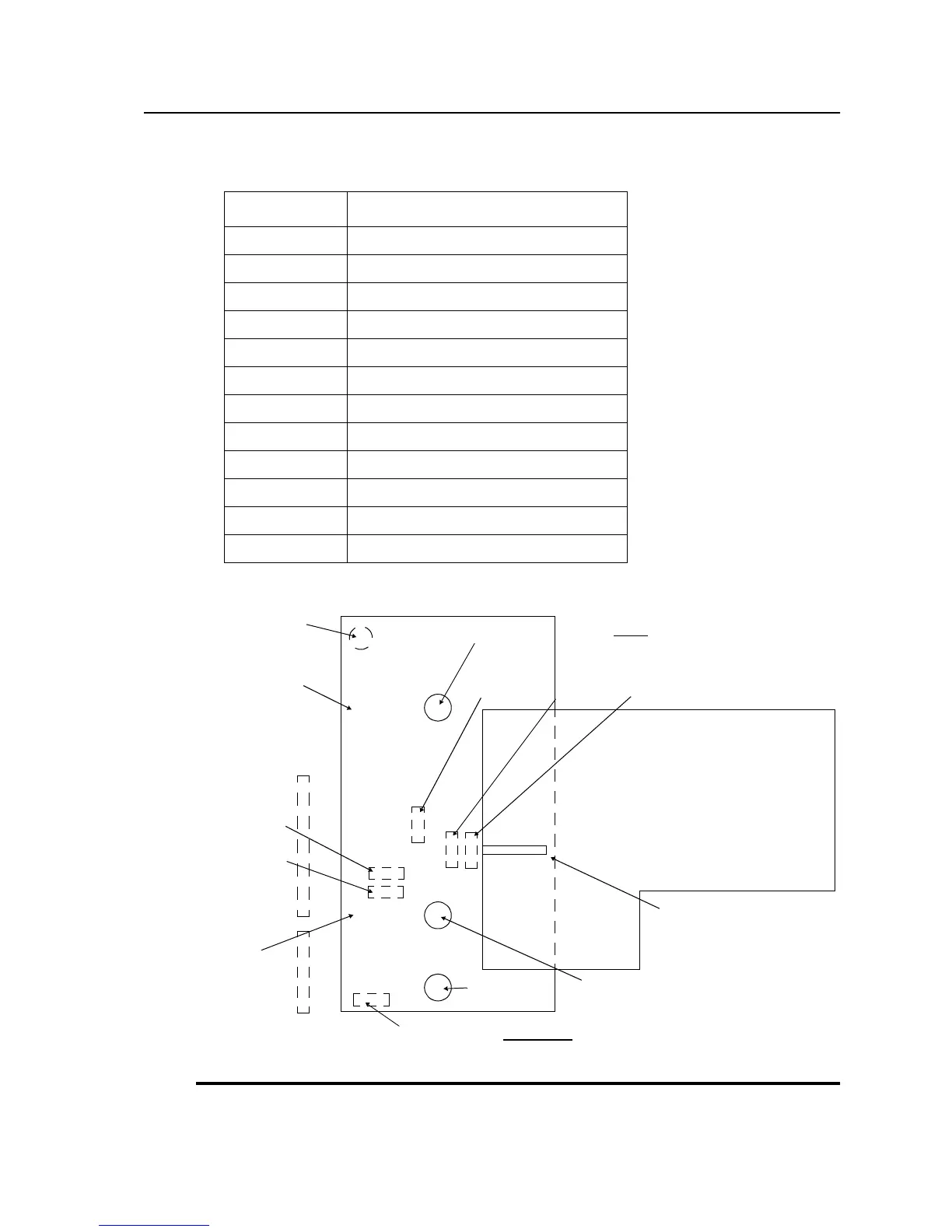

Figure 8-4. 1400-Sheet Stacker Component Locations
Table 8-3. 1400-Sheet Stacker Component Acronyms
Acronym Component
ERM Exit Roller Motor (M1)
EPS Exit Paper Sensor
ERS Exit Roller Sensor
OEM Out Elevator Motor (M2)
OELS Out Elevator Limit Sensor
OEPS Out Exit Paper Sensor
OJFM Out Jogging Front Motor (M4)
OJFS Out Jogging Front Sensor
OJRM Out Jogging Rear Motor (M3)
OJRS Out Jogging Rear Sensor
OLLS Out Lower Limit Sensor
OULS Out Upper Limit Sensor
ERM (M1)
OEM (M2)
Power
supply
Front side
OJRS
OJFS
Output
control
board
OELS
OJFM (M4)
OJRM (M3)
Paper tray
full actuator
Output tray
OULSOLLSOEPS
Rear
