HP Chromebook14 User Manual

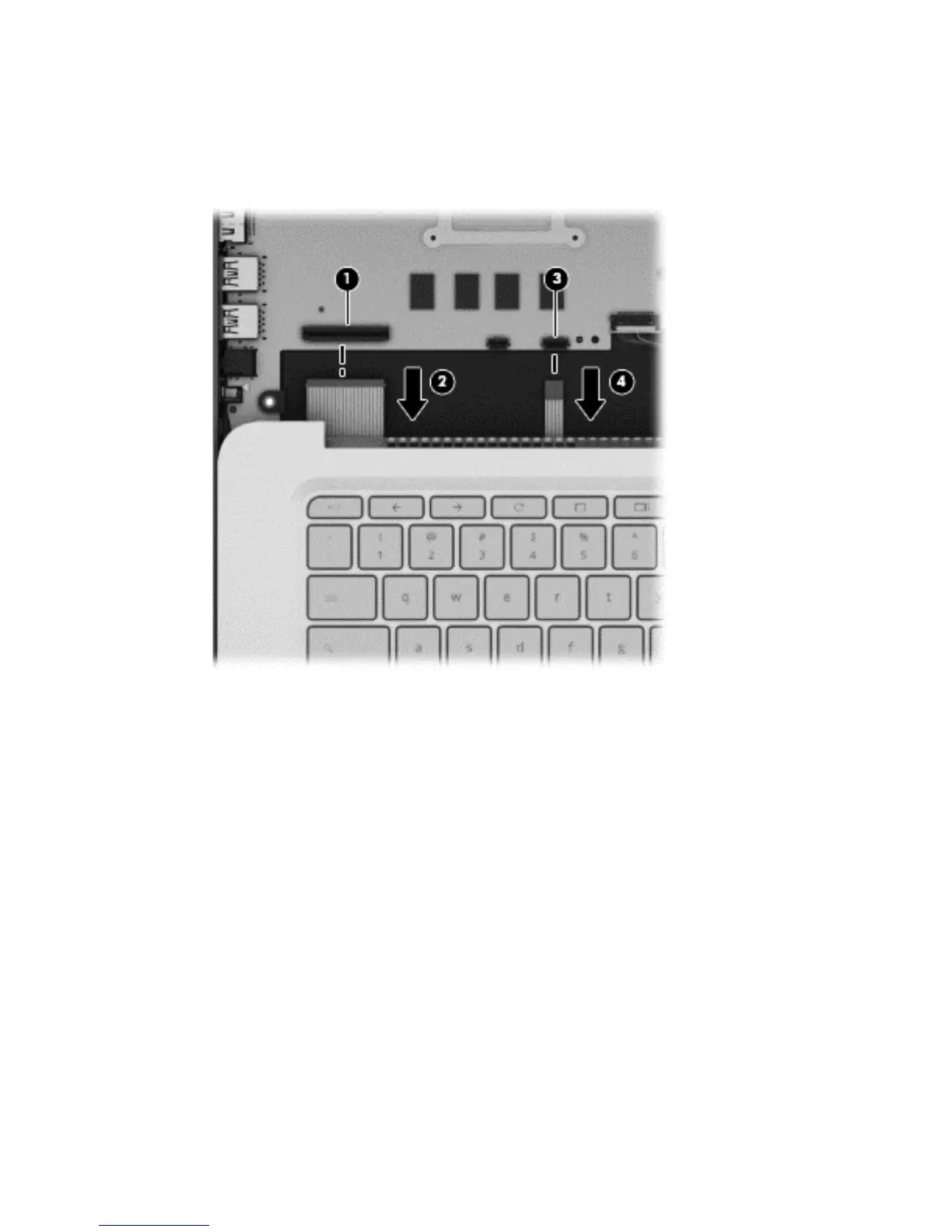

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
then disconnect the keyboard cable (2) from the system board.
8. Release the ZIF connector (3) to which the TouchPad cable is attached, and then disconnect the
TouchPad cable (4) from the system board.
9. Remove the keyboard/top cover.
Reverse this procedure to install the keyboard/top cover.
Component replacement procedures
25

HP Chromebook14 Specifications

General

Display Size	14 inches
Operating System	Chrome OS
Wireless	802.11a/b/g/n/ac
RAM	2GB
Storage	16GB eMMC
Display Resolution	1366 x 768
Bluetooth	Bluetooth 4.0
Ports	2 x USB 3.0, 1 x HDMI, 1 x Headphone/Microphone combo jack
Graphics	Intel HD Graphics
