HP Chromebook14 User Manual

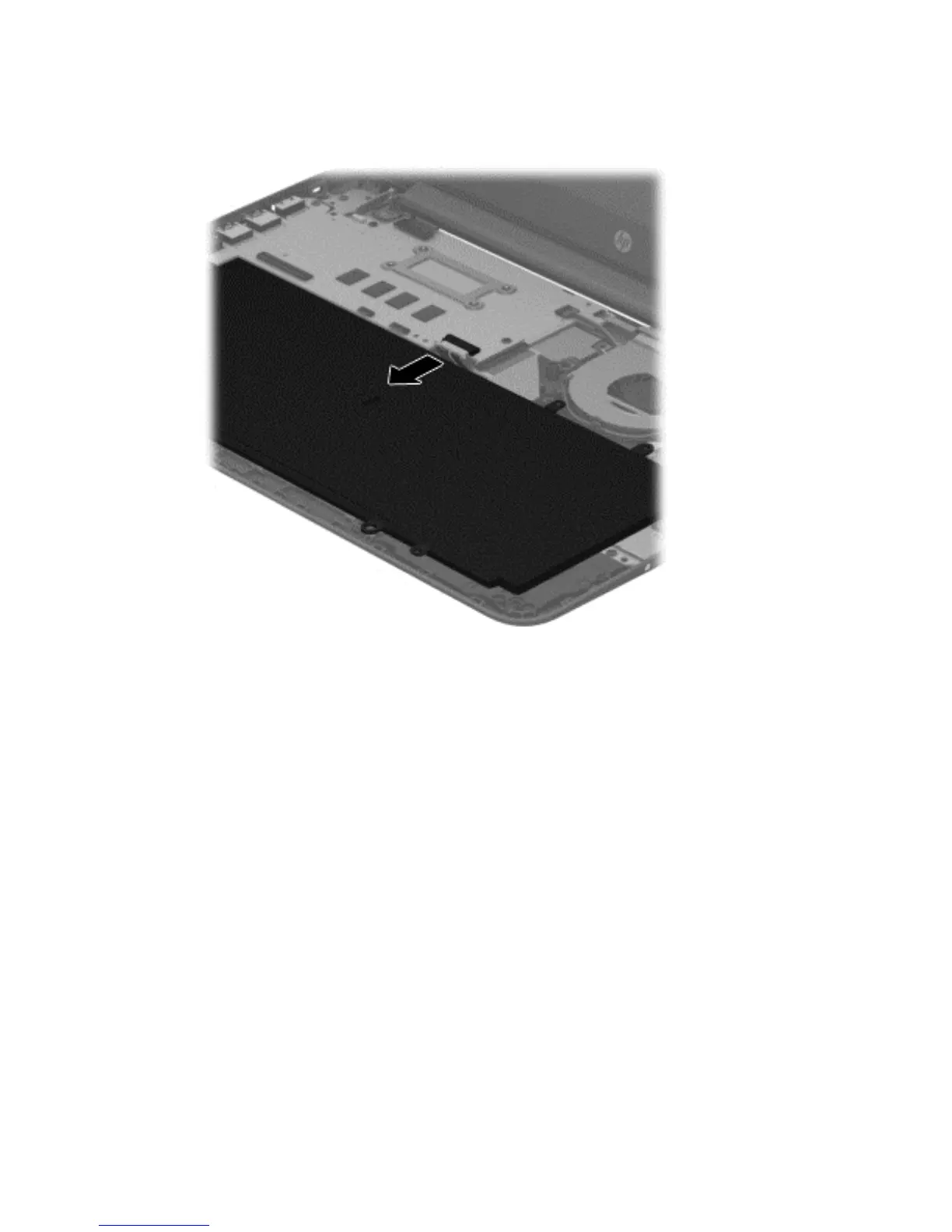

Remove the battery:
1. Disconnect the battery cable from the system board.
2. Remove the Phillips PM2.5×4.5 screw (1) that secures the battery to the base enclosure.
3. Lift the left side of the battery (2) until the battery is clear of the alignment post (3) in the middle of
the battery.
4. Release the battery (4) by sliding it to the left.
Component replacement procedures
29

HP Chromebook14 Specifications

General

Display Size	14 inches
Operating System	Chrome OS
Wireless	802.11a/b/g/n/ac
RAM	2GB
Storage	16GB eMMC
Display Resolution	1366 x 768
Bluetooth	Bluetooth 4.0
Ports	2 x USB 3.0, 1 x HDMI, 1 x Headphone/Microphone combo jack
Graphics	Intel HD Graphics
