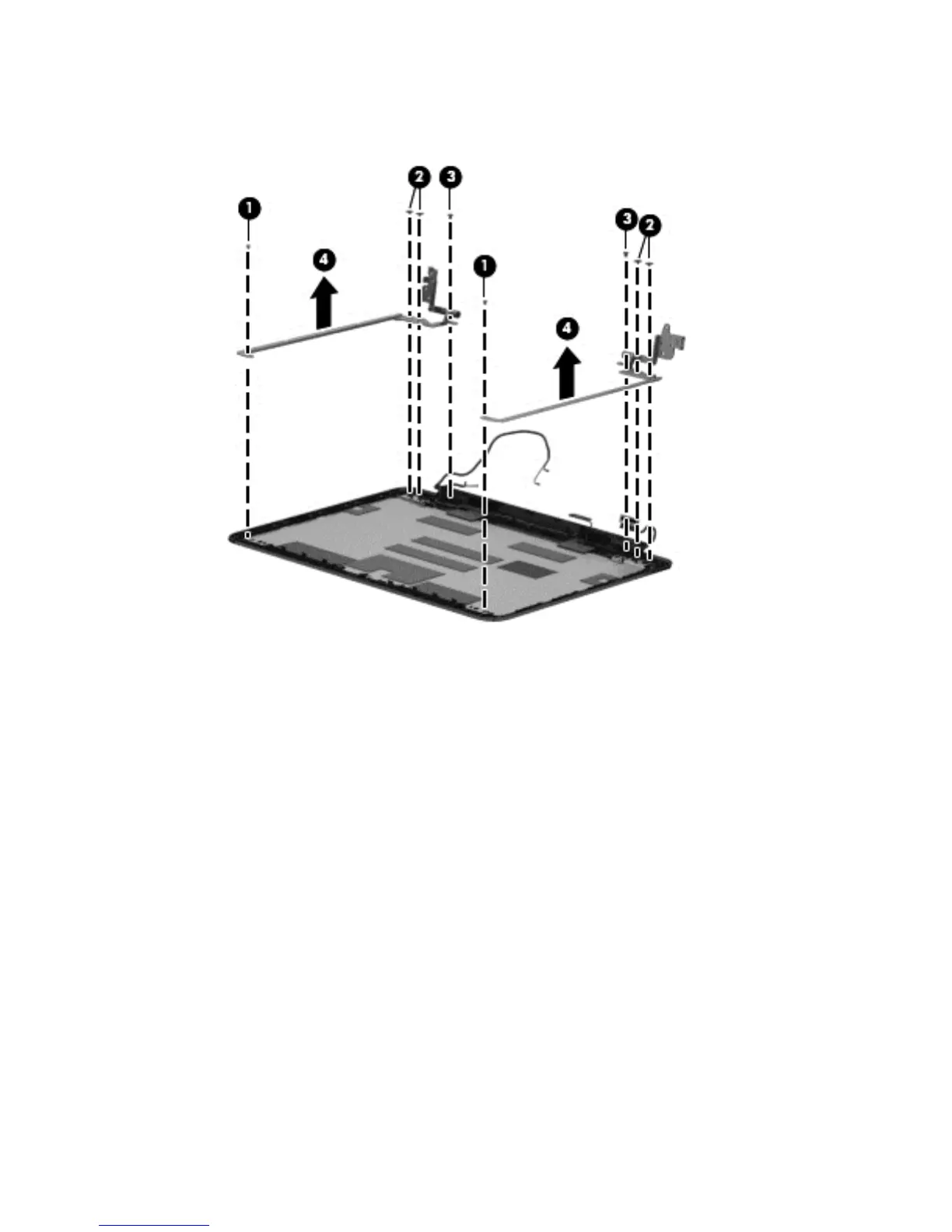

b. Remove the display hinges (4).
The display hinges are included in the Display Hinge Kit, spare part number 740147-001.
12. If it is necessary to replace the WLAN antenna cables and transceivers:
a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided adhesive.)
b. Release the WLAN antenna cables (2) from the routing clips built into the bottom edge of the
display enclosure.
48 Chapter 4 Removal and replacement procedures preliminary requirements
