C7085-90921 Chapter 6 Removal and replacement 199
Face-down assembly
To remove the face-down assembly
1 Remove the top cover.
2 Remove the left side cover.
3 Remove the rear door.
4 Remove the left side fan.
5 Disconnect the bin full sensor shown in callout 1, Figure 6-62, and free the cable from the cable
stay.
6 Remove the three screws from the face-down assembly shown in callouts 2 and 3, Figure 6-62.
7 With your right hand, lift up slightly on the assembly to release the tab. Then, pull the assembly
out with your right hand while pushing the assembly to your right to release the plastic tab on
your left.
Replacement tip
Note the position of the black shoulder screw and metal bracket shown in callout 3, Figure 6-62.

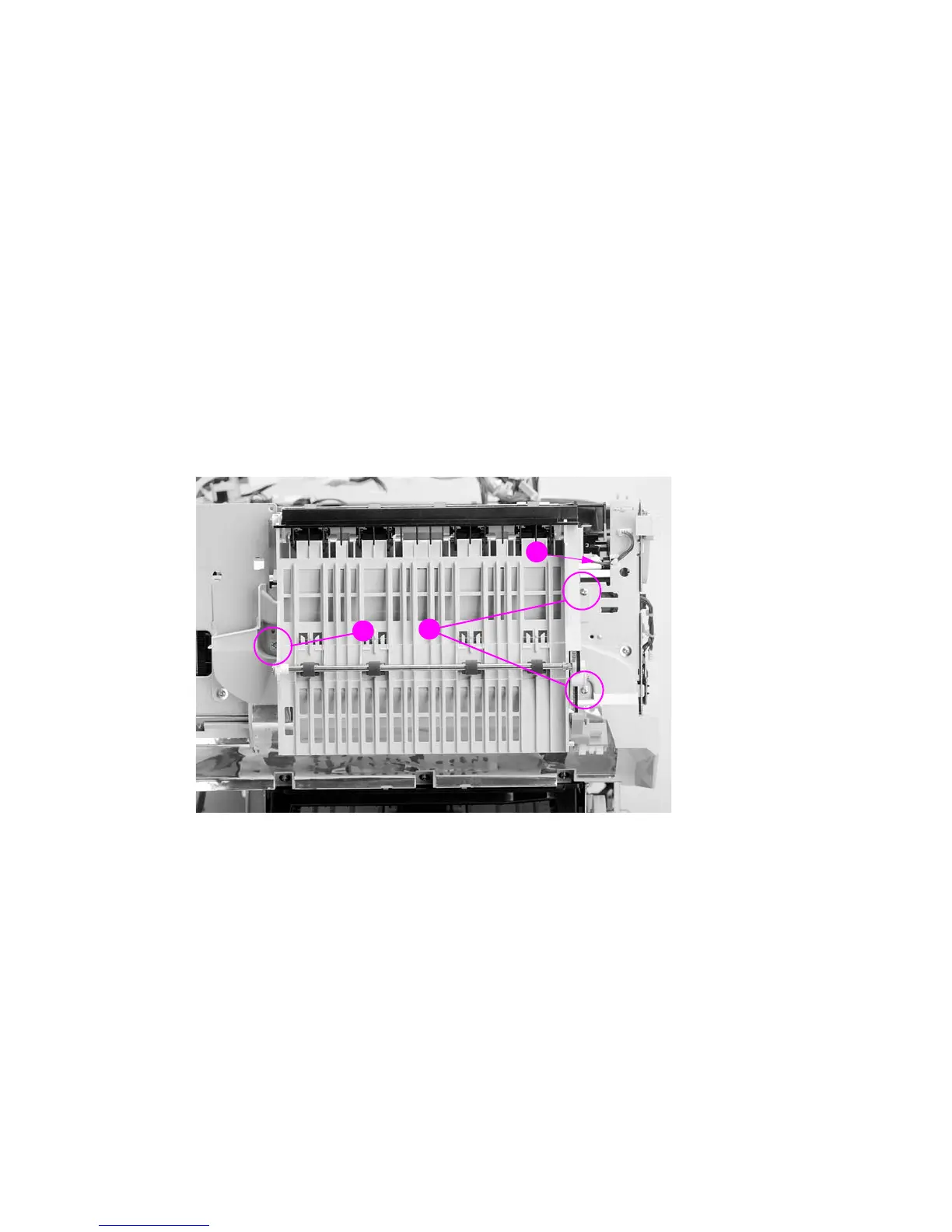

Figure 6-62 Rear paper path assembly removal and replacement
1
2
3
