26 Printer description C7085-90921

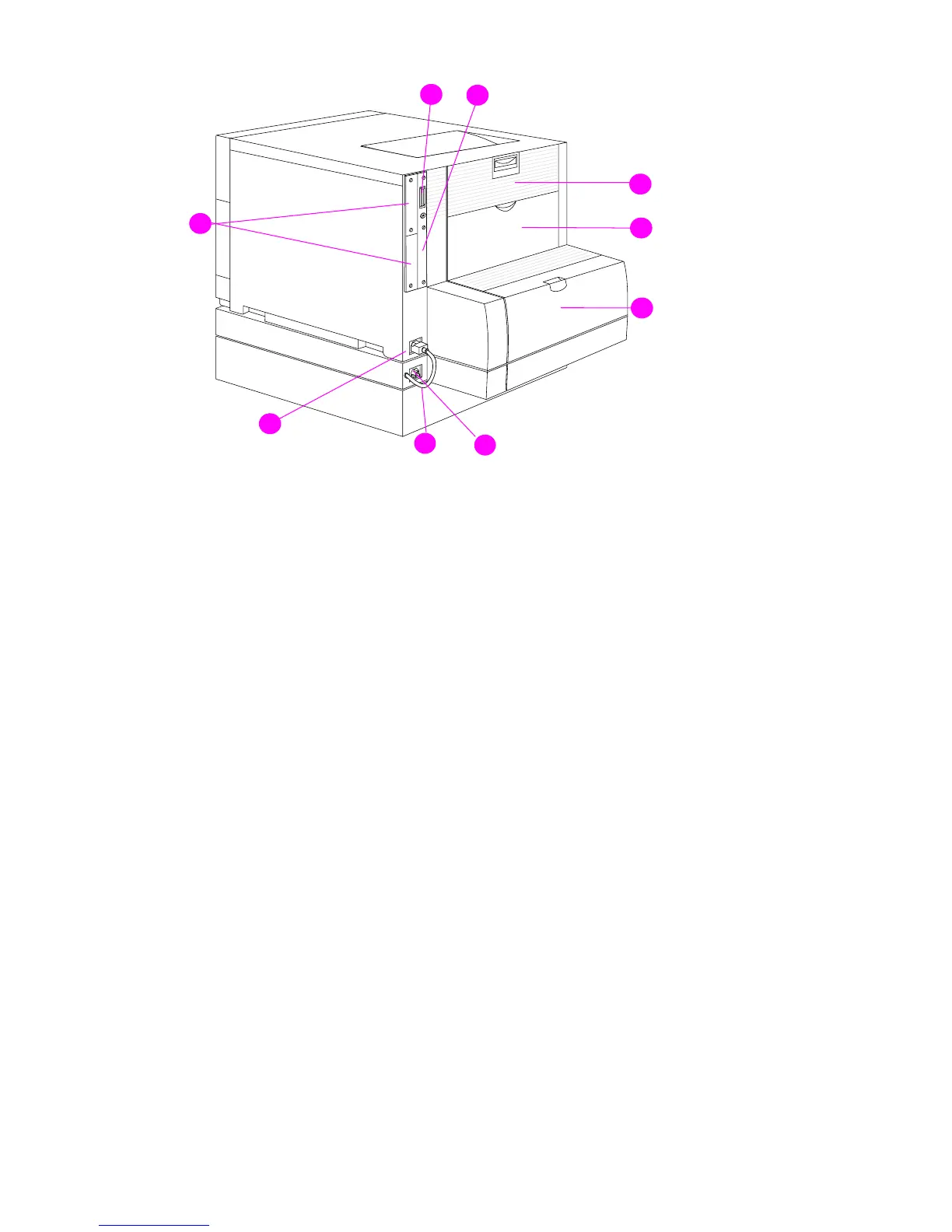

Figure 1-7 Rear view, HP Color LaserJet 4500 (shown with 500-sheet paper feeder and duplex unit)
1 Rear door (fuser access)
2 Rear output bin door
3 Cover for duplex unit
4 Power receptacle for duplex unit
5 Duplex unit power cord to the printer
6 Printer power receptacle
7 EIO slots
8 Parallel connector (“C” connector)
9 Memory access
1
2
3
4
6
7
8
9
5
