C7085-90921 Chapter 4 Printer maintenance 95

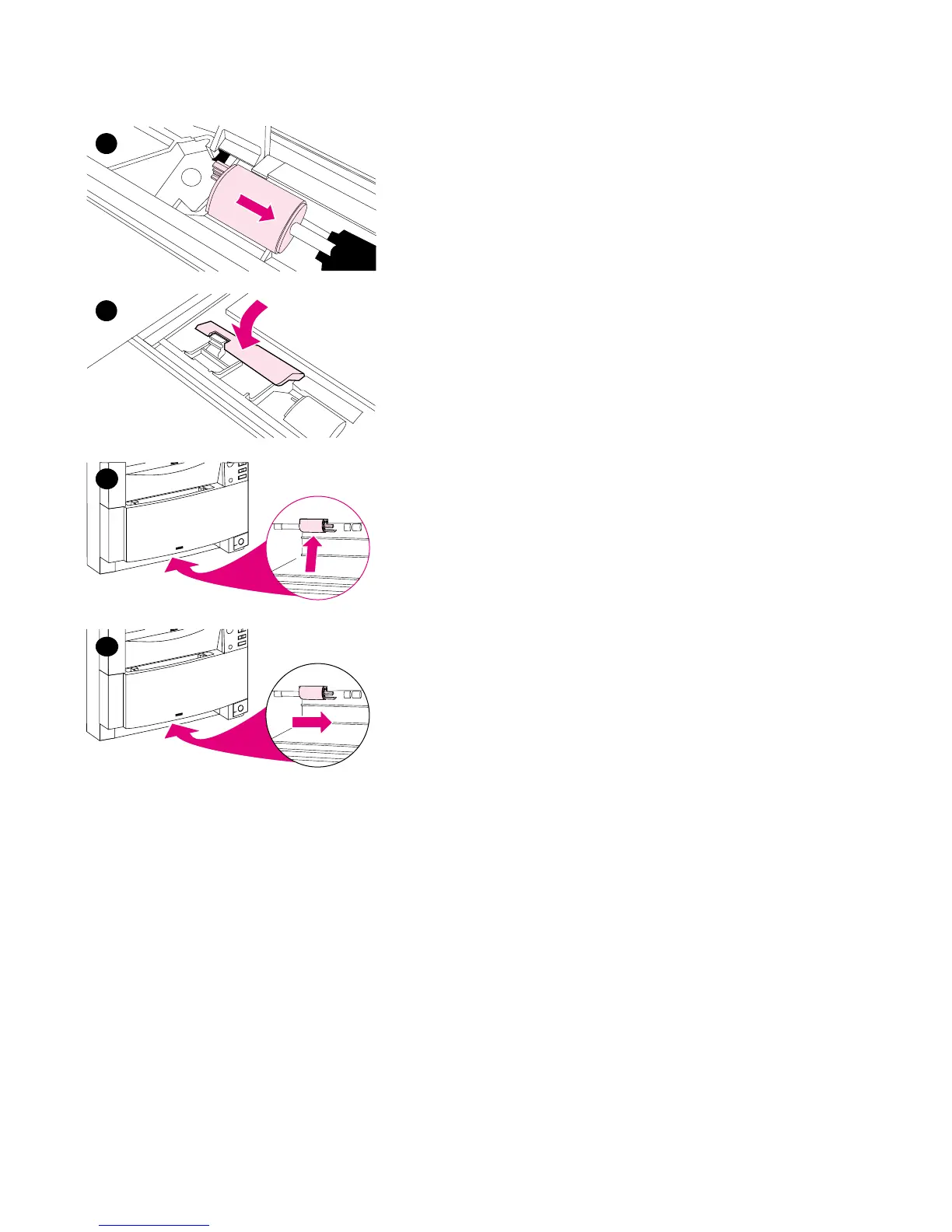

5 Install a new paper roller on Tray 2. Slide the new roller onto the
spindle until the roller clicks into place.
6 Close the cover.
7 Inside the tray cavity on the printer, locate the paper roller in the top
of the tray cavity.
8 Squeeze the blue tabs on the roller and remove the old paper roller
from the tray cavity.
5
6
7
8
