2. Disconnect all of the FFCs and wire-harness connectors from the formatter PCA.
●
FFCs
◦
HP Color LaserJet CP1210 Series Printer: J1 and J2
◦
HP Color LaserJet CP1510 Series Printer: J2 and J5
●
Wire-harness connectors
◦
HP Color LaserJet CP1210 Series Printer: J4
◦
HP Color LaserJet CP1510 Series Printer: J1 and P4

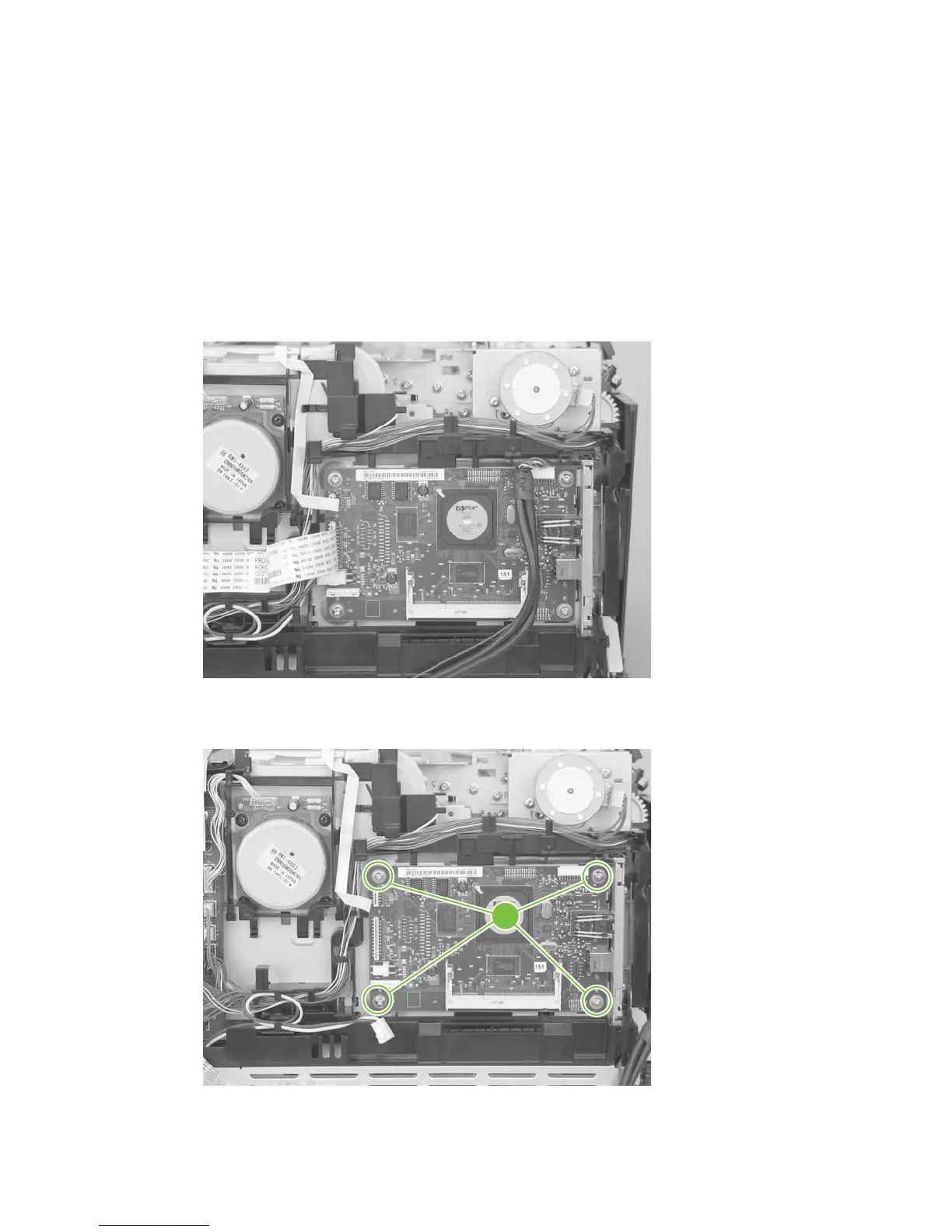

Figure 6-62 Remove the formatter PCA (1 of 2)
3. Remove four screws (callout 1), and then remove the formatter PCA.
Figure 6-63 Remove the formatter PCA (2 of 2)
1
ENWW Internal assemblies 135
