3. Disconnect one wire-harness connector (callout 3) and release the wire harness from the retainer
(callout 4).
TIP: It might be easier to release one tab, and then remove the retainer from the product chassis.

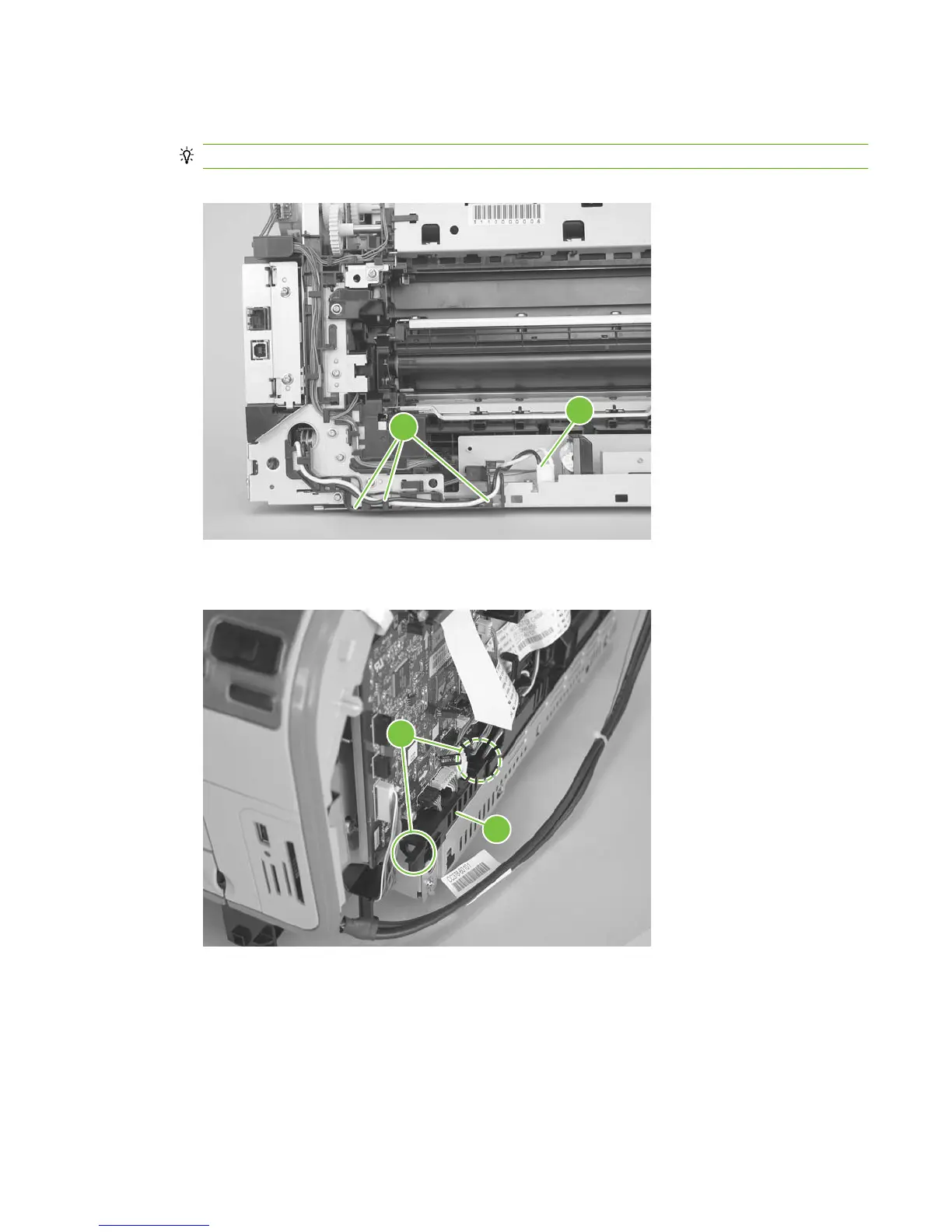

Figure 6-71 Remove the power supply (low-voltage; 2 of 10)
3
4
4. Release two tabs (callout 5), and then remove the protective cover (callout 6).
Figure 6-72 Remove the power supply (low-voltage; 3 of 10)
5
6
ENWW Internal assemblies 141
