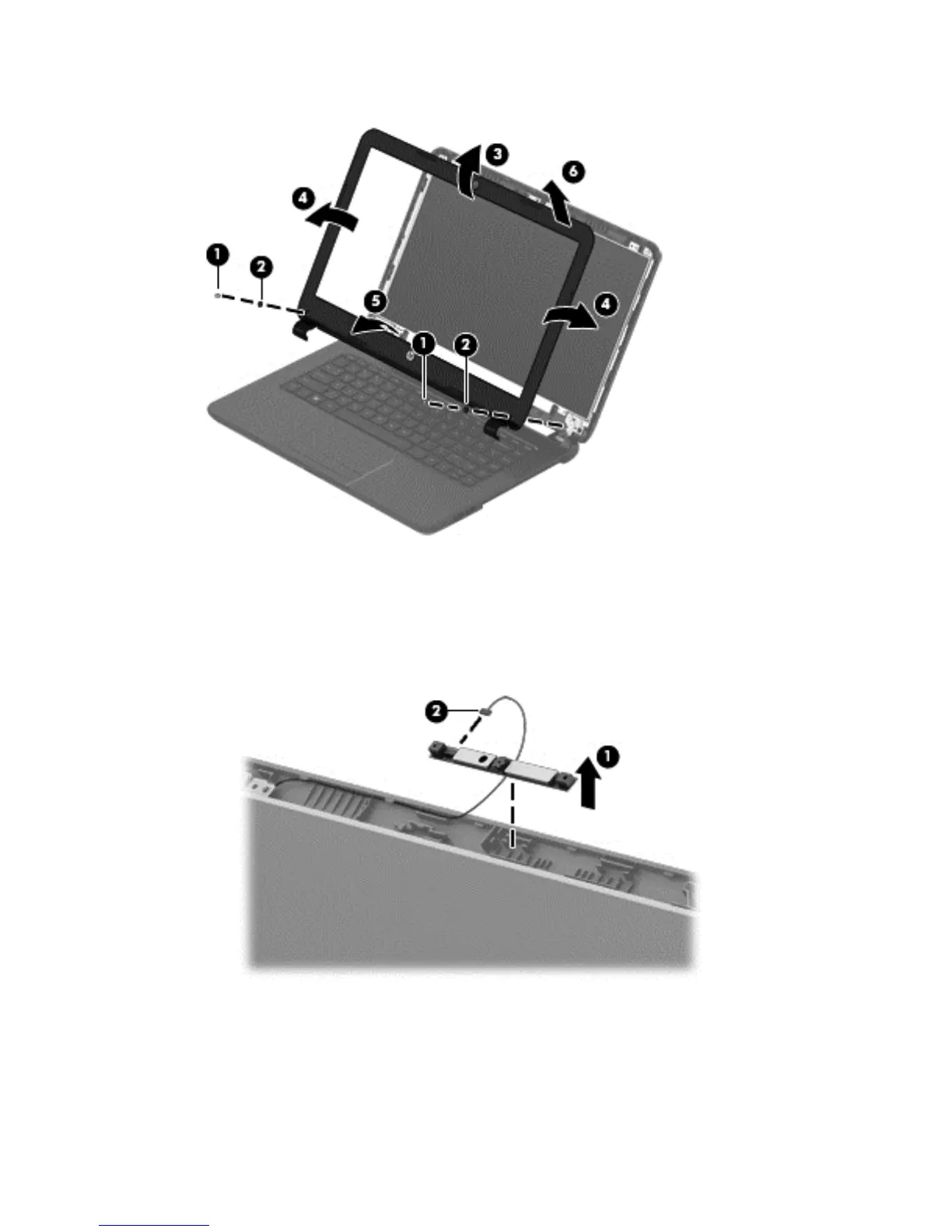

4. Remove the display bezel.
5. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift to disengage the adhesive that secures the webcam/microphone module to the display, and
then lift the module enough to access the cable connection on the module (1).
c. Disconnect the cable (2) from the module.
6. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the enclosure.
Component replacement procedures 51
