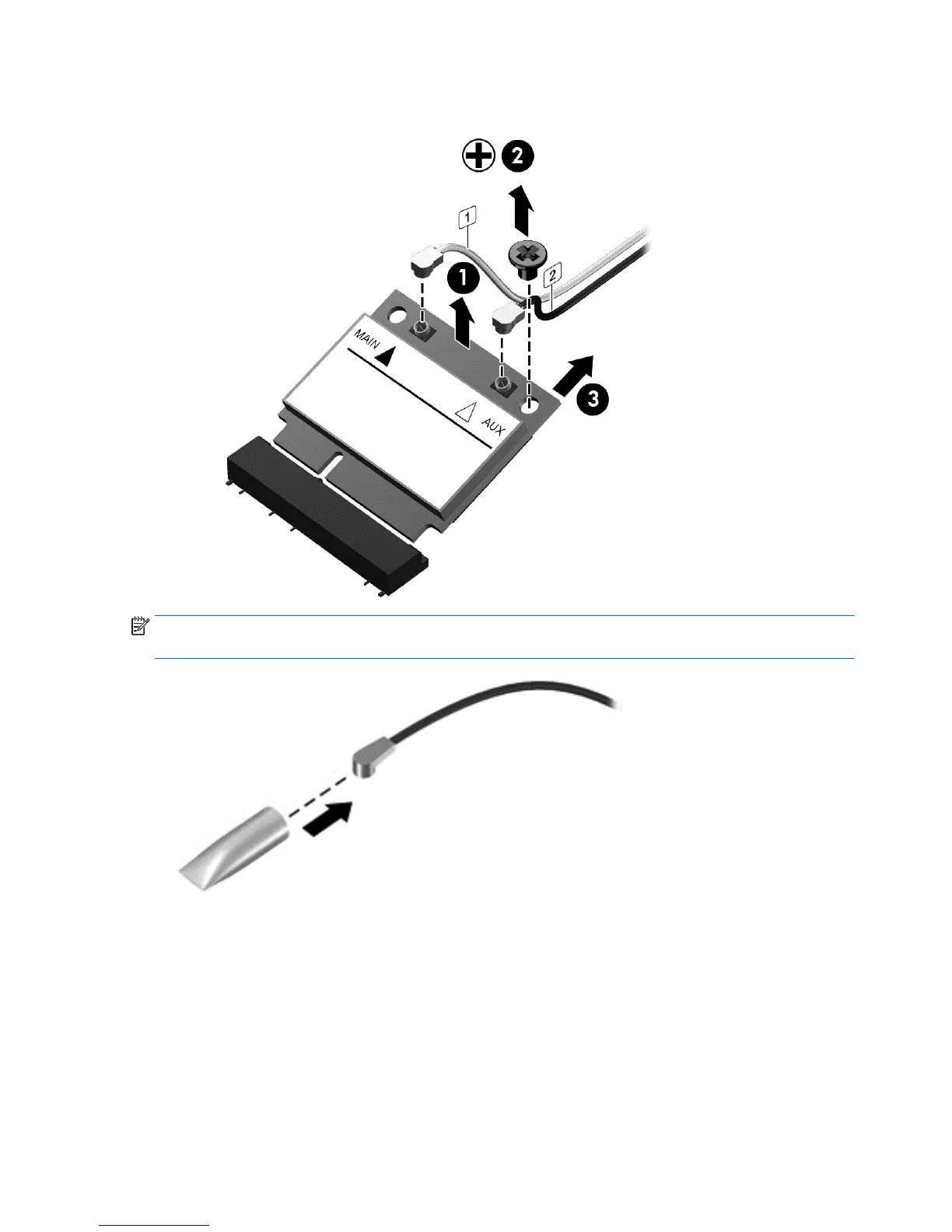

3. Remove the WLAN module by pulling the module away from the connector (3).
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
72 Chapter 4 Removal and replacement procedures
