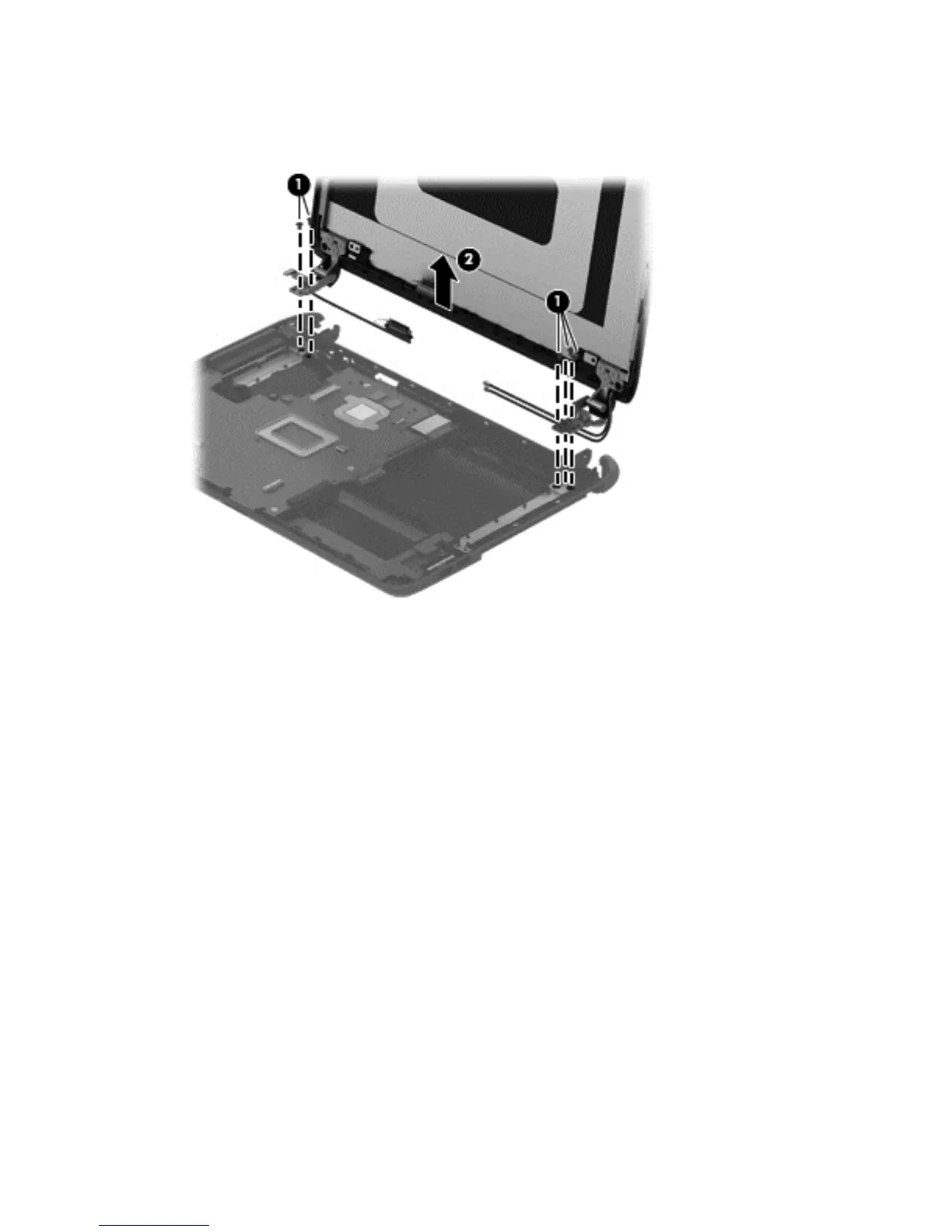

3. Remove the six Phillips PM2.5×4.0 screws (1) (three from each hinge) that secure the display assembly
to the computer.
4. Remove the display assembly (2).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display bezel:
a. Remove the two Mylar covers (1) and two Phillips PM2.0×3.0 screws (2) that secure the bezel to
the display.
b. Flex the inside of the top edge (3), the left and right sides (4), and the bottom edge (5) of the
display bezel until the bezel disengages from the display enclosure.
78 Chapter 4 Removal and replacement procedures
