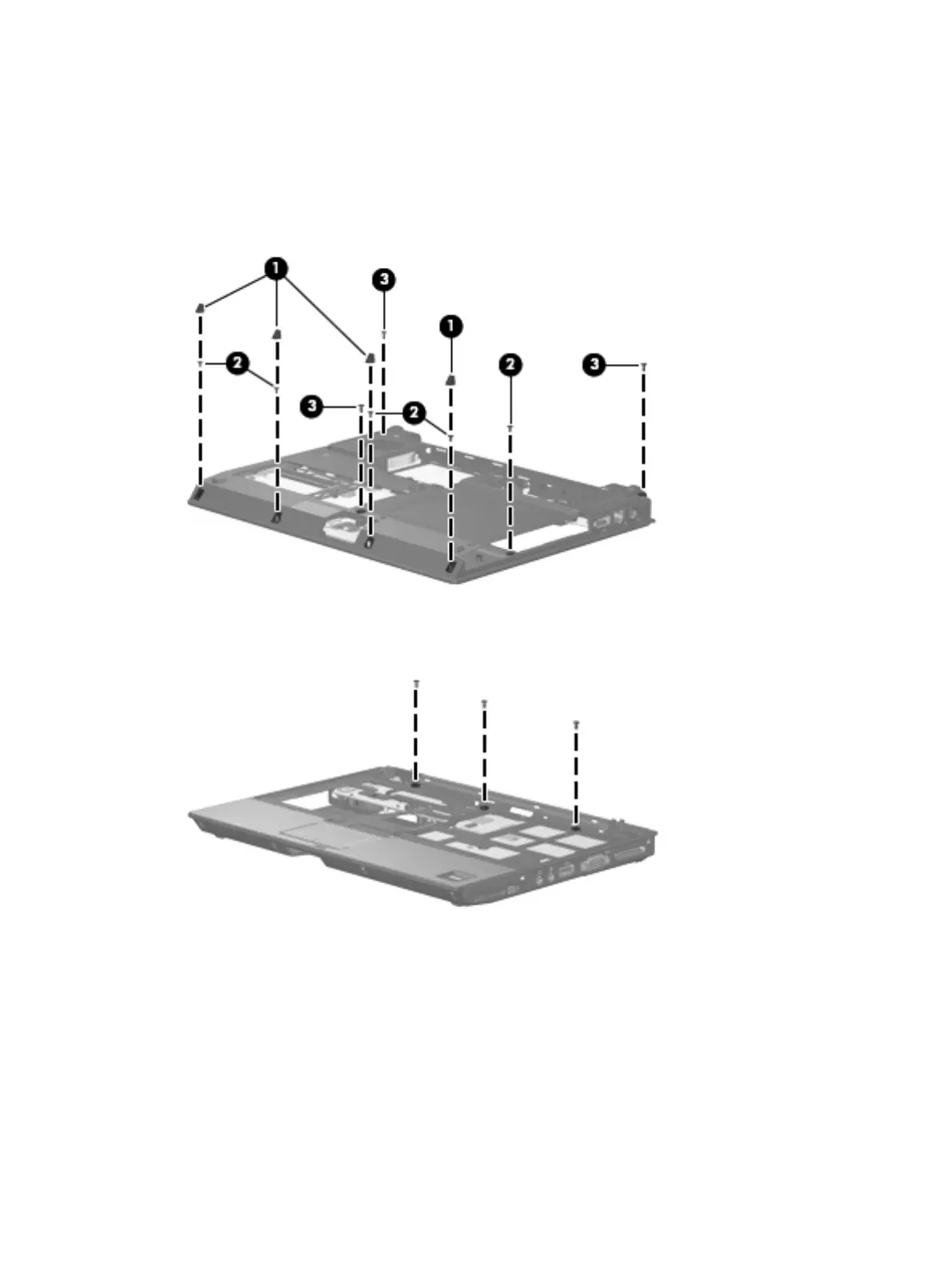

2. Remove the following:
(1) Four base enclosure rubber screw covers. The base enclosure rubber screw covers are
included in the Rubber Kit, spare part number 451744-001.
(2) Five Torx T8M2.5×4.0 screws.
(3) Three Torx T8M2.5×7.0 screw.
3. Turn the computer right-side up, with the front toward you.
4. Remove the three Torx T8M2.5×7.0 screws that secure the top cover to the computer.
68 Chapter 4 Removal and replacement procedures
