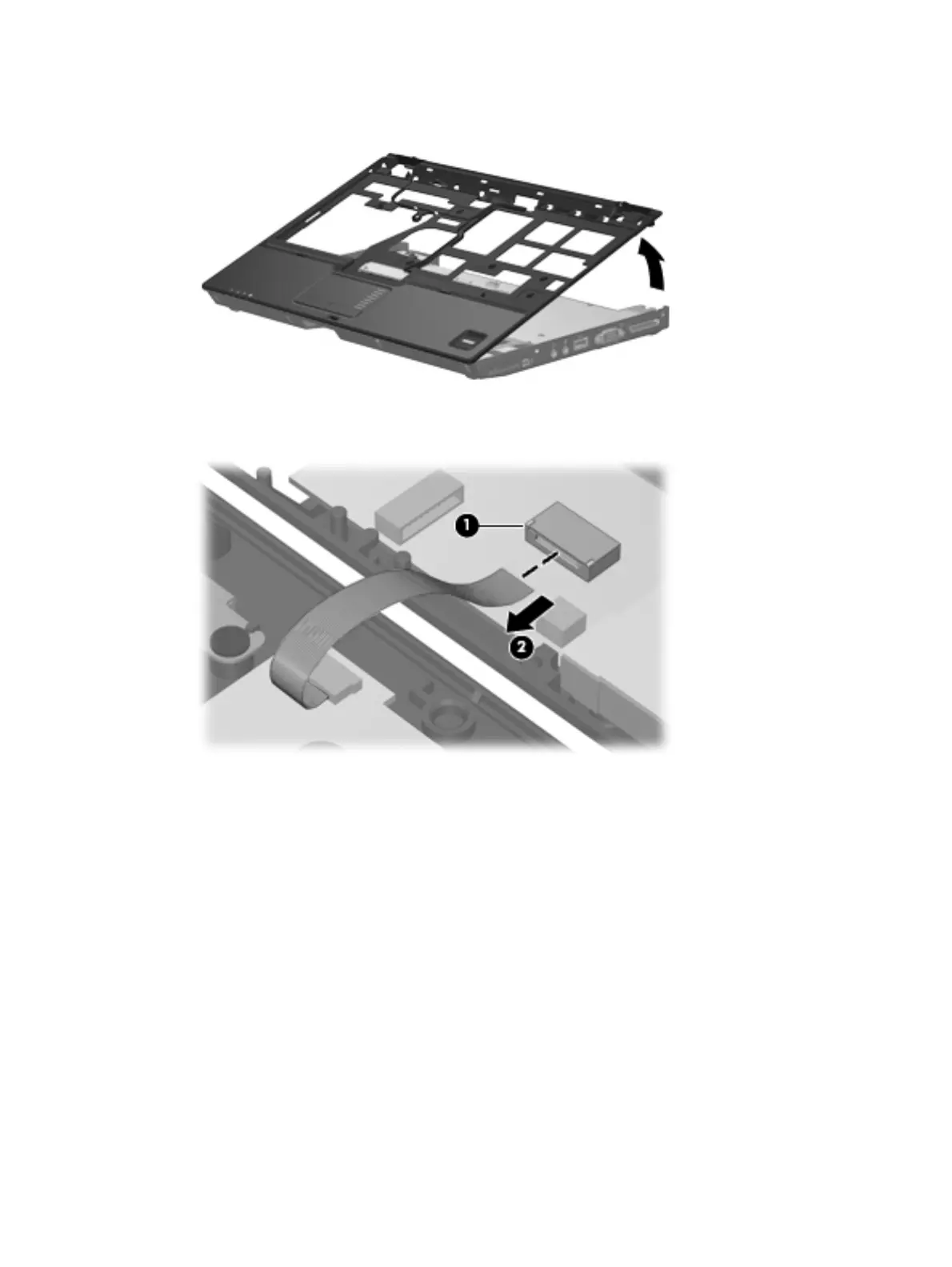

5. Lift the rear edge of the top cover and swing it up and forward until the top cover rests upside
down in front of the base enclosure.
6. Release the ZIF connector (1) to which the fingerprint reader board cable is connected and
disconnect the fingerprint reader board cable (2) from the system board.
7. Remove the top cover.
Reverse this procedure to install the top cover.
