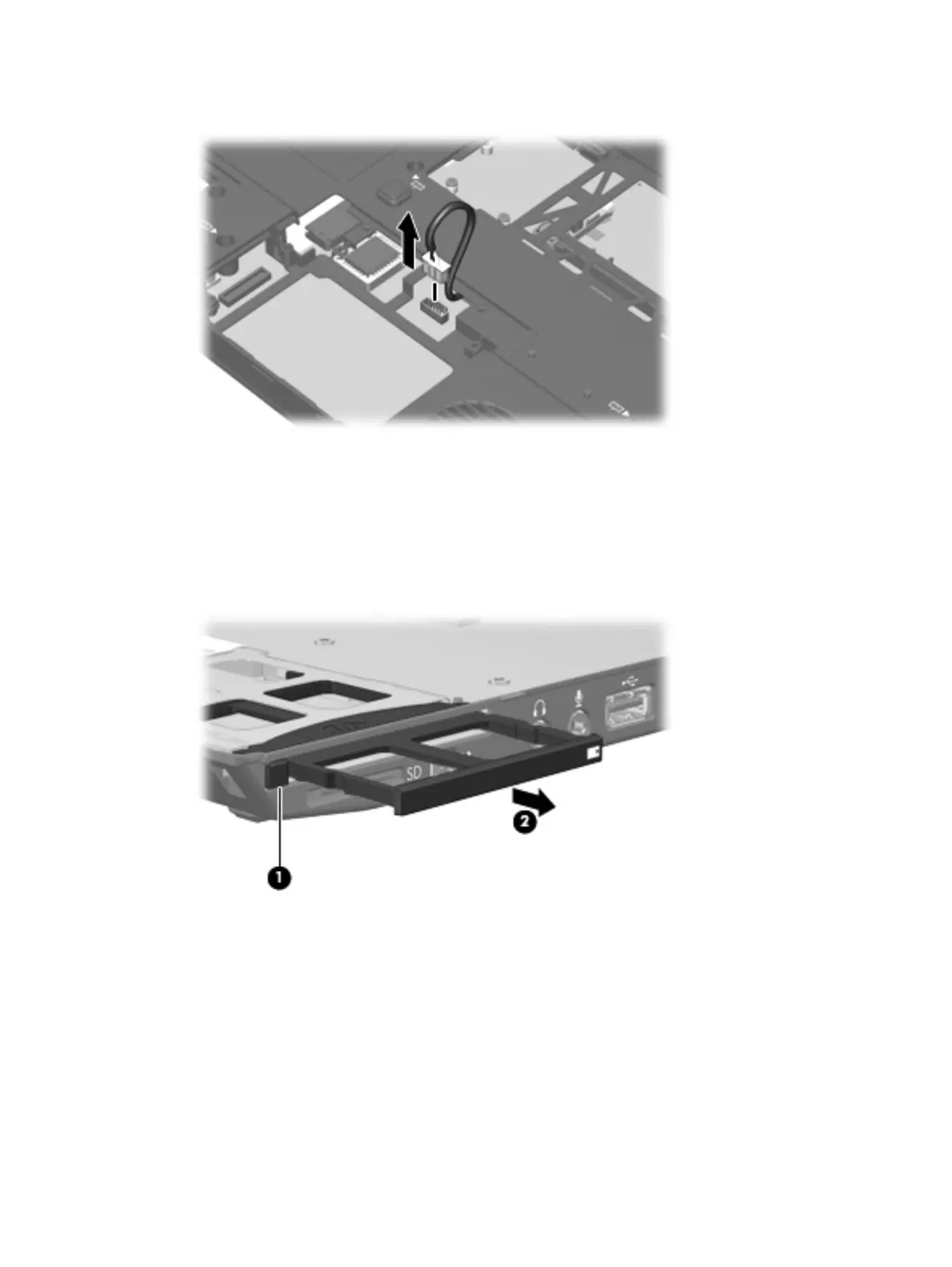

2. Disconnect the fan cable from the system board.
3. Turn the computer right-side up, with the front toward you.
4. Press the PC Card eject button (1) twice. The first press releases the PC Card eject button from
the PC Card slot. The second press releases the PC Card slot bezel from the PC Card slot. (The
PC Card slot bezel is partially ejected from the PC Card slot.) The PC Card slot bezel is included
in the Plastics Kit, spare part number 451743-001.
5. Remove the PC Card slot bezel (2).
Component replacement procedures 71
