9. Rotate the slot cover retention latch back in place to secure the expansion card.

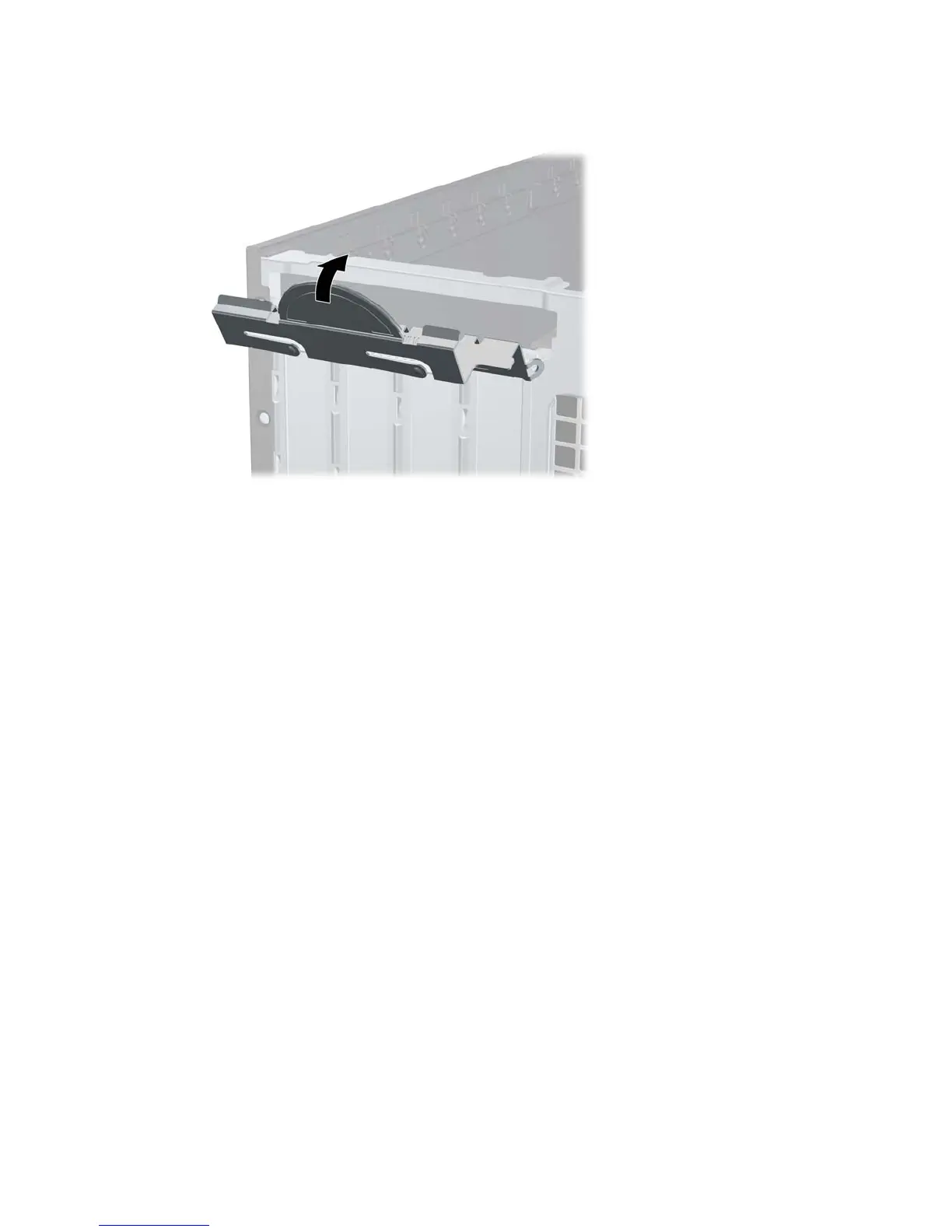

Figure 9-13 Closing the Expansion Slot Retainer
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
132 Chapter 9 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
