HP Compaq 6005 Pro Business PC

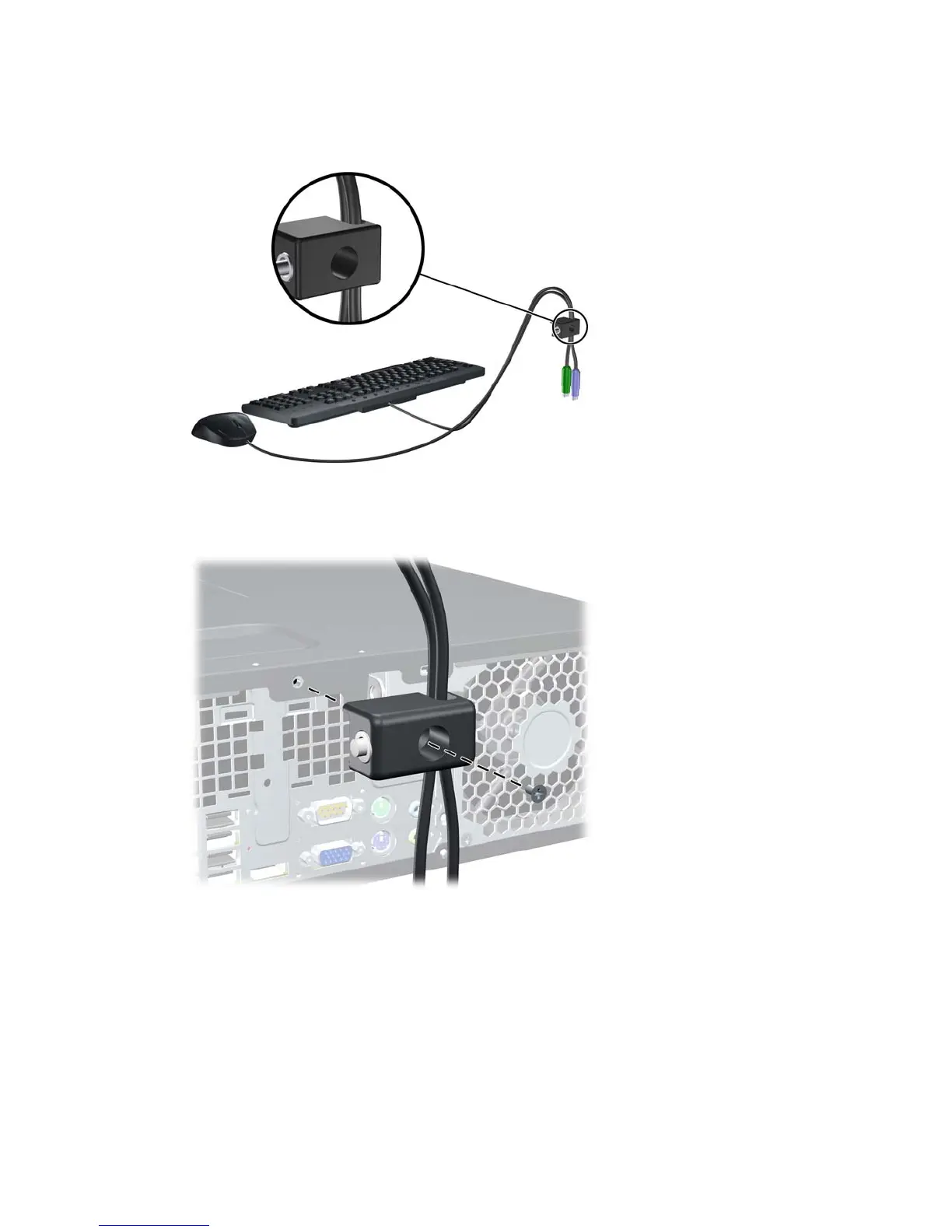

2. Thread the keyboard and mouse cables through the lock.
Figure 9-61 Threading the Keyboard and Mouse Cables
3. Screw the lock to the chassis using the screw provided.
Figure 9-62 Attaching the Lock to the Chassis
170 Chapter 9 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
