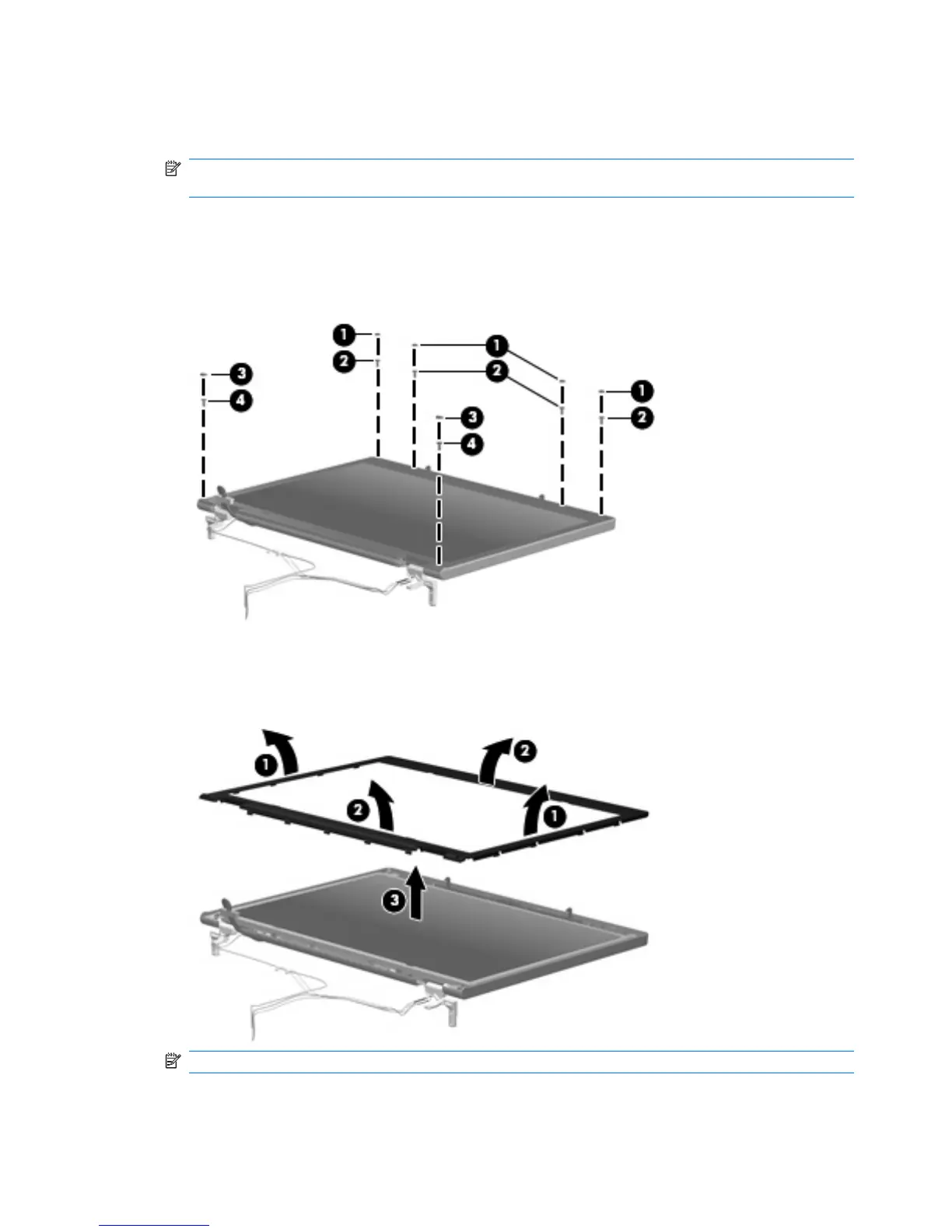

7. If it is necessary to replace the display hinges, remove the following:
(1) Four rubber screw covers from the display bezel top edge
NOTE: The display bezel rubber screw covers are included in the Plastics Kit, spare part number
44305-001.
(2) Four Torx T8M2.5×6.0 screws from the display bezel top edge
(3) Two rubber screw covers from the display bezel bottom edge
(4) Two Torx T8M2.5×7.0 screws from the display bezel top edge
8. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display
bezel until the bezel disengages from the display enclosure.
9. Remove the display bezel (3).
NOTE: The display bezel is available using spare part number 447205-001.
78 Chapter 4 Removal and replacement procedures
