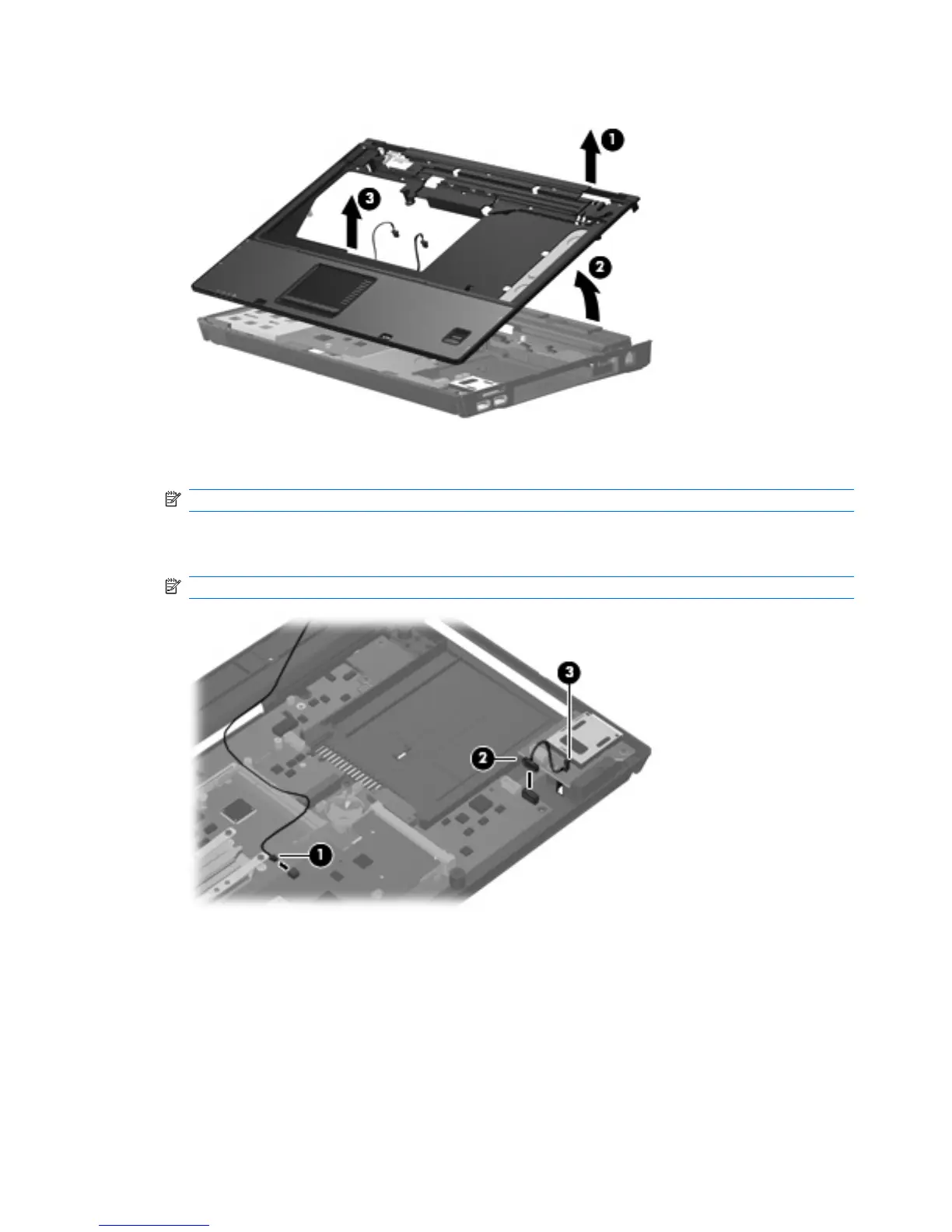

11. Remove the top cover (3) by lifting it straight up.
12. If it is necessary to replace the microphone and cable, disconnect the microphone cable (1) from
the PC Card/audio board and remove it.
NOTE: The microphone is available in the Cable Kit, spare part number 443887-001.
13. If it is necessary to replace the Bluetooth module cable, disconnect the cable (2) from the system
board and remove the cable from the opening (3) in the base enclosure.
NOTE: The Bluetooth module cable is available in the Cable Kit, spare part number 443887-001.
82 Chapter 4 Removal and replacement procedures
