4. Remove the battery (see Battery on page 46).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 50)
b. Memory/WLAN module compartment cover (see
Expansion memory module on page 54)
c. Optical drive (see
Optical drive on page 60)
d. Keyboard (see
Keyboard on page 62)
e. Switch cover (see
Switch cover on page 68)
f. Display assembly (see
Display assembly on page 75)
g. Top cover (see
Top cover on page 79)

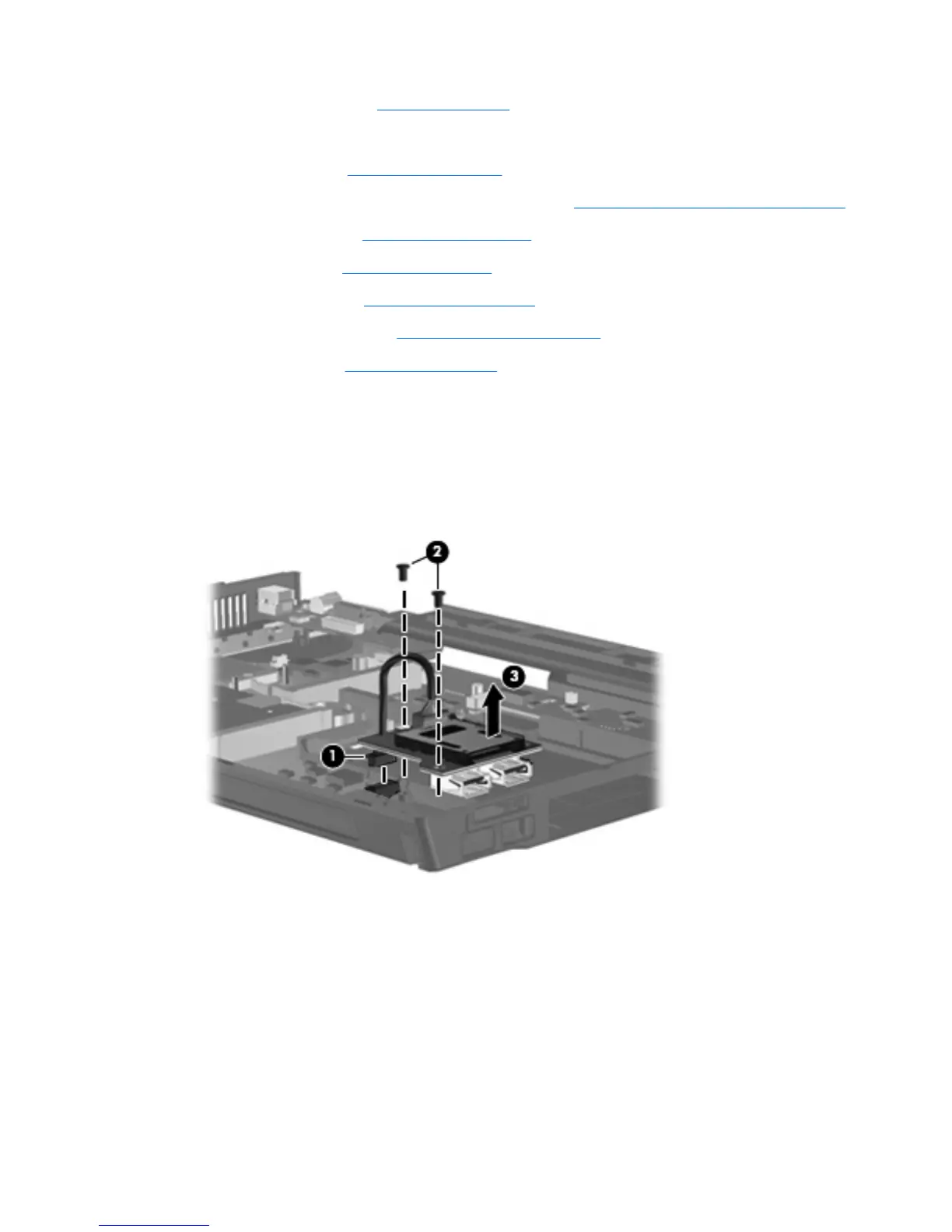

Remove the Media Card Reader/USB connector board:
1. Disconnect the Media Card Reader/USB connector board cable (1) from the system board.
2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the Media Card Reader/USB connector
board to the computer.
3. Lift the Media Card Reader/USB connector board (3) straight up and remove it.
Reverse this procedure to install the Media Card Reader/USB connector board.
Component replacement procedures 85
