f. Top cover (see Top cover on page 81)
g. Rear cover (see
Rear cover on page 93)

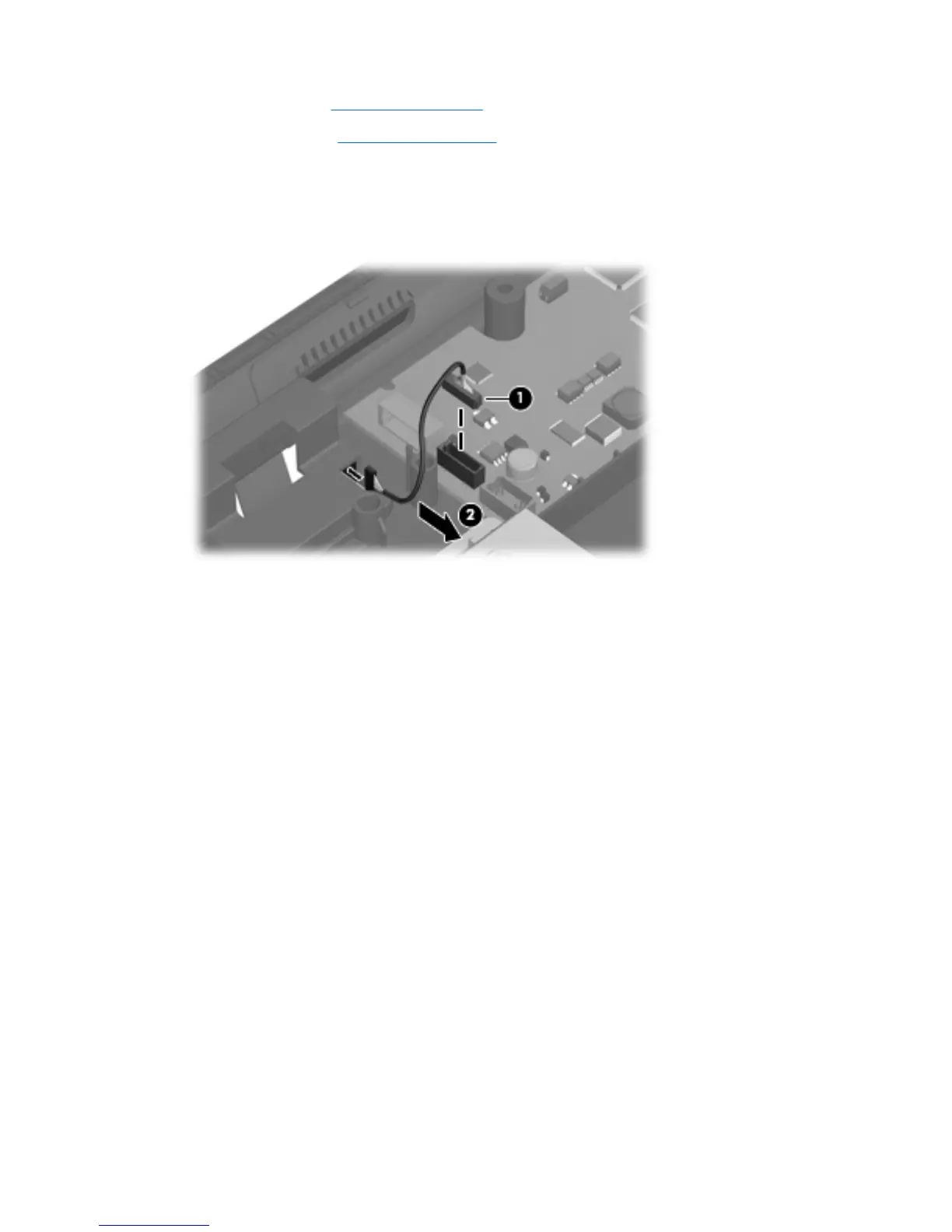

Remove the Bluetooth module cable:
1. Disconnect the Bluetooth module cable (1) from the system board.
2. Remove the Bluetooth module cable (2) from the opening built into the base enclosure.
3. Remove the Bluetooth module cable.
Reverse this procedure to install the Bluetooth module cable.
98 Chapter 4 Removal and replacement procedures
